| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO9001 |
| Model Number: | All-weld Heat Exchanger |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 weeks |
| Supply Ability: | 100 Units Per Month |
| Warranty: | 1 Year | Maximum Working Pressure: | 3.0MPa |
|---|---|---|---|
| Condition: | New | Application: | Cooling,HVAC / Food / Marine And Ect,Heat Transfer,liquid To Liquid And Liquid To Vapor,Heating Or Cooling |
| Type: | Plate Heat Exchanger | ||
| High Light: | heat transfer plate heat exchanger,steam shell and tube heat exchanger |
||

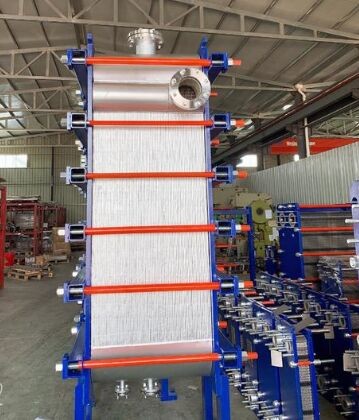

Evaporating Concentrator All-welded Plate Heat Exchanger Stainless Steel for Chemicals Industry
All-welded plate heat exchanger is a kind of plate type heat exchangers that can endure high temperature and high pressure. Highest temperature 400°C, pressure 3.5Mpa. Relying on application practices, Fully welded plate heat exchangers are applied in oil and gas industry, refinery applications, pharmaceutical industry, chemical/petrochemical industry.
Function: the heat exchanger is the equipment that transfers the heat of the hot fluid to the cold fluid, also known as the heat exchanger. Its main function is to ensure the specific temperature required by the process to the medium.
It can transfer heat between two or more fluids at different temperatures and more than two kinds of fluid, so that the heat transfer from higher temperature to the lower temperature fluid, so that the fluid temperature reaches the specified index of the process to meet the needs of the process conditions, and the heat exchanger is one of the main equipment to improve the energy utilization.
Performance features
1. Unequal section design for heating and air conditioning
2. Compression molding technology
3. Hanging point design
Advantages Compared with tubular heat exchanger
Compared with tubular heat exchanger and gasketed plate type heat exchanger, weleded plate heat exchanger has the advantages:
Material of plates and the application
| 304 stainless steel | This is the lowest cost heat transfer plate material. It has a low corrosion resistance and is usually only available in a thickness of 0.4mm. This type of heat transfer plate is typically used on HVAC applications. |
| 316 stainless steel | This is the most common heat transfer plate material and is used in many applications. 316 stainless steel has a high corrosion resistance and is typically available in thickness from 0.4mm up to 0.8mm. |
| Titanium | This has a very high resistance to chemical attack including most acids, chlorides,sea water,and chlorine chemicals. Titanium is usually available in thicknesses from 0.5mm up to 0.6mm. |
| Hastelloy C276 | Other common names: Alloy C276, Hastelloy C, Inconel® C-276 Hastelloy C-276. Hastelloy C276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments.Alloy C-276 is widely used in the most severe environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas. Thickness available from 0.6mm to 0.8mm. |
Introduction of plate heat exchanger manufacturer:
