Warranty: | 1 Year | Maximum Working Pressure: | 3.0MPa |
---|---|---|---|
Condition: | New | Application: | Cooling,HVAC / Food / Marine And Ect,Heat Transfer,liquid To Liquid And Liquid To Vapor,Heating Or Cooling |
Type: | Plate Heat Exchanger | ||
High Light: | heat transfer plate heat exchanger,plate shell heat exchanger |

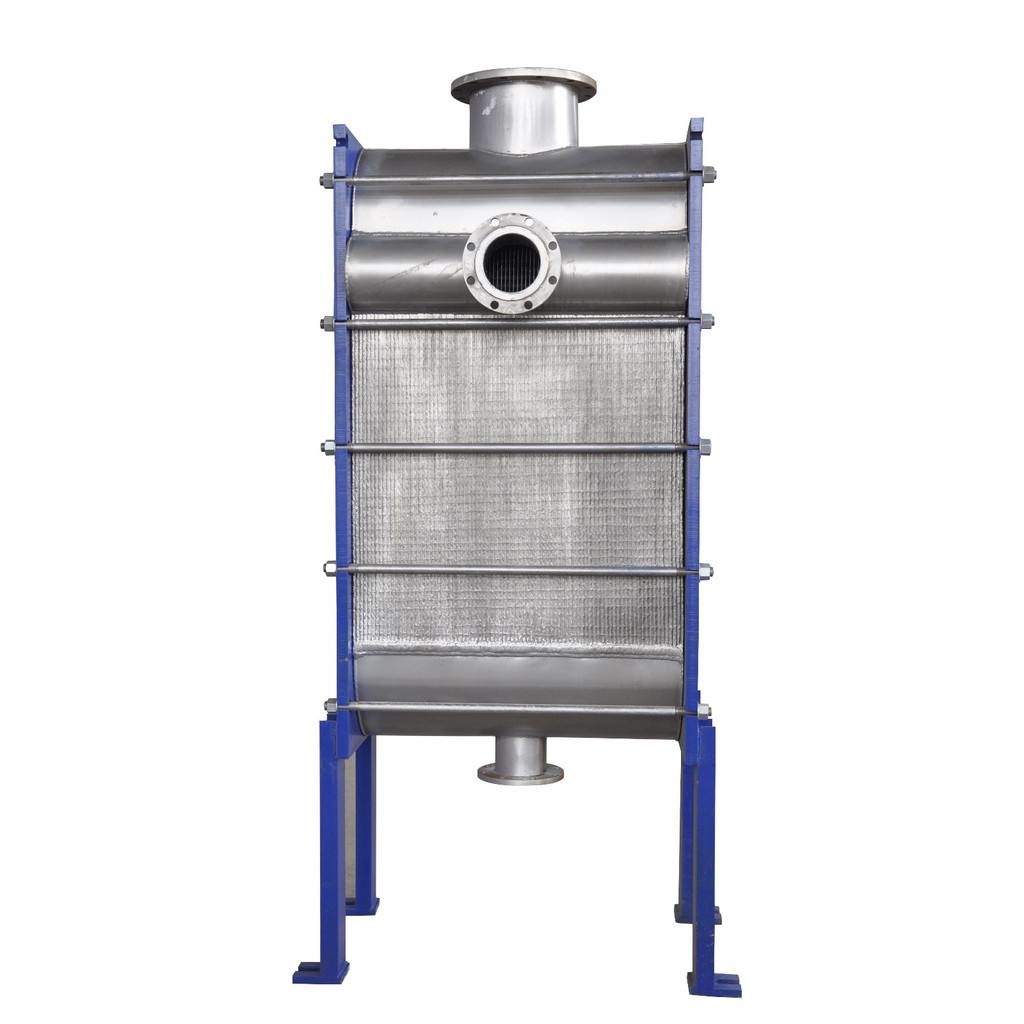

Evaporating Concentrator All-welded Plate Heat Exchanger Stainless Steel for Chemicals Industry
All-welded plate heat exchanger is a kind of plate type heat exchangers that can endure high temperature and high pressure. Highest temperature 400°C, pressure 3.5Mpa. Relying on application practices, Fully welded plate heat exchangers are applied in oil and gas industry, refinery applications, pharmaceutical industry, chemical/petrochemical industry.
The indirect plate cooling design means air is not used in the cooling process. Installed capital costs are reduced due to the elimination of costly and unnecessary air handling equipment such as large diameter air ducting,motors, fans, scrubbers, chillers, and emissions controls.
Compact & Modular-Adding Future Capacity is Easy
The vertical configuration makes this design both compact and modular. The clever modular design means that additional heat exchanger plate banks can be stacked if increased cooling capacity is required in the future.The compact installation footprint makes this design easy to integrate in existing plants and is ideal for de-bottlenecking, revamps and capacity increases.
E.Uniform Final Product Temperatures
Mass flow design means the product moves with uniform velocity through the heat exchanger. This feature, combined with long residence times (typically 5-10 minutes), enables even temperature distribution as the product passes through the heat exchanger, producing remarkably stable and uniform final product temperatures.
Performance features
1. Unequal section design for heating and air conditioning
2. Compression molding technology
3. Hanging point design
Advantages Compared with tubular heat exchanger
Compared with tubular heat exchanger and gasketed plate type heat exchanger, weleded plate heat exchanger has the advantages:
Material of plates and the application
304 stainless steel | This is the lowest cost heat transfer plate material. It has a low corrosion resistance and is usually only available in a thickness of 0.4mm. This type of heat transfer plate is typically used on HVAC applications. |
316 stainless steel | This is the most common heat transfer plate material and is used in many applications. 316 stainless steel has a high corrosion resistance and is typically available in thickness from 0.4mm up to 0.8mm. |
Titanium | This has a very high resistance to chemical attack including most acids, chlorides,sea water,and chlorine chemicals. Titanium is usually available in thicknesses from 0.5mm up to 0.6mm. |
Hastelloy C276 | Other common names: Alloy C276, Hastelloy C, Inconel® C-276 Hastelloy C-276. Hastelloy C276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments.Alloy C-276 is widely used in the most severe environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas. Thickness available from 0.6mm to 0.8mm. |
