| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | AIPREL |
| Minimum Order Quantity: | 100 pieces |
| Price: | $3.00/pieces |
| Packaging Details: | export packing |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | Philippines, Peru, Pakistan, India, Russia, Thailand, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Plate Heat Exchanger Gasket | Condition: | New |
| Structure: | Plate Heat Exchanger | Weight: | 2 KG |
| Warranty: | 1 Year | Key Selling Points: | Plate Heat Exchanger Gasket |
| Material: | NBR/EPDM/HNBR/Vitona | Temperature: | 20 To 220 |
| Available Medium: | Water, Oil, Acid,Steam, Ammonia, Acid, Etc. | Service: | Online Support |

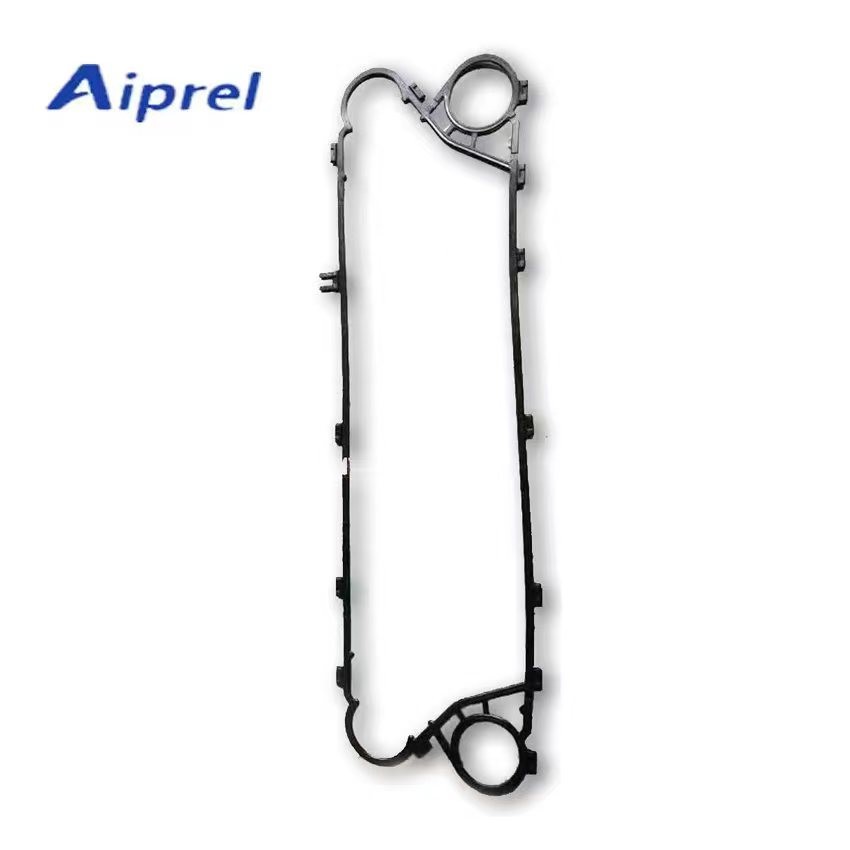

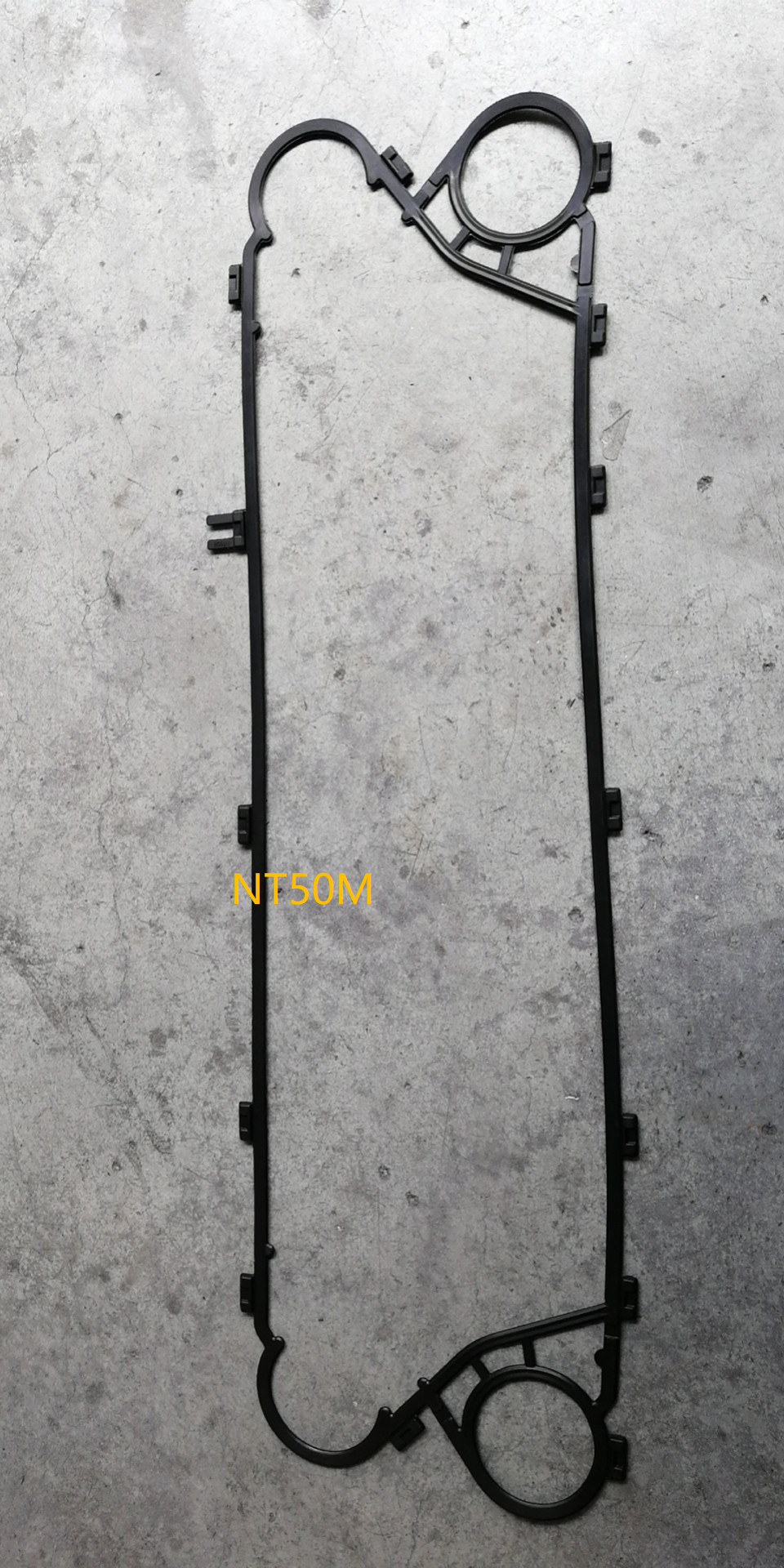

| High Light: | Heat Exchanger Sealing Gasket EPDM,NT50M Heat Exchanger Gaskets,NBR Sealing Gasket |
||
The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
| PLATE MATERIAL | SS304, SS316, 254SMO, 904L, C276, Titanium, Nickel, Incoloy825 |
| PLATE THICKNESS | 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm |
| GASKET MTERIAL | EPDM, NBR, HNBER, HEPDM,FKW |
| GASKET ASSEMBLY | Clip on, Lock in, Snap on, Glued |
| FRAME MATERIAL | Carbon steel, Stainless steel, Stainless steel coat |
| NOZZLE | Flange, Rubber insert, Metal insert, Thread, Clamp |
| CONNECTION SIZE | DN15~DN500 |
| CONNECTION STANDARD | Custiomized |
| COLOR | Custiomized |
| APPLICATION | HVAC, Power, Suger, Marine, Chemical, etc |
Due to the uncertainty of heat exchanger selection and design, the price displayed is a range. For details, please contact customer service. If you do not communicate in the previous period, the customer service cannot accept it.
Advantage:
Comparing to other other types of heat exchanger, plate heat exchangers have larger surface area. They are composed of a number of thin metal plates compressed together. Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid. Different materials have different channels and in their respective flow path alternately. They won't leak to the outside. The number of the heat transfer plate is determined according to the amount of fluid, physical properties of fluid,the pressure drop and thermal condition. Each plate is corrugated to increase the maximum heat transfer area.
Application:

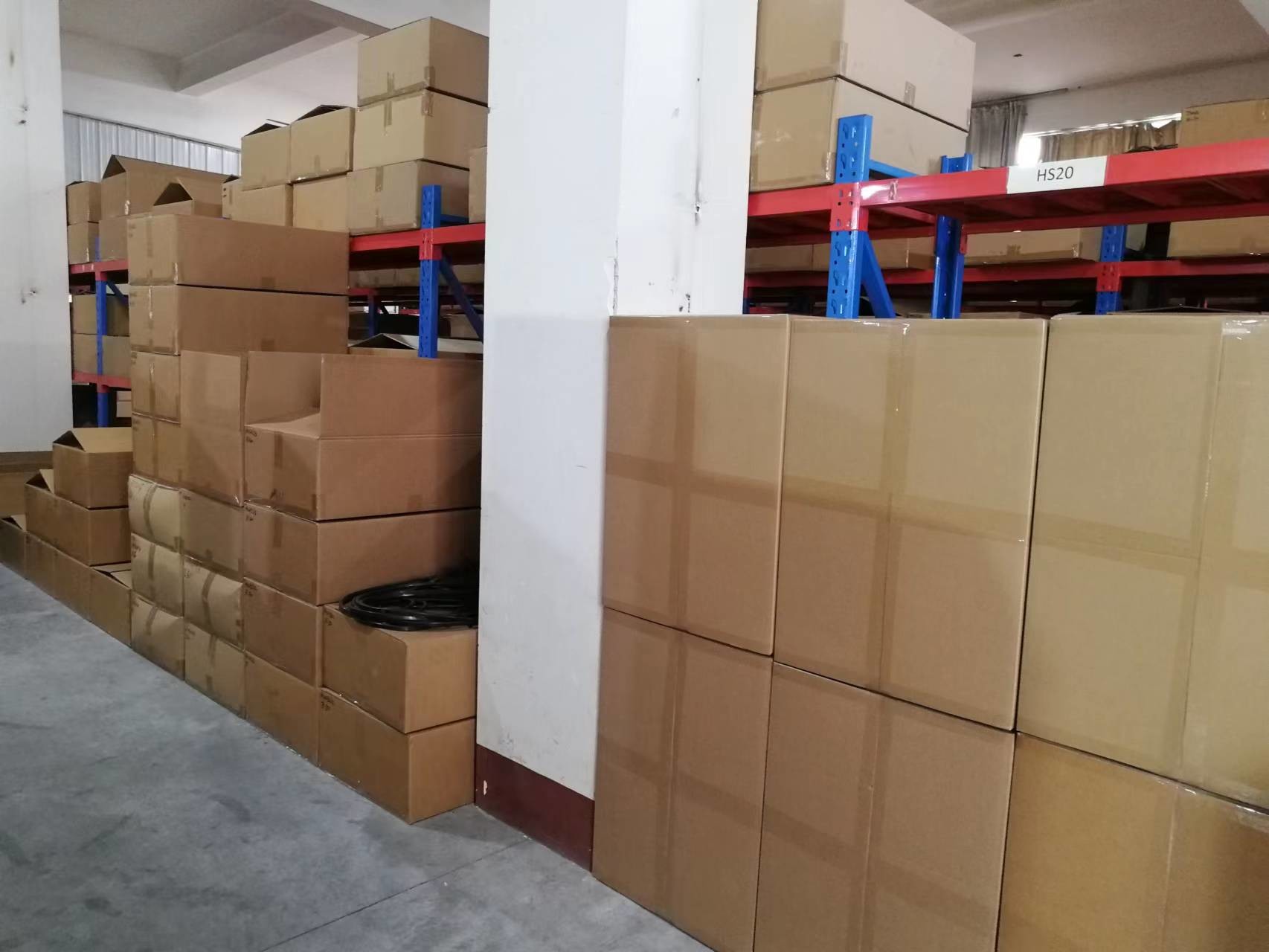

Packing: Plywood Case
During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us.
If the malfunctions are caused by customer's incorrect operations, we will offer the spare parts at cost price.
Anyway, our company promises to supply the customer cost price of spare parts and provide long-term technical guide beyond the guarantee.
Aiprel Heat Transfer Technology Jiangsu Co., Ltd. Is located in Jingjiang, Jiangsu. We specialized in manufacturing series of plate heat exchangers, replacements of plates and gaskets. Our plate heat exchangers are quality reliable and equivalent to the products from world well-known manufacturers. We also supply high quality OEM heat exchanger gaskets( EPDM, NBR)and heat exchanger plates(Stainless Steel.Titanium, Hastelloy) for plate heat exchanger ordinary maintenance. We are in a favorable location and enjoy quite convenient transportation access. We abide by the principal that quality is life and service is development. Our engineers, designers and sales personnel work with customers to find innovative solutions for our customers' needs.
Can I have your samples?
Yes, we can provide samples.
Do you have your own factory?
Yes, welcome to visit our factory and check our products.
How to confirm the quality before place the order?
Sample can be provided for your testing before order. If you are in China, warmly welcome you visit our factory, check the Quality, meanwhile welcome to visit our office for reference.
How about the after-sale services?
If any problems after receiving the bulk goods, please do not hesitate to contact us for dealing, our engineer will service at any time to make you satisfied.
