| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Aiprel |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 50 pieces |
| Price: | $15.00/pieces 50-99 pieces |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Type: | Plate Heat Exchanger Gasket |
| Application: | Heater Parts | Warranty: | 1 Year |
| Plate Material: | SS304/316L/Titanium/SMO254 | Gasket Material: | NBR.HNBR EPDM HEPDM HNBR |
| PLATE THICKNESS: | 0.5MM/0.6MM | Packing: | Plywood Case |
| Brand: | SONDEX | After Warranty Service: | Online Support |
| Local Service Location: | None | After-sales Service Provided: | Field Maintenance And Repair Service, Online Support |
| High Light: | S42 Gasket Plate Heat Exchanger,Heat Transfer Gasket Plate Heat Exchanger,Industrial Heat Exchanger Plates Gasket 0.6mm |
||
| PLATE MATERIAL | SS304, SS316, 254SMO, 904L, C276, Titanium, Nickel, Incoloy825 |
| PLATE THICKNESS | 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm |
| GASKET MTERIAL | EPDM, NBR, HNBER, HEPDM,FKW |
| GASKET ASSEMBLY | Clip on, Lock in, Snap on, Glued |
| FRAME MATERIAL | Carbon steel, Stainless steel, Stainless steel coat |
| NOZZLE | Flange, Rubber insert, Metal insert, Thread, Clamp |
| CONNECTION SIZE | DN15~DN500 |
| CONNECTION STANDARD | Custiomized |
| COLOR | Custiomized |
| APPLICATION | HVAC, Power, Suger, Marine, Chemical, etc |

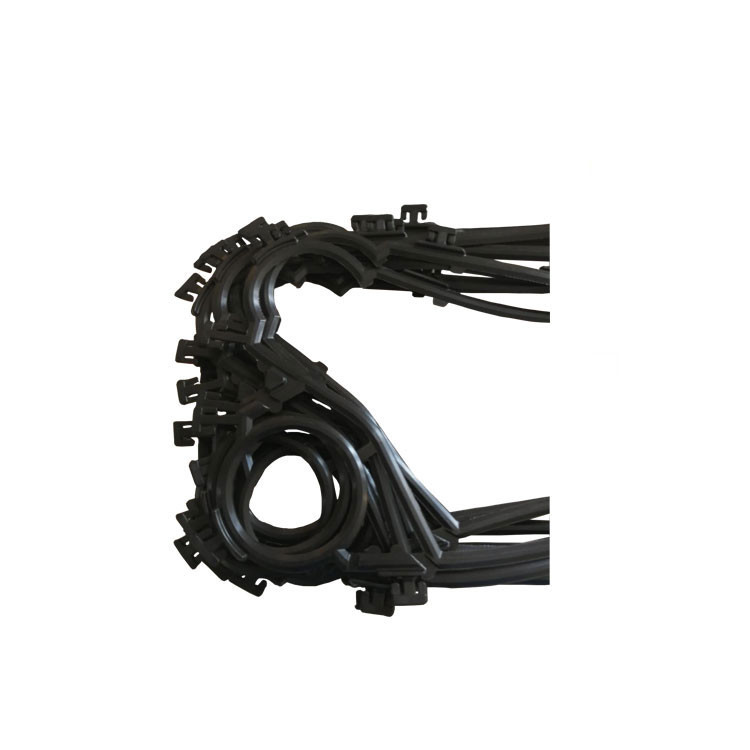

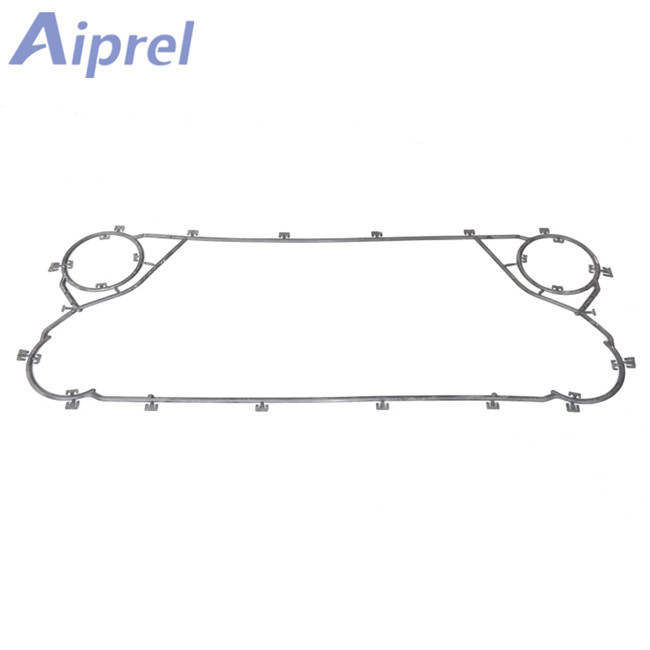

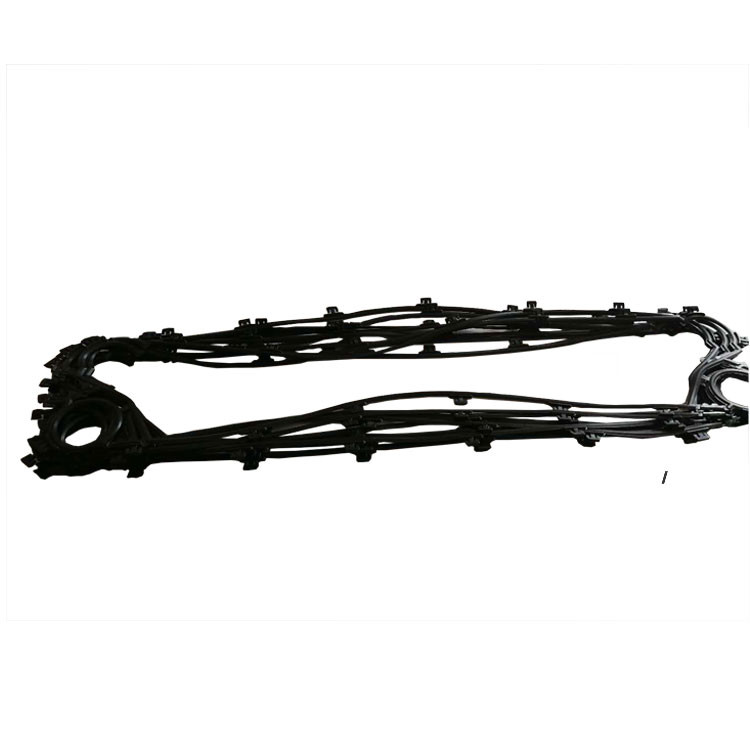

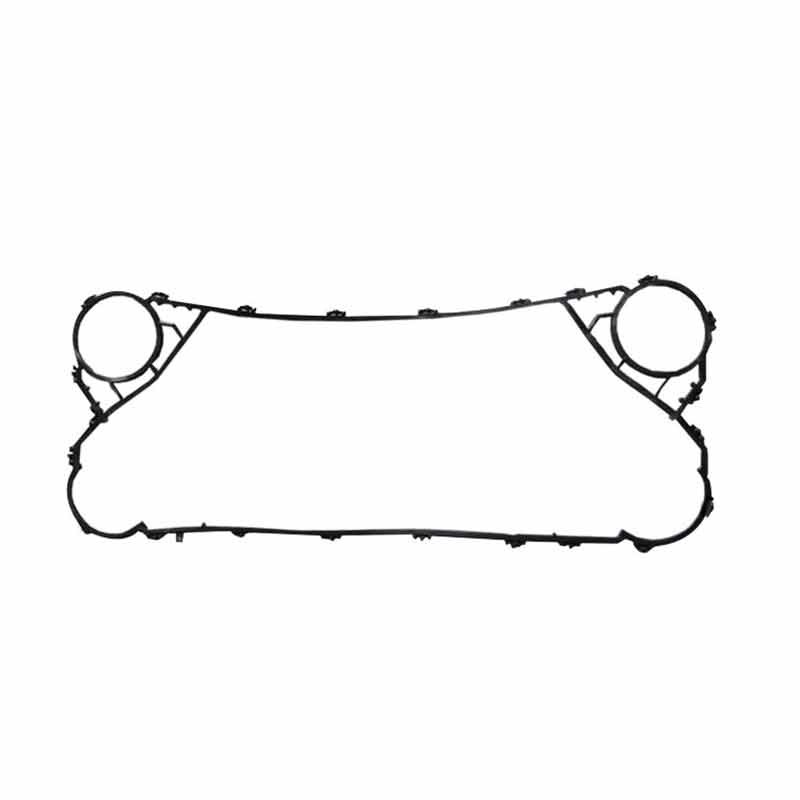

Efficient heat transfer equipment accessories sondex s42 gasket plate heat exchanger price with good price
Due to the uncertainty of heat exchanger selection and design, the price displayed is a range. For details, please contact customer service. If you do not communicate in the previous period, the customer service cannot accept it.
Advantage:

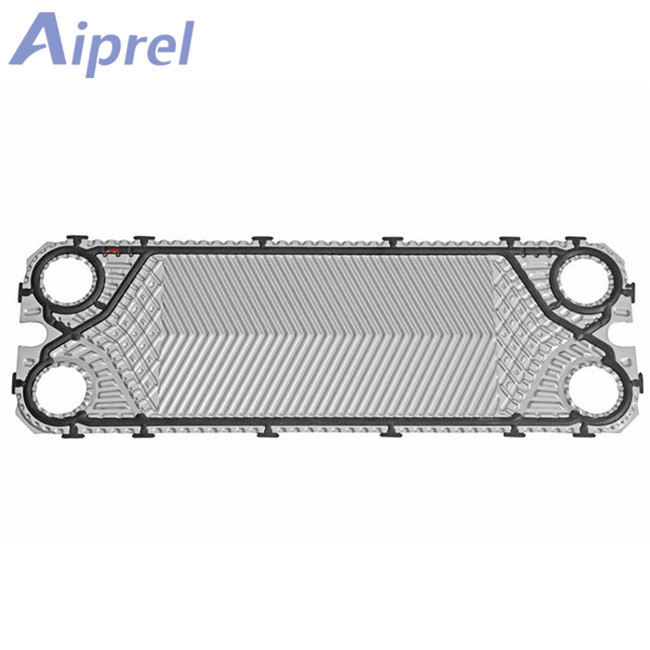

Comparing to other other types of heat exchanger, plate heat exchangers have larger surface area. They are composed of a number of thin metal plates compressed together. Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid. Different materials have different channels and in their respective flow path alternately. They won't leak to the outside. The number of the heat transfer plate is determined according to the amount of fluid, physical properties of fluid,the pressure drop and thermal condition. Each plate is corrugated to increase the maximum heat transfer area.
Efficient heat transfer equipment accessories sondex s42 gasket plate heat exchanger price with good price
Packing: Plywood Case
During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us.
If the malfunctions are caused by customer's incorrect operations, we will offer the spare parts at cost price.
Anyway, our company promises to supply the customer cost price of spare parts and provide long-term technical guide beyond the guarantee.
Aiprel Heat Transfer Technology Jiangsu Co., Ltd. Is located in Jingjiang, Jiangsu. We specialized in manufacturing series of plate heat exchangers, replacements of plates and gaskets. Our plate heat exchangers are quality reliable and equivalent to the products from world well-known manufacturers. We also supply high quality OEM heat exchanger gaskets( EPDM, NBR)and heat exchanger plates(Stainless Steel.Titanium, Hastelloy) for plate heat exchanger ordinary maintenance. We are in a favorable location and enjoy quite convenient transportation access. We abide by the principal that quality is life and service is development. Our engineers, designers and sales personnel work with customers to find innovative solutions for our customers' needs.
Aiprel has 2000 T, 6000T, 18000T and other types of plate heat exchanger plate press, which can accurately, quickly and efficiently produce DN30 to DN500 plate heat exchanger. At the same time, Aiprel has more than 600 kinds of heat exchanger plate models, which can provide high quality plate accessories for various types of heat exchangers.
