Type: | Plate | Application: | Heater Parts,Refrigeration Parts |
---|---|---|---|
Warranty: | 1 Year | Plate Material: | Titanium,SS304,316L,C276 |
Plate Thickness: | 0.5/0.6/0.7mm,1mm,0.5mm To 1.0mm Available | Max Pressure: | 1.0MPa (10bar) |
Medium: | Purity Medium,oil,gas,air,water,milk | Keyword: | Heat Exchanger Plate |
High Light: | M6 Stainless Steel Heat Exchanger Plates,OEM Plate Type Heat Exchanger Replacement,Water Cooling Heat Exchanger Plates 1.0MPa |

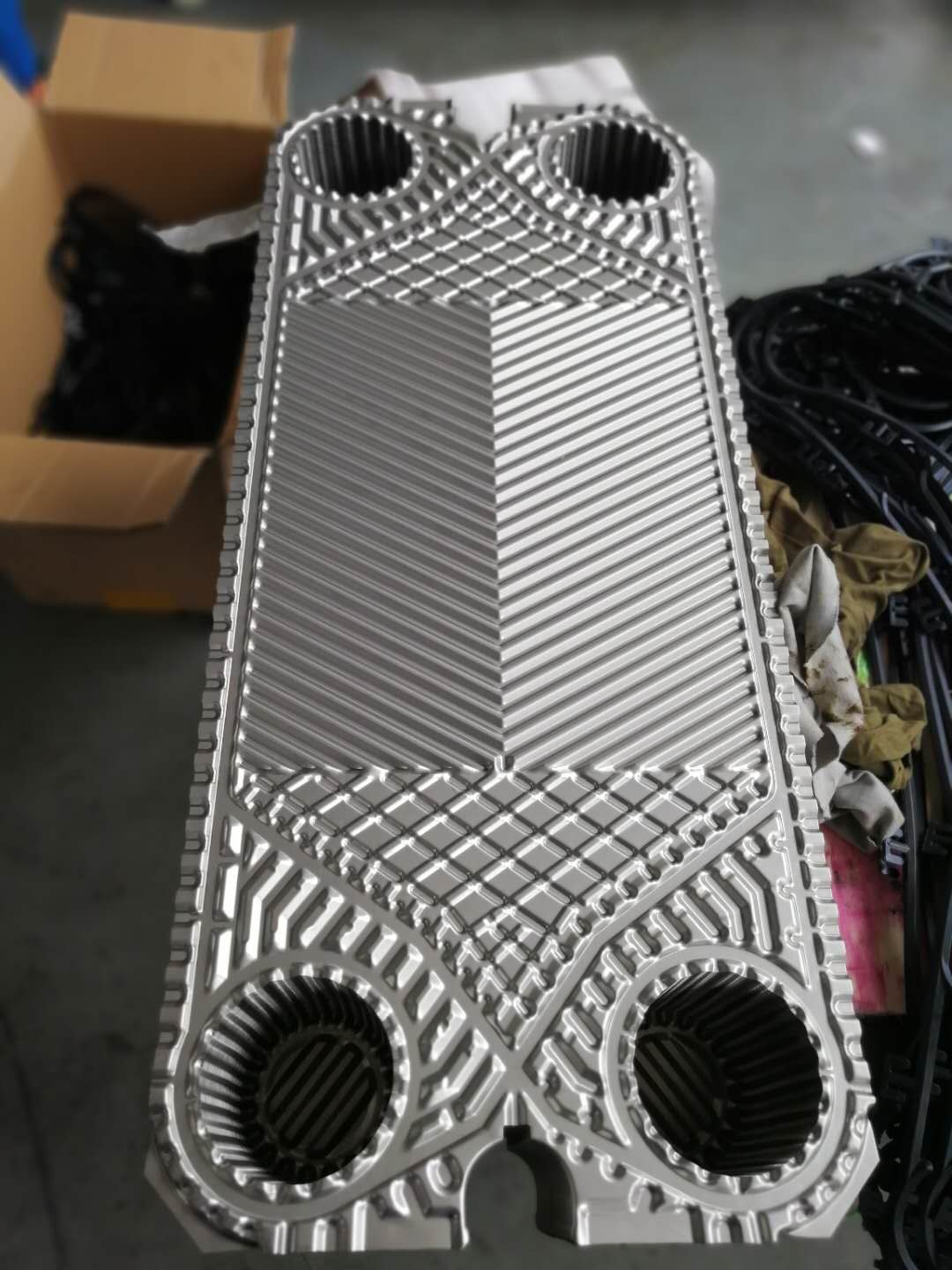

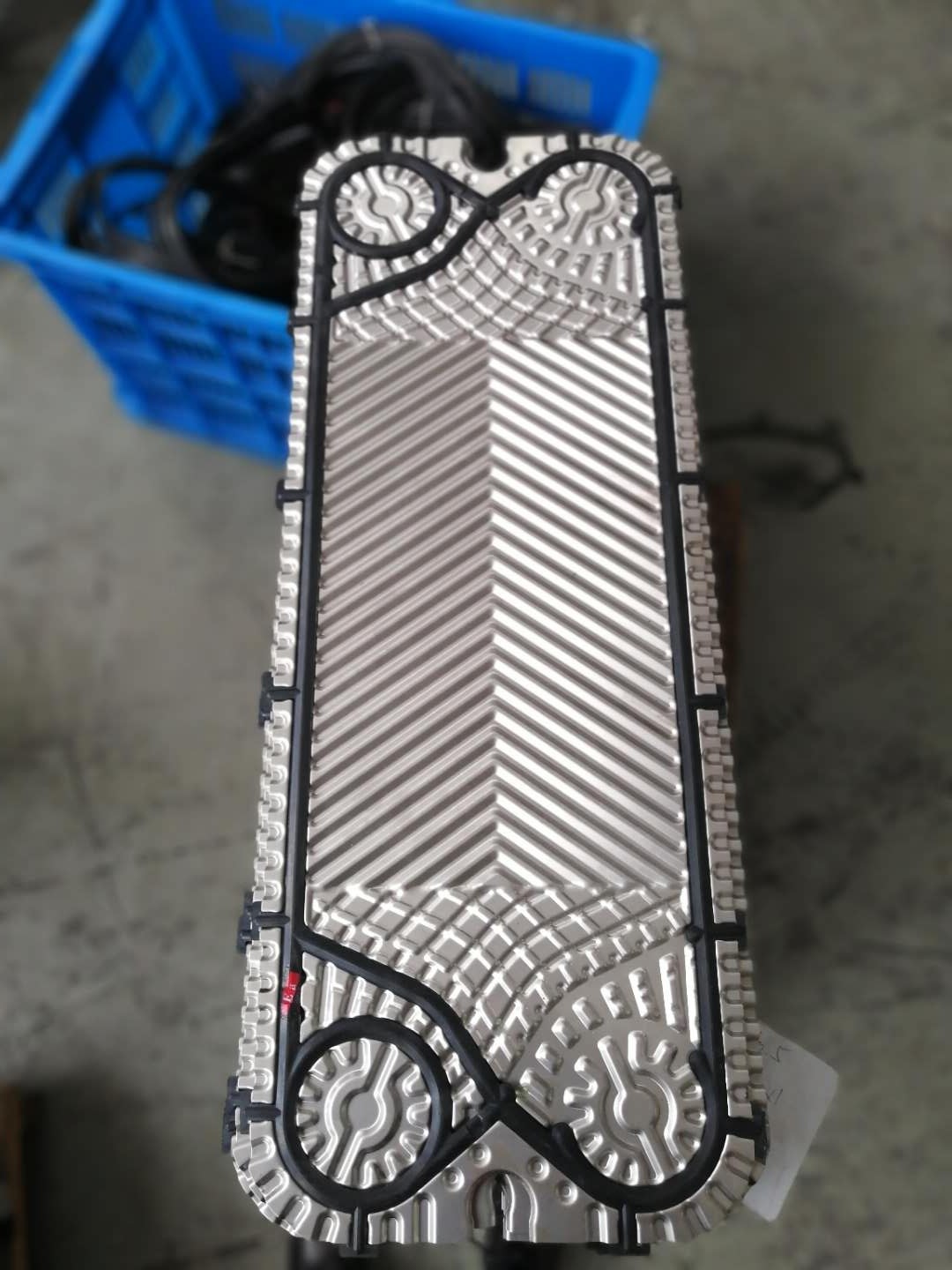

M6 Stainless steel OEM replacement plate heat exchanger plate price for water cooling high transfer efficiency
Heat exchanger gasket is a new type of high efficiency heat exchanger, which is made up of metal sheets with certain corrugated shape. A thin rectangular channel is formed between the sheets, which is sealed and guided by sealing gaskets and exchanged heat through the sheets. Plate heat exchanger is an ideal equipment for liquid-liquid and liquid-vapor heat exchange. Suitable for steam/liquid conventional medium heat exchange, liquid/liquid conventional medium heat exchange, temperature less than 180 ℃, pressure less than 2.5 MPa in all fields.
Corrugated not only can strengthen heat transfer, and can increase the sheet and rigid, so as to improve the bearing capacity of the plate heat exchanger, and because turbulence prompted the liquid state, so it can reduce the formation of sediment or dirt, play a role in "self-cleaning".
As a professional plate heat exchanger plate manufacturer and seller, Aiprel can produce most of the same material specification plate heat exchanger plate and heat exchanger gasket of afar, and provide afar alternative parts services for more than hundreds of application companies.

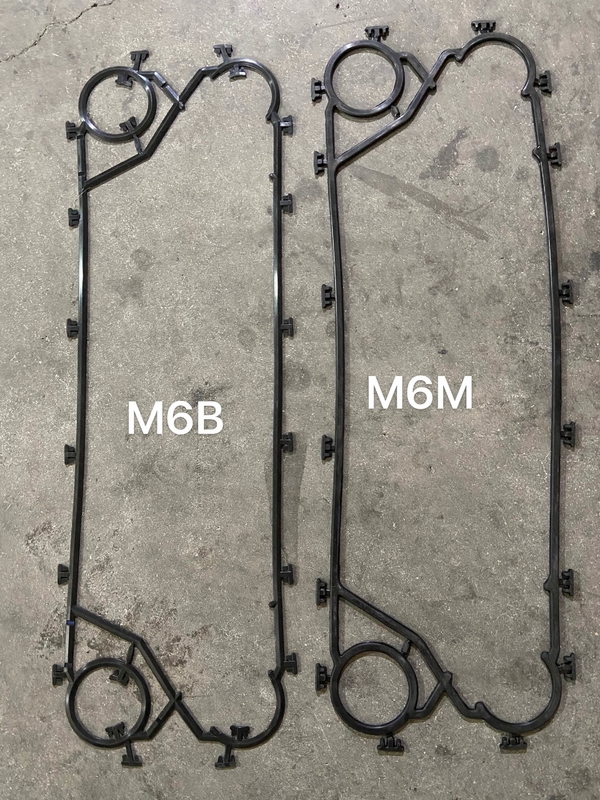

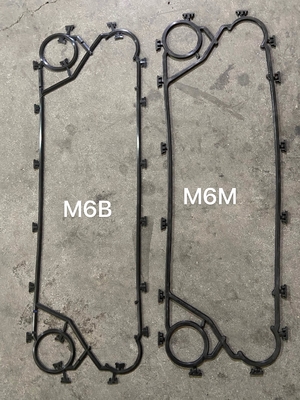

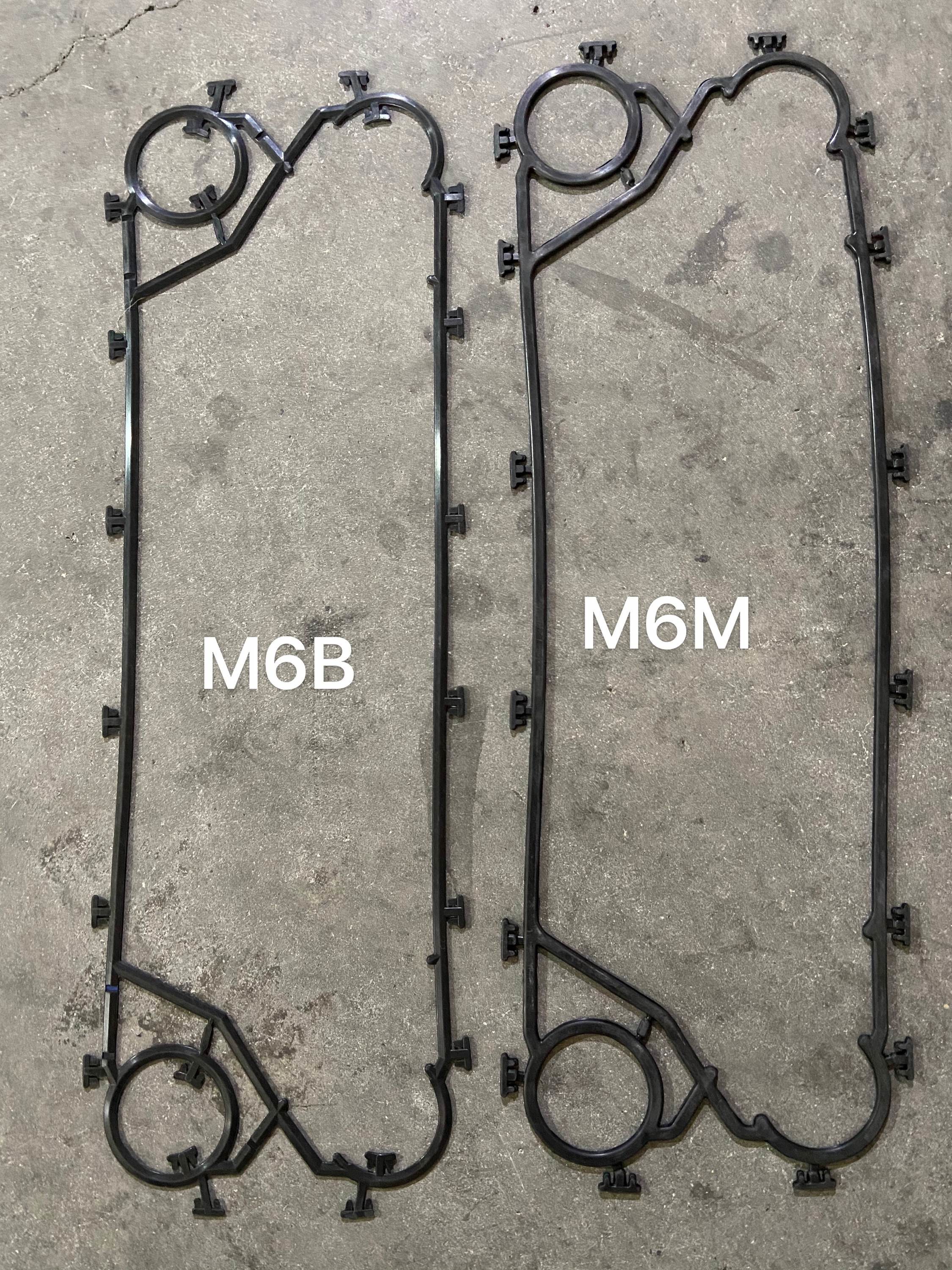

We supplies M6 ALFA heat exchanger gaskets and plates replacements. ALFA Model List as below:
(ALFA) | ||||||
ALFA Series | Plate area (m²) |
Plate length (mm) |
Plate width (mm) |
Longitudinal center distance (mm) |
Transverse center distance (mm) |
Diameter (mm) |
ALFA M3 | 0.032 | 431 | 125.5 | 357 | 60 | 25 |

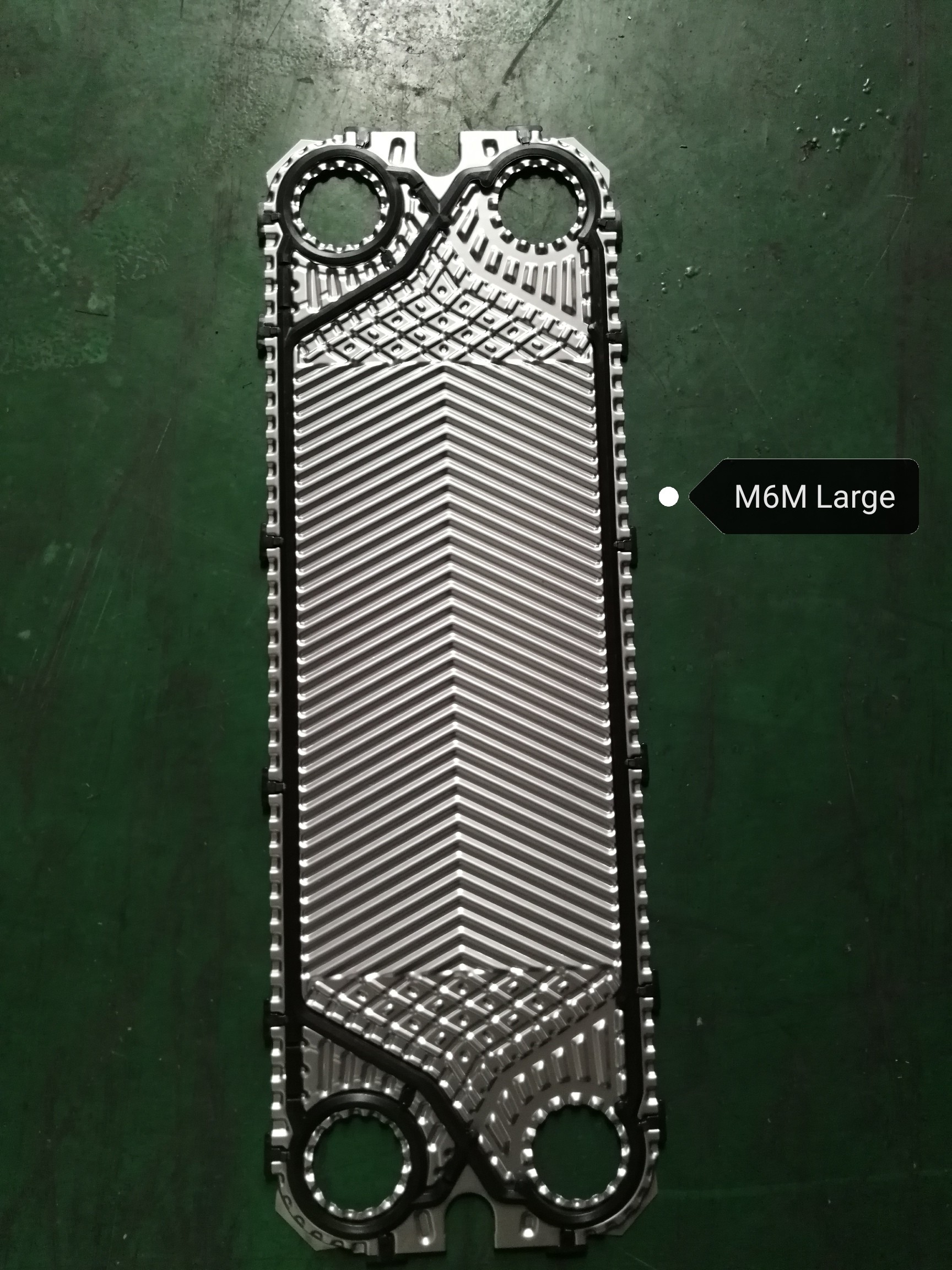

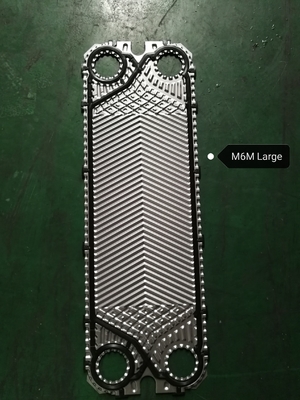

ALFA M6 | 0.14 | 750 | 250 | 640 | 140 | 60 |
ALFA M6-M | 0.14 | 750 | 250 | 640 | 140 | 60 |
ALFA M10-B | 0.24 | 879 | 375 | 719 | 223 | 100 |
ALFA M10-M | 0.22 | 879 | 375 | 719 | 223 | 100 |
ALFA M15-B | 0.62 | 1500 | 500 | 1294 | 298 | 140 |
ALFA M15-M | 0.62 | 1500 | 500 | 1294 | 298 | 140 |
ALFA M20-M | 0.85 | 1750 | 625 | 1478 | 365 | 205 |
ALFA MX25B | 1.5 | 2250 | 750 | 1939 | 439 | 230 |
ALFA MX25M | 1.5 | 2250 | 750 | 1939 | 439 | 230 |
ALFA M30 | 1.85 | 2245 | 995 | 1845 | 595 | 325 |
ALFA CLIP6 | 0.18 | 1000 | 250 | 859 | 130 | 51 |
ALFA CLIP8 | 0.38 | 1250 | 375 | 1095 | 220 | 78 |
ALFA CLIP10 | 0.62 | 1500 | 500 | 1324 | 324 | 100 |
ALFA TS6-M | 505 | 327 | 380 | 200 | 80 | |
ALFA TL6 | 1036 | 150 | ||||
ALFA TL10 | 1338 | 225 | ||||
ALFA TL10P | 1338 | 225 | ||||
ALFA T20-B | 0.9 | 1750 | 625 | 1478 | 353 | 205 |
ALFA T20-BW | ||||||
ALFA T20-M | 0.85 | 1750 | 625 | 1478 | 365 | 205 |
ALFA T20-MW | ||||||
ALFA T20-P | ||||||
ALFA TS20-M | 0.283 | 900 | 625 | 698 | 363 | 195 |
ALFA T50M | ||||||
ALFA P-01 | 431 | 126.5 | 357 | 60 | 32 | |
ALFA P-2 | 0.2 | 710 | 248 | 593 | 135 | 65 |
ALFA P5 | 0.14 | 800 | 325 | 55 | ||
ALFA P12 | ||||||
ALFA P13 | 0.18 | 920 | 290 | 800 | 165 | 60 |
ALFA P14 | 1032 | 264 | ||||
ALFA P15 | 0.53 | 1372 | 500 | 1200 | 324 | 115 |
ALFA P16 | 0.8 | 1360 | 795 | 1200 | 530 | 175 |
ALFA P17 | 1.41 | 2080 | 795 | 1865 | 530 | 175 |
ALFA P20 | ||||||
ALFA P21 | 0.12 | 715 | 250 | 591 | 135 | 70 |
ALFA P22 | 0.2 | 710 | 248 | 593 | 135 | 65 |
ALFA P22 CLIP | 0.12 | 715 | 250 | 591 | 135 | 70 |
ALFA P26 | 0.12 | 715 | 250 | 591 | 135 | 70 |
ALFA P30 | 630 | 122 | 570 | 50 | 25 | |
ALFA P31 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
ALFA P32 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
ALFA P36 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
ALFA P41 | ||||||
ALFA P45 | 1200 | 324 | ||||
ALFA P171 | 1.41 | 2080 | 795 | 1865 | 530 | 175 |
ALFA PAR01 | ||||||
ALFA PAR22 | ||||||
ALFA T200 | ||||||
ALFA P225 | ||||||
ALFA P252 | ||||||
ALFA P132 | 0.18 | 920 | 290 | 800 | 165 | 60 |
ALFA P135 | 800 | 165 | ||||
ALFA A3 | 630 | 122 | 570 | 50 | 25 | |
ALFA A10 | 1205 | 290 | ||||
ALFA A10B | 0.24 | 873 | 388.5 | 703 | 234 | 100 |
ALFA A15 | 1315 | 350 | ||||
ALFA A15B | 0.75 | 1558 | 588.5 | 1315 | 350 | 160 |
ALFA A20 | 1.07 | 1835 | 715 | 1550 | 430 | 200 |
ALFA A20B | 1.07 | 1843 | 718.5 | 1550 | 430 | 210 |
ALFA A30 | 2190 | 890 | 1845 | 540 | 300 | |
ALFA A35 | 2 | 2303 | 1220 | 1850 | 765 | 350 |
ALFA AK20 | 0.5 | 1220 | 669 | 930 | 365 | 210 |
ALFA AM10 | 0.43 | 1247 | 487 | 1046 | 290 | 100 |
ALFA AM20 | 0.79 | 1754 | 669 | 1450 | 365 | 200 |
ALFA AM20B | 0.79 | 1754 | 669 | 1450 | 365 | 210 |
ALFA AM20BFM | ||||||
ALFA AM20HBM | ||||||
ALFA AM20SFM | ||||||
ALFA AX30 | 1.58 | 2208.5 | 909 | 1836 | 540 | 285 |
ALFA AX30B | ||||||
ALFA H7 | 0.4 | 1233 | 425.5 | 1054 | 254 | 80 |
ALFA H10 | 0.65 | 1482 | 533.5 | 1221 | 348 | 100 |
ALFA JWP26 | 0.12 | 715 | 250 | 591 | 135 | 70 |
ALFA JWP36 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
ALFA MA30M | 1.5 | 2250 | 1000 | 1811 | 561 | 332 |
ALFA MA30S | 2232 | 970 | 1815 | 555 | 295 | |
ALFA MS6 | ||||||
ALFA MS10 | ||||||
ALFA MS15 | ||||||
ALFA EC350 | ||||||
ALFA EC500 | ||||||
ALFA EC650 | ||||||
ALFA EC700 | ||||||
ALFA M6MW | 640 | 140 | ||||
ALFA M6MX | 640 | 140 | ||||
ALFA M6MD | 640 | 140 | ||||
ALFA M10BW | 0.24 | 879 | 375 | 719 | 223 | 100 |
ALFA M10BD | ||||||
ALFA M10BWREF | ||||||
ALFA M20MW | 1478 | 353 | ||||
ALFA MK15BW | ||||||
ALFA M15F | ||||||
ALFA M15E | ||||||
ALFA MA30W | ||||||
ALFA A15BW | 0.75 | 1150 | 585 | 1315 | 350 | 160 |
ALFA AX30BW | ||||||
ALFA AM20DW |
M6 plate Introduction to sheet material and application:
material | application |
SUS304 / SUS316L | Purified water, river water, food oil, mineral oil |
Titanium / Pal ladium | Sea water, salt water, salinized substance |
Hadtelloy Alloy / C-276 | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
Ni / Nickel | High temperature and high concentration caustic soda |
M6 plate Introduction of plate heat exchanger manufacturer:
We are a genuine original PHE manufacturer with all components are produced in our own factory and complete end products.
We passed the ISO9001: 2000 Quality System Certification, ISO14001: 2004 Environmental System Quality Certification. Our registered capital is 50.00 million, and annual revenue of over RMB 200 million.
