| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO9001 |
| Model Number: | GX26 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5,000 Units Per Month |
| Product Name: | TRANTER GX26 Heat Exchanger Plate | Application: | PHE Equipments |
|---|---|---|---|
| Warranty: | 12 Month | Plate Material: | Titanium,SS304,316L,254SMO |
| Plate Thickness: | 0.5mm To 0.8mm,0.6mm,0.7mm | Max Pressure: | 1.3MPa (13 Bar) |
| Medium: | Oil,gas,milk,water | Model: | GC8,GC54,GX26 |
| High Light: | Heat Exchanger Plates Gasket,Stainless Steel Heat Exchanger Plates GX26,Sealing Plate Heat Exchanger Gasket |
||

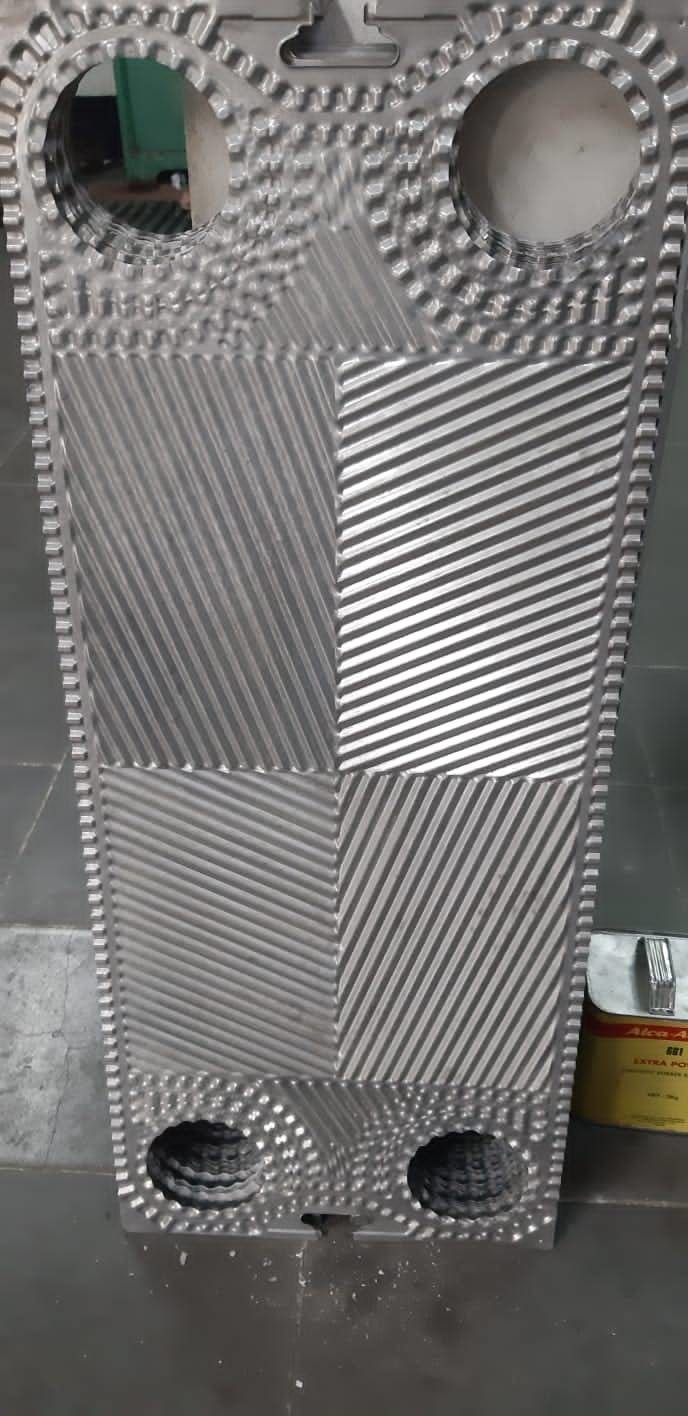

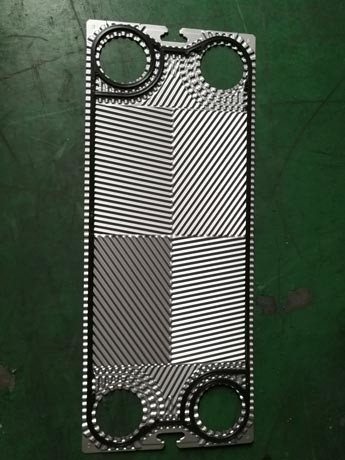

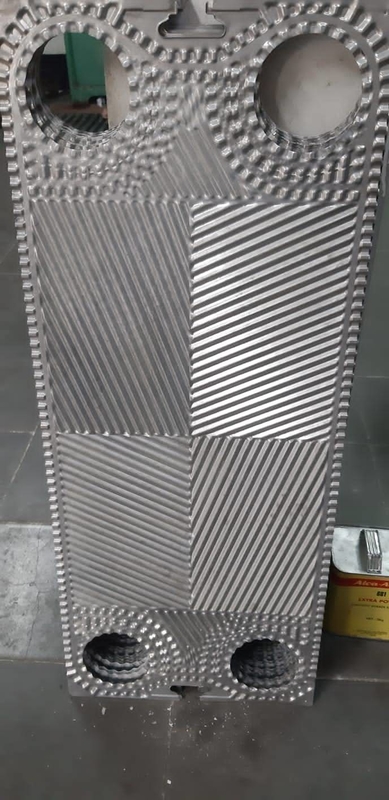

Stainless Steel parallel heat exchanger sealing gasket EPDM or NBR For GXP026 gasketsTranter GX26 Heat Exchanger plate
Plate Heat Exchanger gaskets for Tranter Products
Heat Exchanger spares
1.equal Tranter GXD26
2.Plate:AISI316L /304 /Ti /Ni /SMO254
3.Gasket:NBR /EPDM /VITON
Tranter GX26 plate Stainless Steel parallel heat exchanger sealing gasket EPDM or NBR For heat exchanger
Plate heat exchanger Plates Features
• Equally distributing flow in the whole plate
• Improving its heat transfer efficiency
• Eliminating the fouling accumulation area
Features of Gasket Used in Plate Heat Exchanger
• Standard roof gasket.
• Protection groove of gasket: Gasket groove prevent the pads from being squeezed out and prolong its service time.
• Rubber gasket adopts latch-locked design, with observation holes for leakage.
• The fixed and seal functions are separate, even if there are some problems in fixed functions, its seal function can still work.
Standard Material
Material: 316L, 304, Ti, SMO, Hastelloy
Thickness: 0.5mm, 0.6mm,0.7mm,0.8mm
Gasket: NBR, EPDM, FKM
Gasket type: clip on
We can provide all brands of plate heat exchangers and gaskets,including: AlfaLaval, SPX, APV, GEA, TRANTER, SWEP, SONDEX, API.Schmidt, HISAKA,FUNKE, Thermowave, Vicarb, DONGHWA, ACCESSEN, MULLER, FISCHER,REHEAT etc, and usually, we prepare some conventional models in our stock for urgent orders, so the delivery time is not a problem, in any case, if you have any requirements in price or delivery time, pls contact us.
GX26 Heat Exchanger plate Application:
| Brands | Type | Plates Model |
| Aiprel | M Series | M3/M6B/M6M/M10B/M10M/M15B/M15M/MX25M/M30/MA30M /MA30S/MA30W/MS6/MS10 |
| Clipline | Clip3/Clip6/Clip8/Clip10/Clip15 | |
| T Series | TS6M/TS20M/TL6B/TL10P/T20M/T20P/T20S/T2B/T5B/T5M /T8B/T8M/T35P/T45M/T50M/TL35B/TL3/TS6M/TS35P/TL15B /TL20P/TS50M/ |
|
| P Series | P1/P2/P5/P12/P13/P14/P15/P16/P17/P20/P22/P26/P30/P31/P32/P36/P41/P45 | |
| A Series | A3/A10/A10B-A/A15/A15B/A20/A20B/AK20/A30/A35/AX30 /AM10B/AM15B/AM20/AX30 |
|
| GEA | NT Series | NT100T/NT100M/NT100XNT150S/NT150LNT250S/NT250M /NT250LNT350S/NT350M/NT50L/NT50T/NT50M/NT50X |
| VT Series | VT04/VT10/VT20lock-in/VT20P/VT40lock-in/VT80M | |
| FUNKE | FP Series | FP02/FP04/FP05/FP08/FP10/FP12/FP14/FP16/FP20/FP22 /FP31/FP40/FP41/FP50/FP60/FP80/FP205 |
| Tranter | GX Series | GX6/GX12/GX18/GX26/GX37/GX42/GX51/GX60/GX64/GX85 /GX91/GX100 |
| GC Series | GC16/GC18/GC26/GC51/GC60 | |
| Others | GL12/GL13/GL18/S3/UX01/UX05/UX20/UX40/UX80 | |
| Sondex | S Series | S4/S4A/S7A/S8/S8A/S9A/S14A/S19A/S21/S21A/S22/S31A S21/S22/S37/S42/S43/S62/S65/S81/S121/SM3/S113/S100 |
| Vicarb | V Series | V2/V4/V8/V13/V20/V28/V45/V60/V85/V100/V110/V130/V170 /V180/V205/AU8 |
| Thermowave | PP Series | TL90PP/TL150PP/TL250PP/TL400PP/TL450PP/TL500PP /TL650PP/TL850PP |
| SS Series | TL90SS/TL150SS/TL250SS/TL400SS/TL450SS/TL500SS /TL650SS/TL850SS |
|
| APV | H17/N35/B063/A055/A085/Q080/T107/T14/SR1/SR2/SR3 | |
| Special Plate | Double Wall/Semi-Welded/Free Flow |
GX26 Heat Exchanger plate advantages:
| PHE Plate Specifications | |
| Model | GX26 |
| Material | 304SS,316SS,Titanium,ASMO254,Hastelloy C-276,Ni201,904L |
| Thickness | 0.5mm,0.6mm,0.8mm,1.0mm |
| Plate Hole | 0 Hole,1 Hole,2 Holes,3 Holes,4 Holes |
| Replacement Brand | Tranter |
| Package details | Standard export plywood case & customizing |
| Production Capacity | 200000m²/yea |
feature:
1.Advanced plate design to improve heat transfer efficiency.
2.Uniform distribution of fluid, accurate positioning.
3.Common types of plate heat exchanger plates at home and abroad.
4.Reasonable shunt area, enhance corrosion resistance, improve the utilization rate of heat exchange area.
5.The reverse flow of the two fluids greatly improves the heat exchange efficiency.
6.Parallel piping of the same fluid inlet and outlet simplifies engineering installation.
7.Single plate, simplified maintenance.
Aiprel specializes in heat exchangers, heat exchangers accessories, manufacturing, sales, and service.
We are a genuine original PHE manufacturer with all components are produced in our own factory and complete end products.
We passed the ISO9001: 2000 Quality System Certification, ISO14001: 2004 Environmental System Quality Certification. Our registered capital is 50.00 million, and annual revenue of over RMB 200 million.
Question 1:What Material of the Gasket we have?
Answer:We have EPDM,NBR,HEPDM,HNBR,Viton Material for you choose.
Question 2:What Material of the Plate we have stock?
Answer:Generally,SS304,SS316,and Titanium Material are our common use.
Question 3:How long is the guarantee?
Answer:Our guatantee is one year.
