| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO9001 |
| Model Number: | GC16 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5,000 Units Per Month |
| Product Name: | TRANTER GC16 Heat Exchanger Plate | Application: | PHE Equipments |
|---|---|---|---|
| Warranty: | 1 Year | Plate Material: | Titanium,SS304,316L, |
| Plate Thickness: | 0.5mm To 0.8mm,0.6mm,0.5mm | Max Pressure: | 1.6MPa (16 Bar) |
| Medium: | Purity Medium,oil,gas,milk,water | Model: | GC16,GC60,GC26 |
| High Light: | Water Cooled Heat Exchanger Plates GC16,AISI316 Plate Type Heat Exchanger,PHE Heat Transfer Plate |
||

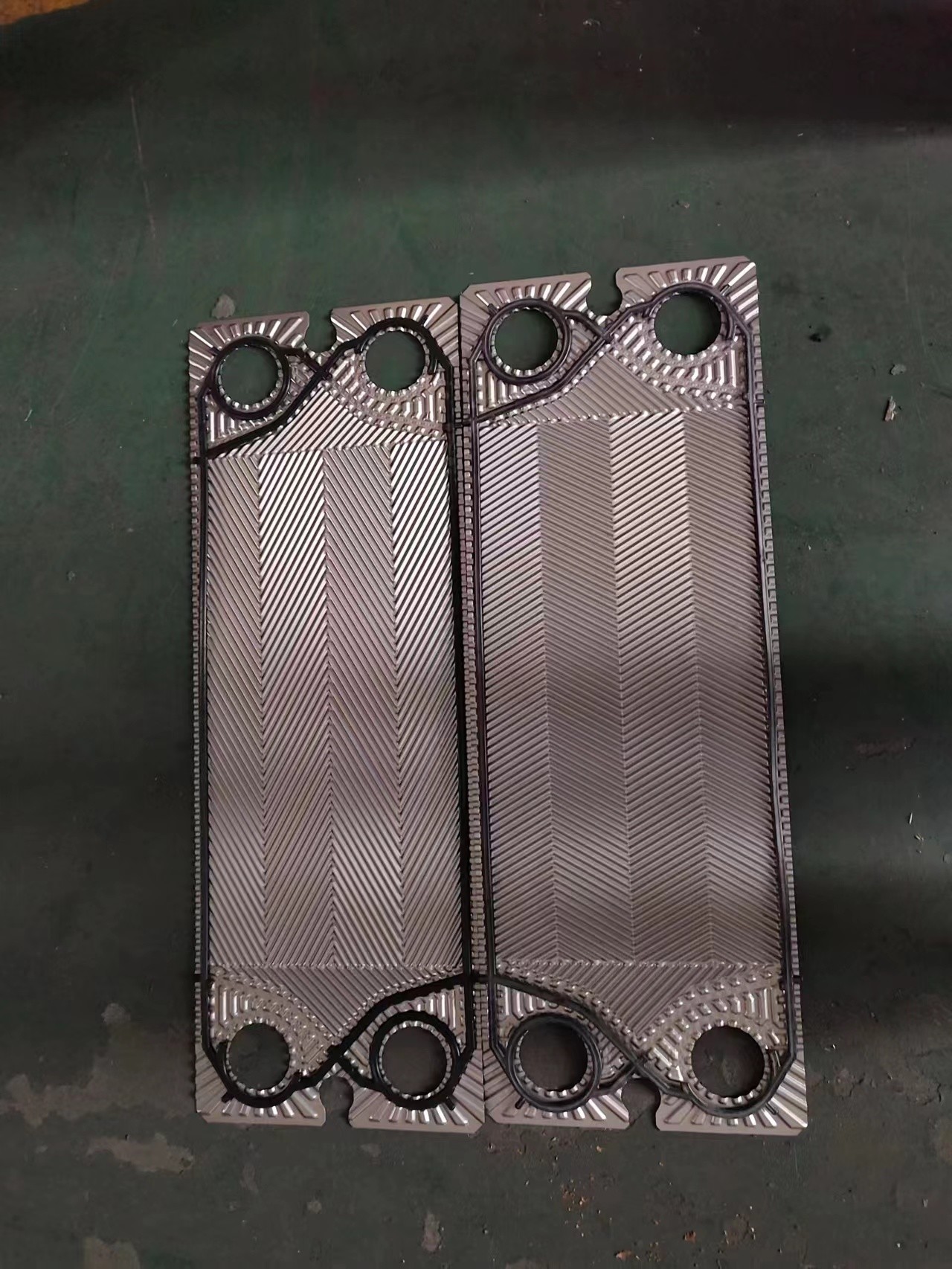

Tranter GC16 Heat Exchanger plate
Plate Heat Exchanger gaskets for Tranter Products
Metal plate:It is an important heat transfer element for pressing metal sheet with corrugation, sealing groove and corner hole.
Corrugated not only can strengthen heat transfer, and can increase the sheet and rigid, so as to improve the bearing capacity of the plate heat exchanger, and because turbulence prompted the liquid state, so it can reduce the formation of sediment or dirt, play a role in "self-cleaning".
Sealing gasket: installed in the slots along the perimeter of the plate of the gasket and seal plate between the peripheral, prevent fluid leak outward, and according to the requirements of design, the sealing part of the Angle of hole, the cold and hot liquids according to their respective port flow.
Sealing principle:
The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of rubber.
Aiprel heat transfer technology Jiangsu Co.,Ltd is a Plate Heat Exchanger manufacturer specialized in development. Production and global marketing of plate heat exchangers.
We can provide all brands of plate heat exchangers and gaskets,including: AlfaLaval, SPX, APV, GEA, TRANTER, SWEP, SONDEX, API.Schmidt, HISAKA,FUNKE, Thermowave, Vicarb, DONGHWA, ACCESSEN, MULLER, FISCHER,REHEAT etc, and usually, we prepare some conventional models in our stock for urgent orders, so the delivery time is not a problem, in any case, if you have any requirements in price or delivery time, pls contact us.
GC16 Heat Exchanger plate Application:
| Brands | Type | Plates Model |
| Al | M Series | M3/M6B/M6M/M10B/M10M/M15B/M15M/MX25M/M30/MA30M /MA30S/MA30W/MS6/MS10 |
| Clipline | Clip3/Clip6/Clip8/Clip10/Clip15 | |
| T Series | TS6M/TS20M/TL6B/TL10P/T20M/T20P/T20S/T2B/T5B/T5M /T8B/T8M/T35P/T45M/T50M/TL35B/TL3/TS6M/TS35P/TL15B /TL20P/TS50M/ |
|
| P Series | P1/P2/P5/P12/P13/P14/P15/P16/P17/P20/P22/P26/P30/P31/P32/P36/P41/P45 | |
| A Series | A3/A10/A10B-A/A15/A15B/A20/A20B/AK20/A30/A35/AX30 /AM10B/AM15B/AM20/AX30 |
|
| GEA | NT Series | NT100T/NT100M/NT100XNT150S/NT150LNT250S/NT250M /NT250LNT350S/NT350M/NT50L/NT50T/NT50M/NT50X |
| VT Series | VT04/VT10/VT20lock-in/VT20P/VT40lock-in/VT80M | |
| FUNKE | FP Series | FP02/FP04/FP05/FP08/FP10/FP12/FP14/FP16/FP20/FP22 /FP31/FP40/FP41/FP50/FP60/FP80/FP205 |
| Tranter | GX Series | GX6/GX12/GX18/GX26/GX37/GX42/GX51/GX60/GX64/GX85 /GX91/GX100 |
| GC Series | GC16/GC18/GC26/GC51/GC60 | |
| Others | GL12/GL13/GL18/S3/UX01/UX05/UX20/UX40/UX80 | |
| Sondex | S Series | S4/S4A/S7A/S8/S8A/S9A/S14A/S19A/S21/S21A/S22/S31A S21/S22/S37/S42/S43/S62/S65/S81/S121/SM3/S113/S100 |
| Vicarb | V Series | V2/V4/V8/V13/V20/V28/V45/V60/V85/V100/V110/V130/V170 /V180/V205/AU8 |
| Thermowave | PP Series | TL90PP/TL150PP/TL250PP/TL400PP/TL450PP/TL500PP /TL650PP/TL850PP |
| SS Series | TL90SS/TL150SS/TL250SS/TL400SS/TL450SS/TL500SS /TL650SS/TL850SS |
|
| APV | H17/N35/B063/A055/A085/Q080/T107/T14/SR1/SR2/SR3 | |
| Special Plate | Double Wall/Semi-Welded/Free Flow |
GC16 Heat Exchanger plate advantages:
| PHE Plate Specifications | |
| Model | GC16 |
| Material | 304SS,316SS,Titanium,ASMO254,Hastelloy C-276,Ni201,904L |
| Thickness | 0.5mm,0.6mm,0.8mm,1.0mm |
| Plate Hole | 0 Hole,1 Hole,2 Holes,3 Holes,4 Holes |
| Replacement Brand | Tranter |
| Package details | Standard export plywood case & customizing |
| Production Capacity | 200000m²/yea |
feature:
1.Advanced plate design to improve heat transfer efficiency.
2.Uniform distribution of fluid, accurate positioning.
3.Common types of plate heat exchanger plates at home and abroad.
4.Reasonable shunt area, enhance corrosion resistance, improve the utilization rate of heat exchange area.
5.The reverse flow of the two fluids greatly improves the heat exchange efficiency.
6.Parallel piping of the same fluid inlet and outlet simplifies engineering installation.
7.Single plate, simplified maintenance.
Aiprel specializes in heat exchangers, heat exchangers accessories, manufacturing, sales, and service.
We are a genuine original PHE manufacturer with all components are produced in our own factory and complete end products.
We passed the ISO9001: 2000 Quality System Certification, ISO14001: 2004 Environmental System Quality Certification. Our registered capital is 50.00 million, and annual revenue of over RMB 200 million.
FAQs
1. Are you a factory or trader?
We have been producing evaporater and condesation ,plate heat exchaner ,plate(tube) heat exchanger units etc for twelve years ,as same time ,we can purchase related products and facilities for you too.
2.How will the goods be delivered?
Shipping by sea,by air,by international express like TNT,DHL,UPS,etc FOB ,CIF ,... ,We have wholly-owned international logistics co.,Ltd ,with NVOCC qualification,welcome your inquiry !
3.How about the payment terms?
ou can pay money by T/T L/C. in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
4. Is there after-sales service of your products?
Yes. If you hve any problem about the products, please just at ease and contact us at any time.
