| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO9001 |
| Model Number: | GC54 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5,000 Units Per Month |
| Product Name: | TRANTER GC54 Heat Exchanger Plate | Application: | PHE Equipments |
|---|---|---|---|
| Warranty: | 1 Year | Plate Material: | Titanium,SS304,316L,254SMO,Ni |
| Plate Thickness: | 0.5mm To 0.7mm | Max Pressure: | 2MPa (20 Bar) |
| Medium: | Purity Medium,oil,gas,air,water | Model: | GC54,GC26,GC60,GC51 |
| High Light: | PHE Heat Exchanger Plates,GC60 Heat Exchanger Plates,Heat Transfer Plate Purity Medium |
||

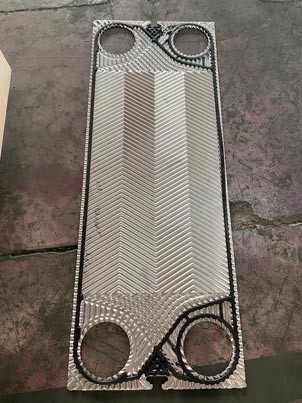

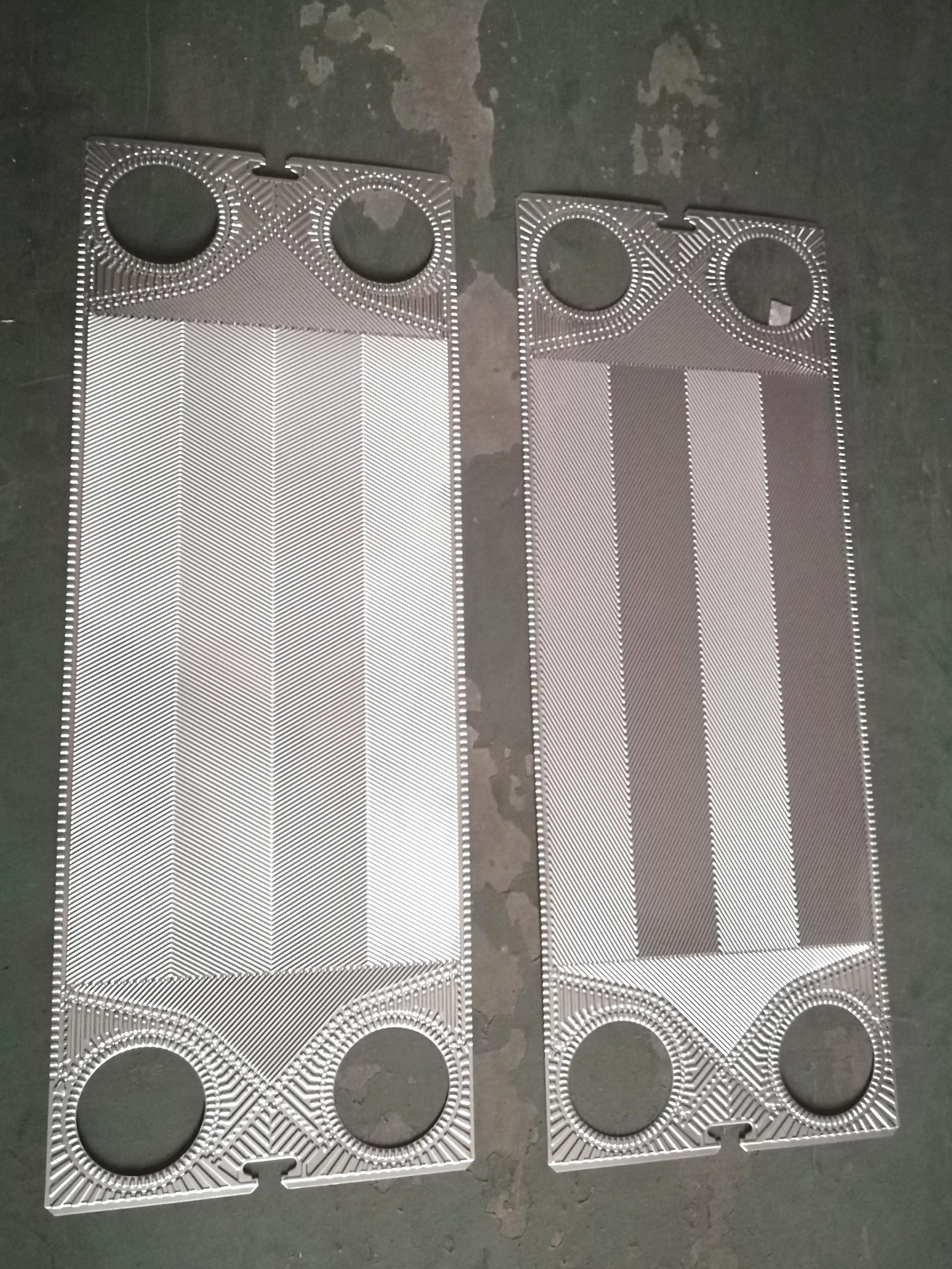

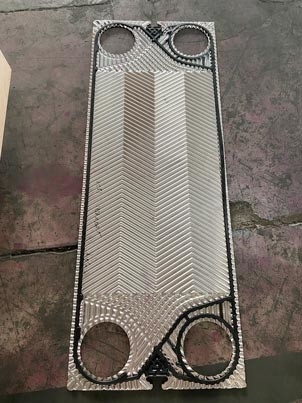

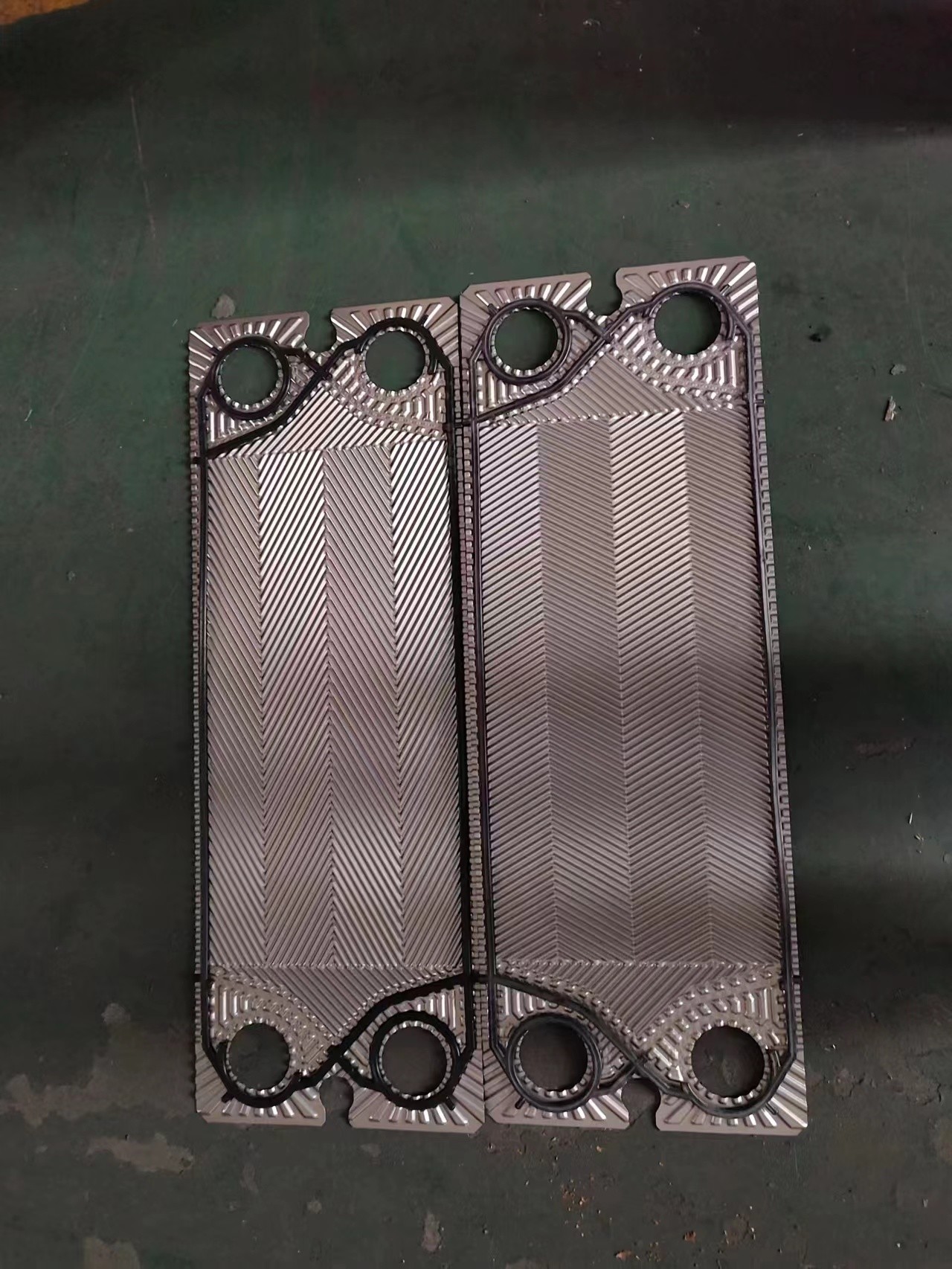

Tranter GC54 Heat Exchanger plate
Plate Heat Exchanger gaskets for Tranter Products
Aiprel heat transfer technology Jiangsu Co.,Ltd is a Plate Heat Exchanger manufacturer specialized in development. Production and global marketing of plate heat exchangers.
We can provide all brands of plate heat exchangers and gaskets,including: AlfaLaval, SPX, APV, GEA, TRANTER, SWEP, SONDEX, API.Schmidt, HISAKA,FUNKE, Thermowave, Vicarb, DONGHWA, ACCESSEN, MULLER, FISCHER,REHEAT etc, and usually, we prepare some conventional models in our stock for urgent orders, so the delivery time is not a problem, in any case, if you have any requirements in price or delivery time, pls contact us.
GC54 Heat Exchanger plate Application:
The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
GC54 Heat Exchanger plate Specifications:
|
Brand/Maker |
Series |
|
TRANTER
SWEP |
GCD006,GCD012,GLD013,GLP013,GCD018,GCP026,GCD030,GCP030, GCP051,GCP054,GCD054,GCD055, GCP060,GCD065,GCD018,GC8,GC12,GL13,GC26,GC30,GC42,GC51,GC60, GL145,GL205,GL230,GL330, GX7,GX12,GX18,GX26,GX42,GX51,GX60,GX64,GX85,GX91, GX100,GX118,GX140,GX145,GXD012,GXP018, GX026,GXD026,GXP026,GXP037,GXD037, GX042,GXD042,GXP042,GX051,GXP051,GXD051, GXD060,GXD064,GXD085,GXD091,GXD100,GXP118,GXD140,GXD145, GFP030,GFP050,GF057,GFP057,GFP080,GFP097,GF097, GFP100,GFP180,GFP187,GF187, S3,S8,HX12,HXD012,HX25,HX50,HXD050,HX85,HXD085,HX180,HXD180,HXD145, GM56,GM59,GM138,GM257,GM276, TW5,TW10,TW18, UX01,UX05,UXP005,UXP010,UXP060,UX06T,UX10,UX20,UX40,UXP200,UXP400, UX80,UXP81,UX801,UXP900, G12,G28,G30,G48,G50,G55,G65,G66,G75,G78,G85, G95,G25,G52,G58,G102,G108,G153,G157,G158,G159, G214,G234,G254,G274,G322,G342,G52,G58,G65, GF138,GF257,GF276,GF59,MF138,MF257,MF276,MF56,MF59
|
GC54 Heat Exchanger plate application:
|
material |
application |
|
SUS304 / SUS316L |
Purified water, river water, food oil, mineral oil |
|
Titanium / Pal ladium |
Sea water, salt water, salinized substance |
|
Hadtelloy Alloy / C-276 |
Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
|
Ni / Nickel |
High temperature and high concentration caustic soda |
Introduction of plate heat exchanger manufacturer:
Aiprel specializes in heat exchangers, heat exchangers accessories, manufacturing, sales, and service.
We are a genuine original PHE manufacturer with all components are produced in our own factory and complete end products.
We passed the ISO9001: 2000 Quality System Certification, ISO14001: 2004 Environmental System Quality Certification. Our registered capital is 50.00 million, and annual revenue of over RMB 200 million.
With all the manufacturing plants together of over 100,000 square meters, producing over 20,000 heat exchangers and milloins heat exchanger accessories, making us one of the world's largest heat exchange equipment and accessories manufacturers.
heat exchanger gaskets
FAQs
1. Are you a factory or trader?
We have been producing evaporater and condesation ,plate heat exchaner ,plate(tube) heat exchanger units etc for twelve years ,as same time ,we can purchase related products and facilities for you too.
2.How will the goods be delivered?
Shipping by sea,by air,by international express like TNT,DHL,UPS,etc FOB ,CIF ,... ,We have wholly-owned international logistics co.,Ltd ,with NVOCC qualification,welcome your inquiry !
3.How about the payment terms?
ou can pay money by T/T L/C. in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
4. Is there after-sales service of your products?
Yes. If you hve any problem about the products, please just at ease and contact us at any time.
5. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
6. How about your delivery time?
Generally, it will take 3 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
