| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO |
| Model Number: | Sondex S81Clip on |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10,000 Units Per Month |
| Type: | Heat Exchanger Plate,gasket | Warranty: | 1 Year |
|---|---|---|---|
| Plate Material: | Titanium,SS304,SS316L,SMO254,Hastelloy | Plate Thickness: | 0.5/0.6/0.7mm,0.5mm To 0.7mm Available |
| Surface Treatment: | Clean | Max Pressure: | 1.6MPa (106bar) |
| Medium: | Purity Medium,oil,gas,water,milk | ||
| High Light: | Plate Type Heat Exchanger Sondex Gaskets,Clip On Heat Exchanger Gaskets,S81 Plate Heat Exchanger Gasket |
||

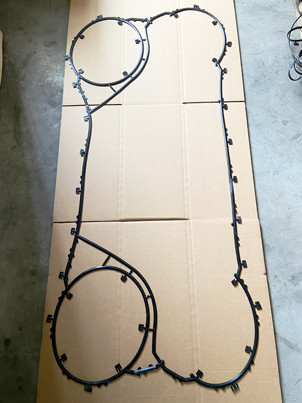

Sondex S81 Clip on Gaskets and Sondex S81 Clip on Plates for Plate Heat Exchangers.We are happy to answer any questions regarding the replacement of any Sondex Gaskets and Sondex Plates for your heat exchanger,Sondex S81 gasket and plate have same holes diameter with S121, S188 and S251.
Our Gasketed plate heat exchangers are optimizing heat transfer by large surfaces of corrugated plates drawing heat from one gas or liquid to the other. The high efficiency and an outstanding reliability in a compact design, offers an investment with the most attractive CTO over the product life time. Not to forget the energy saving capabilities and low environmental footprint.
· Highest thermal efficiency and close temperature approach
· Compact units - space saving, easy to service and maintain
· Maximum uptime - less fouling, stress, wear and corrosion
· Flexible - easy to adapt to changed duty requirements
Aiprel provide all models of Sondex plates and gaskets replacements.
| Brand/Maker | Series |
| Sondex | S4A,S7,S7A,S8,S8A,S9A, |
| S14,S14A,S15,S17,S18,S19,S19A, | |
| S20,S20A,S21,S21A,S22,S23,SF25 (Glued),SF25A,SF25, | |
| S30,S31A,S35,S36,S37,S38,S39, | |
| S41,S41A,S42,S43,S43A,S47,S47A,S50,S58, | |
| S61,S62,S64,S65,S65A, | |
| S72,S80,S81,S86,S100,S110,S120,S121,S130,S136, | |
| S145,S152,S188, | |
| SW40,SW189,SW229, | |
| SF123, | |
| FPS41,FPS19, | |
| SFD13,SFD22, |
| The basic performance of gasket | |||
| Material | Max Use Temperature |
Hardness | Application Media |
| NBR | 110ºC | 76±2 | alkanes,alaenes and other non-polar media; fuel oil and other mineral oil; animal and vegetable oils; hot water,salt water,etc |
| H-NBR | 140ºC | 76±2 | |
| NBR-HT | 130ºC | 76±2 | |
| EPDM | 150ºC | 80±2 | water,steam,atmospheric,ozone; non-petroeum-based lubricants; weak acid, weak base,ketones,alcohols,polar medium,etc |
| EPDM-HT | 170ºC | 80±2 | |
| VITON A | 180ºC | 80±2 | hot oil, acid,alkali,organic solvent |
| VITON G | 200ºC | 80±2 | strong acid and alkali,hot oil,saturated steam |
| material | application |
| SUS304 / SUS316L | Purified water, river water, food oil, mineral oil |
| Titanium / Pal ladium | Sea water, salt water, salinized substance |
| Hadtelloy Alloy / C-276 | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Ni / Nickel | High temperature and high concentration caustic soda |
