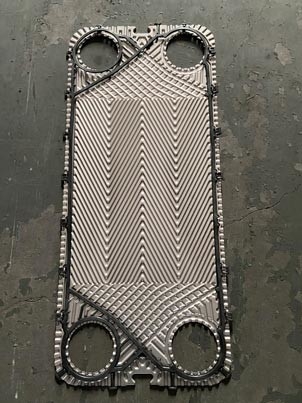

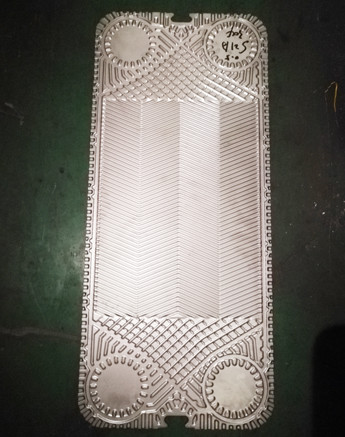

Sondex S21A Titanium Gasket Heat Exchanger Plate Equipment Accessories

Efficient heat transfer equipment accessories sondex S21A gasket plate heat exchanger price with good price

Aiprel Features and benefits

Experience the benefit of an individually customized solution that perfectly matches your requirements and lowers your energy consumption.

High performance and a low pressure drop eliminate unnecessary burdens on your system and optimize overall system performance.

We design single-pass solutions when possible, as they are the preferred choice for almost all duties. With all connections on the head you do not need to disconnect the heat exchanger from the piping to perform inspection, cleaning, or service.

The design results in a compact solution with a small footprint, simple installation, and easy access for maintenance.

Technical specifications

Conections from DN25 to DN600 (1" to 24")

Frames designed according to FEA and PED 2014/68/EU (EN13445) and ASME sec VIII, Div. 1 construction standards

Plate materials: AISI 304/316L, titanium, SMO, Hastelloy*

Gasket materials: EPDM-HT, NBR-HT, Viton*,FKM

Plate lengths up to 5.5 m (18 ft)

Flow rates up to 7,200 m3/h (31,700 gpm)

Working pressure up to 35 bar (500 psi)

Working temperatures from -20 °C to 180 °C (-4 °F to 356 °F)

*Other materials are available upon request.

Aiprel provide all models of Sondex plates and gaskets replacements.In the process of development, our company has condensed the core cultural essence of 'service and quality, management innovation and efficiency', and meticulously manufactured high-quality S47 plate to contribute and repay the society in the process of continuous innovation and development. Our company is committed to building a team with unity, scientific division of labor, tacit cooperation, organic complementarity, communication, showing high morale and working with higher efficiency.

Basic information

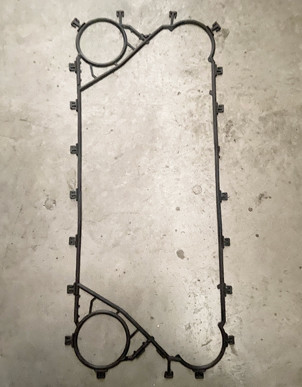

Plate heat exchanger gasket is one of the important parts of plate heat exchanger, which can produce plastic deformation and have certain strength.

Propellent's gaskets are customized to fit the customer's working conditions and are manufactured by a professional factory in a specified size.

Sondex Model List as below.

material	application
SUS304 / SUS316L	Purified water, river water, food oil, mineral oil
Titanium / Pal ladium	Sea water, salt water, salinized substance
Hadtelloy Alloy / C-276	Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
Ni / Nickel	High temperature and high concentration caustic soda



Sondex S21A Efficient heat transfer equipment accessories refrigerator evaporator plate  introduction of plate heat exchanger manufacturer:



Aiprel specializes in heat exchangers, heat exchangers accessories, manufacturing, sales, and service.
We are a genuine original PHE manufacturer with all components are produced in our own factory and complete end products.
We passed the ISO9001: 2000 Quality System Certification, ISO14001: 2004 Environmental System Quality Certification. Our registered capital is 50.00 million, and annual revenue of over RMB 200 million.

We can also produce replacement parts specific for various brand products. The replacement gaskets and plates are suitable for ALFA, GEA, APV, Viacrb, Sondex, SWEP, Funke, Hisaka, Sigma, Accessen, etc . In 2012, Aiprel established its heat exchanger service center to carry out maintenance of plate heat exchangers, chemical cleaning, test, renovation and other services. Besides, Aiprel is deploying global service network to become a global heat exchanger service expert and respond customers at any time anywhere.

For almost all processing applications concerning the heating and cooling, evaporating and condesing duties. Aiprel makes the custom design solution of plate heat exchangers and fluid handling equipment supply, helping the industrial users to achieve better heat transfer and energy saving.

With all the manufacturing plants together of over 100,000 square meters, producing over 20,000 heat exchangers and milloins heat exchanger accessories, making us one of the world's largest heat exchange equipment and accessories manufacturers.



FAQs

1. Are you a factory or trader?

We have been producing evaporater and condesation ,plate heat exchaner ,plate(tube) heat exchanger units etc for twelve years ,as same time ,we can purchase related products and facilities for you too.

2. How will the goods be delivered?

Shipping by sea,by air,by international express like TNT,DHL,UPS,etc FOB ,CIF ,... ,We have wholly-owned international logistics co.,Ltd ,with qualification,welcome your inquiry !

3. How about the payment terms?

ou can pay money by T/T L/C. in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.

4. How about your delivery time?

Generally, it will take 3 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
