| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO9001 |
| Model Number: | APV J092 |
| Minimum Order Quantity: | 20 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton 73*52*45CM |
| Delivery Time: | 1weeks |
| Payment Terms: | L/C, T/T, D/A |
| Supply Ability: | 5,000 Units Per Weeks |
| NAME: | APV J092 | Application: | Heater Parts,universal Vehical,Heat Exchange,Industry Heating Process |
|---|---|---|---|
| Plate Material: | Titanium,SS304,316L,254SMO | Plate Thickness: | 0.5/0.6/0.7mm,1mm,0.5mm To 0.7mm Available |
| Max Pressure: | 1MPa (10 Bar) | Medium: | Purity Medium,oil,gas,water |
| Used: | Food,milk | Gasket Material: | EPDM |
| High Light: | Industrial Transfer Case Gasket,Heating Plate Heat Exchanger Gasket,Plate Heat Exchanger Gaskets |
||

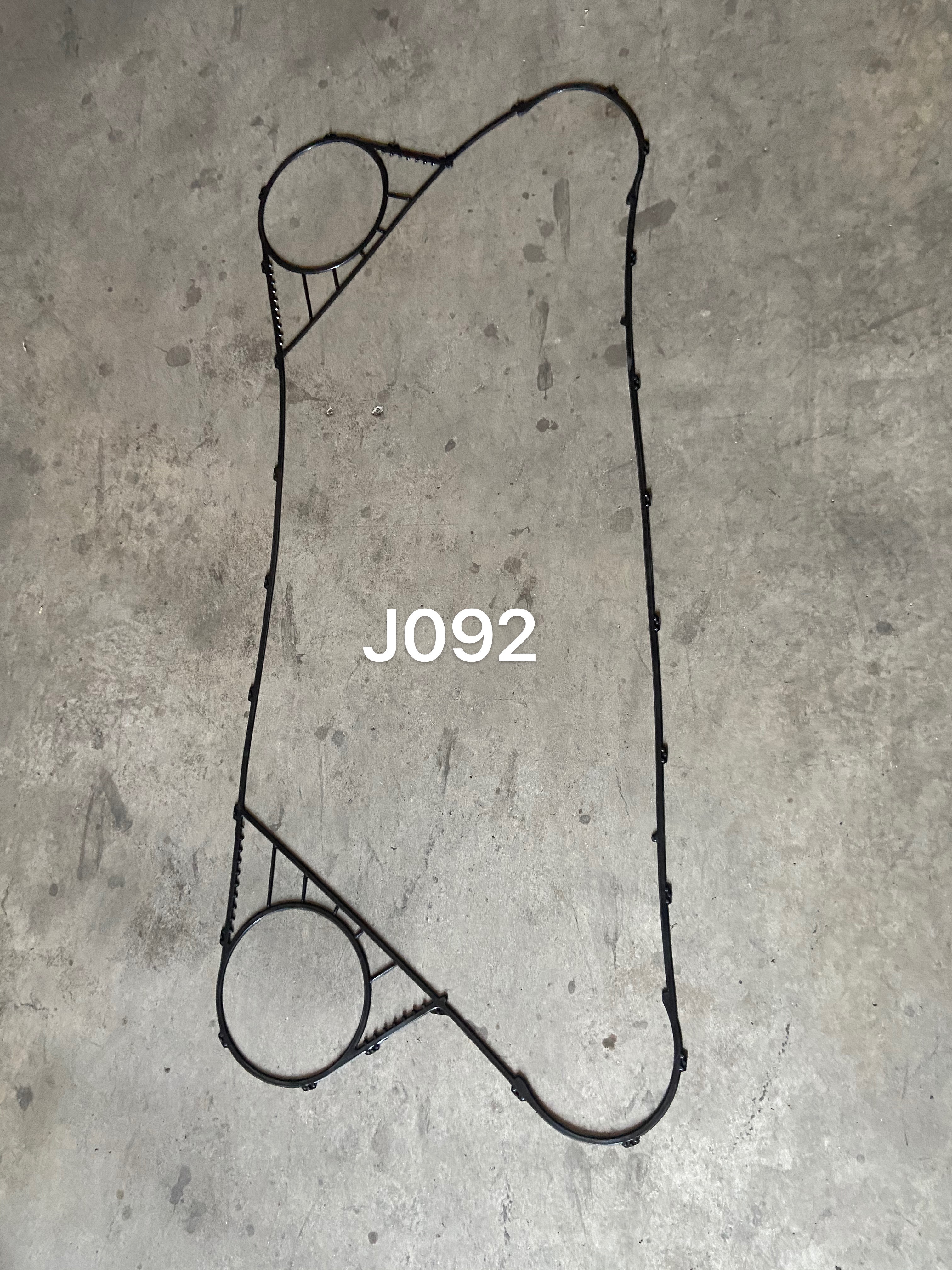

Small heat exchanger gaskets and plate heat exchanger replace APV J092 factory price

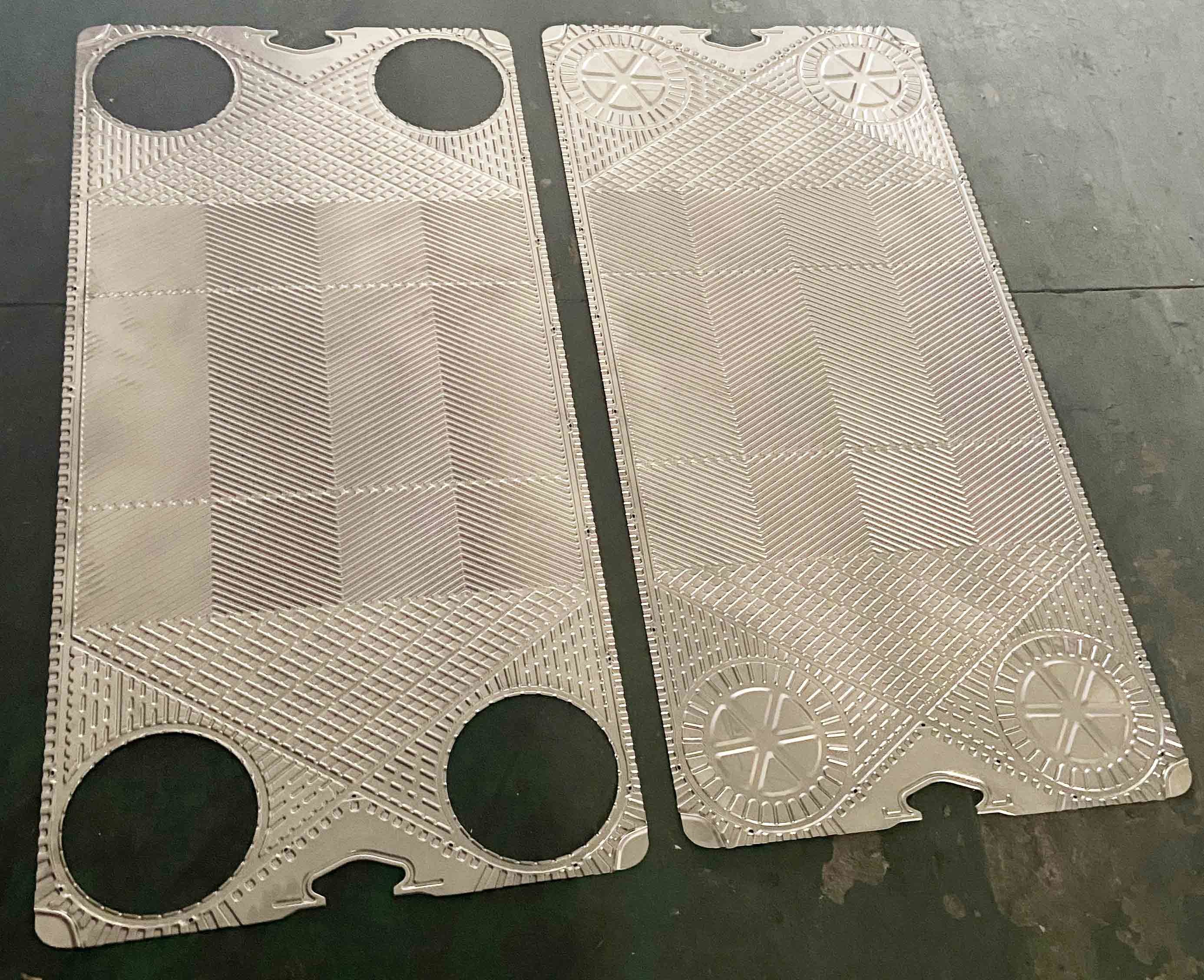

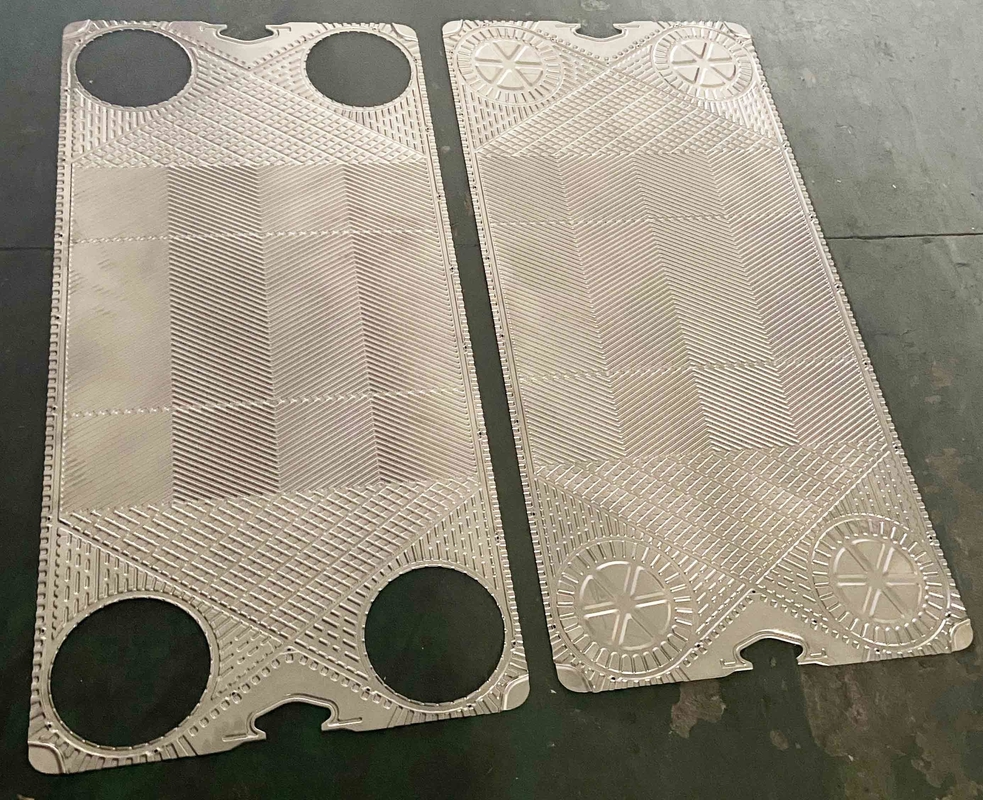

1.Aiprel plates provide a special Double Wall Design.
2.Two overlapping traditional plates are combined by laser welding at 4 corners to form a double-layer plate; this allows timely awareness from the external if one of the plates has a penetrating leakage. This design effectively lowers work-safety risks resulting from the mixing of 2 media. 3.Double-plates are suitable for processes that strictly prohibit mixing process fluids, such as water for hospital use or cooling water for the pharmaceutical industry, food industry, chemicals, gun powder, and data centers.
Simple Structure; easy to repair, maintain, and install.
High heat-transfer efficiency; even distribution of fluids; less prone to scaling and clogging.
Can be used as an evaporator or condenser.
Minimum differential temperature of as low as 0.5°C.
Aiprel provides plates made of SS304/ SS316L/ SS317/ SS310/ SS904/ SMO254/ Hastelloy C276,Ti,Ti-PD; for strong resistance against corrosion.
Low pressure loss
Long service lifespan; with reserved space for expansion/curtailment of plates based on actual needs.
NBR, EPDM, VITON, FKM, PTEF, Versatile gasket options for optimal selection based on requirements of customer fluids, ensuring strict sealing of fluids within the heat exchanger.
One-for-all design for different purposes, especially for hotels, where water use can be adjusted alternatively for peak/off-peak hours based on different demands.
A wide product range satisfies customers having different port diameters ranging from DN25 (1”) to DN500(20”).
Diverse port selections.
Suitable for fluids having high viscosity or corrosive properties (such as sulfuric acid).
Made in Taiwan, short delivery time.
Strict quality control of products and a well-experienced after-sales service team allow for shortened maintenance time.
| material | application |
| SUS304 / SUS316L | Purified water, river water, food oil, mineral oil |
| Titanium / Pal ladium | Sea water, salt water, salinized substance |
| Hadtelloy Alloy / C-276 | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Ni / Nickel | High temperature and high concentration caustic soda |
| Brand/Maker | Series |
| APV | A055,A085,A145 |
| H12,H17,H20,H25,H30 | |
| SPX | N25,N35,N50, |
| J060,J092,J107,J185, | |
| M60,M92,M107,M185, | |
| Q030D,Q030E,Q055D,Q055E,Q080D,Q080E, | |
| K34,K55,K71, | |
| B063L,B063S,B110L,B110S,B134L,B134S,B158L,B158S,B205L,B205S, | |
| SR1,SR2,SR3,SR6AA,SR6AG,SR6GH,SR6GL,SU6GL,SR9,SD9,SR14AD, | |
| SR14AH,SR14AN,SR14AP,SR14GD,SR14AG,AR14PP,SR23AO,SR23PV,SR23VO,SR38,SR95, | |
| R5,ER5,R6,R8,R10,R14,R23,R40,R55,R66,R86,R89,R106,R145,R235,R405, | |
| P105,P190, | |
| TR9AL,TR9AV,TR9GL,TR9GN, | |
| LR9AL,LR9GL,LR9GN,LD9AL,LD9GL,LD9GN, | |
| D37,U2,T4,TR1,HMB,HX,WHX,JUNIOR,CHF130,FFPE,PESERIII,RFE,RFFPE,SR15PE,CS235,CZ450A |
Introduction of plate heat exchanger manufacturer:
Aiprel Gasket Plate Heat Exchangers – Application Fields
oil and gas industry
Petrochemical industry
Chemical Industry
Energy Industry
Semiconductor Industry
Food industry
Pharmaceutical Industry
steel mill
Textile Industry
Marine
HVAC
Hotel, Schools, life water.
FAQs
1. Are you a factory or trader?
We have been producing evaporater and condesation ,plate heat exchaner ,plate(tube) heat exchanger units etc for twelve years ,as same time ,we can purchase related products and facilities for you too.
2.How will the goods be delivered?
Shipping by sea,by air,by international express like TNT,DHL,UPS,etc FOB ,CIF ,... ,We have wholly-owned international logistics co.,Ltd ,with NVOCC qualification,welcome your inquiry !
3.How about the payment terms?
ou can pay money by T/T L/C. in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
4. Is there after-sales service of your products?
Yes. If you hve any problem about the products, please just at ease and contact us at any time.
5. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
6. How about your delivery time?
Generally, it will take 3 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
