| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO9001 |
| Model Number: | S14A |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 Weeks |
| Supply Ability: | 100 Sets Per Month |
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Application: | Heater Parts,Heating Or Cooling,Heat Transfer,HVAC,Sugar | Structure: | Plate Heat Exchanger |
| Maximum Working Pressure: | 2.5MPa | Plate Material: | 254SMO,SS304/SS316/SS316L/Titanium/ALLOY C276 |
| Gasket Material: | EPDM,NBR EPDM FKM,NBR | Plate Thickness: | 0.5-1.0mm |
| High Light: | SS316L sondex plate heat exchanger plate,S14A sondex plate heat exchanger plate,SS316L Heat Exchanger Gaskets replacement |
||

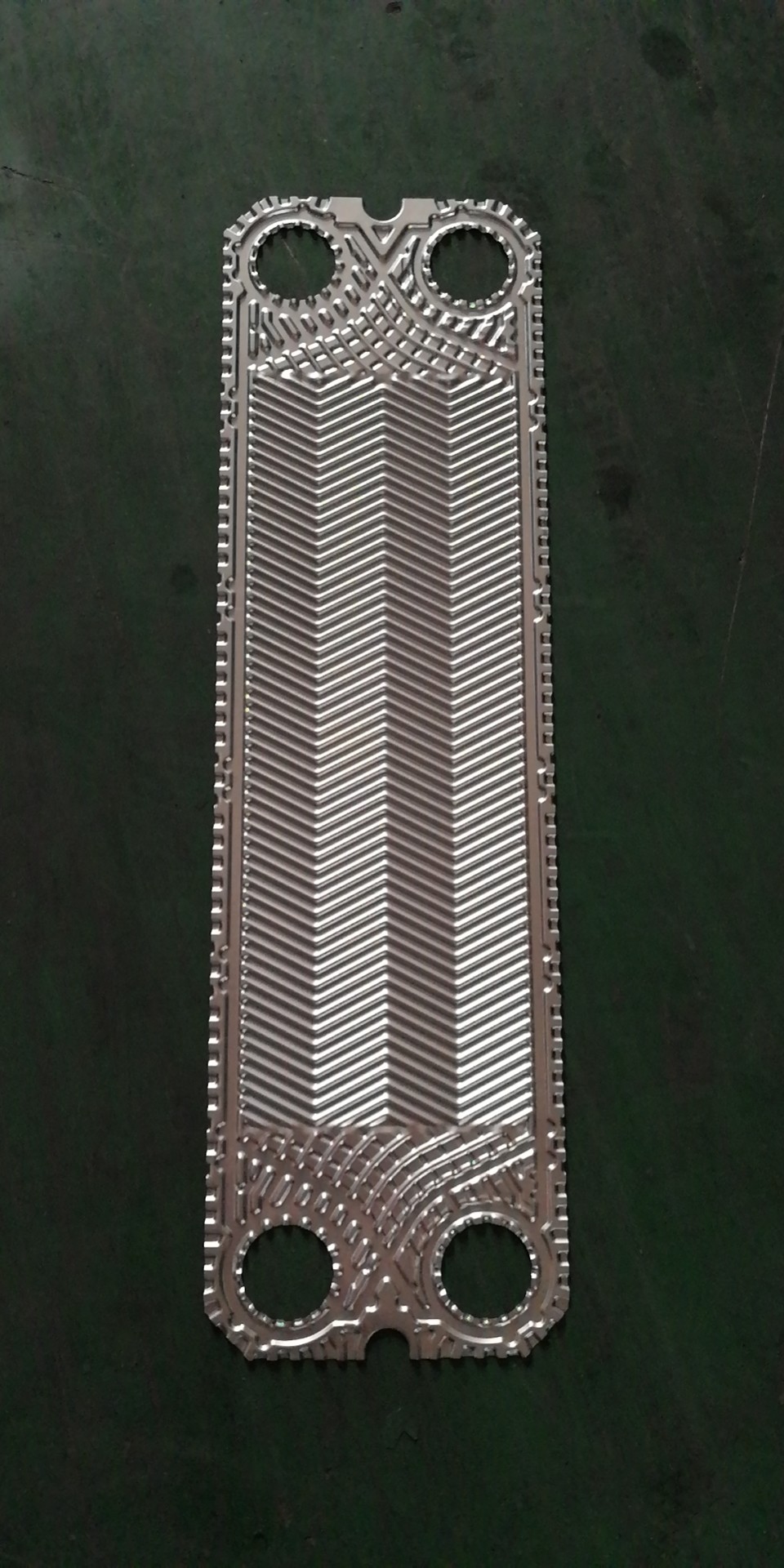

Sondex S14A Replace Heat Exchanger Gaskets with SS316L 304 TI Plates
Sondex S14A Replace Heat Exchanger Gaskets with SS316L 304 TI Plates Introduction to sheet material and application:
| material | application |
| SUS304 / SUS316L | Purified water, river water, food oil, mineral oil |
| Titanium / Pal ladium | Sea water, salt water, salinized substance |
| Hadtelloy Alloy / C-276 | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Ni / Nickel | High temperature and high concentration caustic soda |
| Brand/Maker | Series |
| Sondex | S4A,S7,S7A,S8,S8A,S9A, |
| S14,S14A,S15,S17,S18,S19,S19A, | |
| S20,S20A,S21,S21A,S22,S23,SF25 (Glued),SF25A,SF25, | |
| S30,S31A,S35,S36,S37,S38,S39, | |
| S41,S41A,S42,S43,S43A,S47,S47A,S50,S58, | |
| S61,S62,S64,S65,S65A, | |
| S72,S80,S81,S86,S100,S110,S120,S121,S130,S136, | |
| S145,S152,S188, | |
| SW40,SW189,SW229, | |
| SF123, | |
| FPS41,FPS19, | |
| SFD13,SFD23,SFD7 |

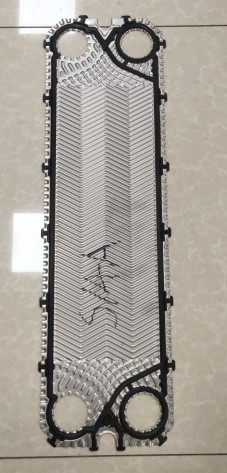

Structure of EPDM and NBR Gasket for Sondex S14A S19A S29A S62 gasket plate heat exchanger
Plate heat exchanger is made up by heat transfer plate, sealing gasket, compression plate, up and down guide bar, pillar, grip bolts and other major parts.
Sondex S14A Replace Heat Exchanger Gaskets with SS316L 304 TI Plates design selection:
(1) Physical parameters of cold and hot media, such as pH, chloride content, viscosity, density, thermal conductivity, specific heat, etc.
(2) The inlet and outlet temperatures of cold and hot media.
(3) Flow of cold or hot medium or flow of one of them.
(4) Cold and hot medium pressure loss requirements.
(5) Intrinsic characteristics of plate heat exchangers, such as plate material, seal gasket material, etc
Sondex S14A Replace Heat Exchanger Gaskets with SS316L 304 TI Plates Advantages
1, High quality and competitive price , fast delivery.
2, One year life time guarantee.
3, As manufacturer, we can supply the best quality replace parts for some brands to help you save cost.
4, Customized service, According to the specific requirements of new products,contact us
What are the advantages of Plate Heat Exchanger?
Sondex S14A Replace Heat Exchanger Gaskets with SS316L 304 TI Plates Material and operating conditions of gasket:
| Material | Application | working temperature |
| NBR | Water, sea water, mineral oil, salt water | -15—130℃ |
| HNBR | High temperature mineral oil, high temperature water | 15—140℃ |
| EPDM/HEPDM | Water,Hot water, steam, acid, alkali,caustic | -25—150℃ |
| Viton／Fluorine Rubber | Strong acid, strong alkali, mineral oil, grease and fuel oil, etc | 5—200℃ |
| NEOPRENE | Acid, alkali, mineral oil, low molecular weight aliphatic hydrocarbon | 35—130℃ |
| Silicon Rubber | High temperature and some corrosive environments | 65—200℃ |
Sondex S14A Replace Heat Exchanger Gaskets with SS316L 304 TI Plates heat exchanger manufacturer:
FAQs
1. Are you a factory or trader?
We have been producing evaporater and condesation ,plate heat exchaner ,plate(tube) heat exchanger units etc for twelve years ,as same time ,we can purchase related products and facilities for you too.
2.How will the goods be delivered?
Shipping by sea,by air,by international express like TNT,DHL,UPS,etc FOB ,CIF ,... ,We have wholly-owned international logistics co.,Ltd ,with NVOCC qualification,welcome your inquiry !
3.How about the payment terms?
ou can pay money by T/T L/C. in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
4. Is there after-sales service of your products?
Yes. If you hve any problem about the products, please just at ease and contact us at any time.
5. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
6. How about your delivery time?
Generally, it will take 3 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
