| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO9001 |
| Model Number: | M6M |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10,000 Sets Per Month |
| Type: | Gasket | Application: | Heater Parts,Refrigeration Parts,universal Vehical,Heat Exchange,Industry Heating Process |
|---|---|---|---|
| Warranty: | 1 Year | Gasket Material: | EPDM,NBR,HEPDM,FKW,HNBR,NBR-HT |
| Plate Thickness: | 0.5/0.6/0.8mm,1mm,0.5mm To 0.7mm Available | Max Pressure: | 2MPa (20 Bar) |
| Medium: | Purity Medium,oil,gas,air,water | ||
| High Light: | Equal Clip On Epdm Gasket,Heat Exchanger Epdm Gasket,0.8mm Plate Epdm Gasket |
||

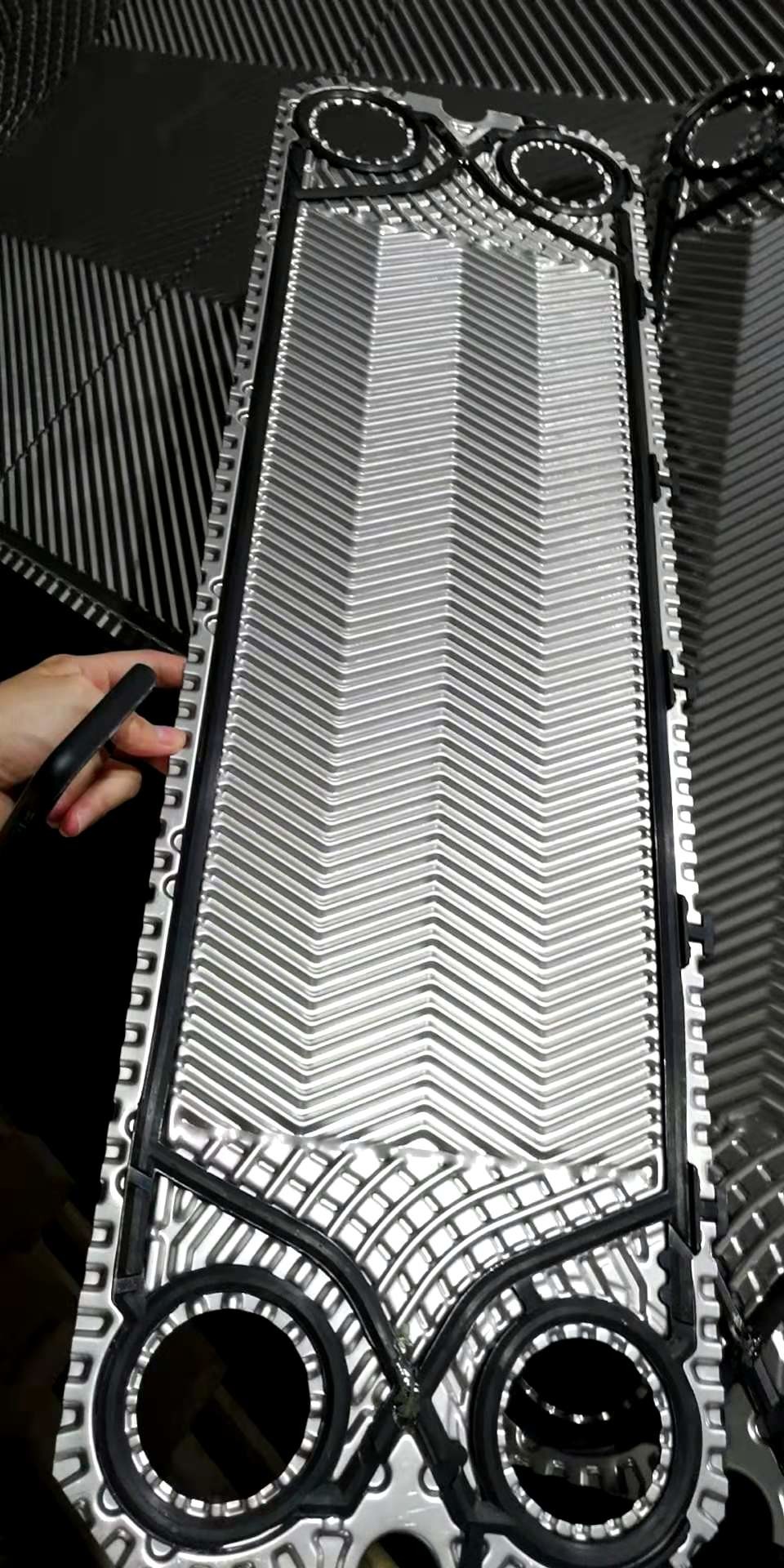

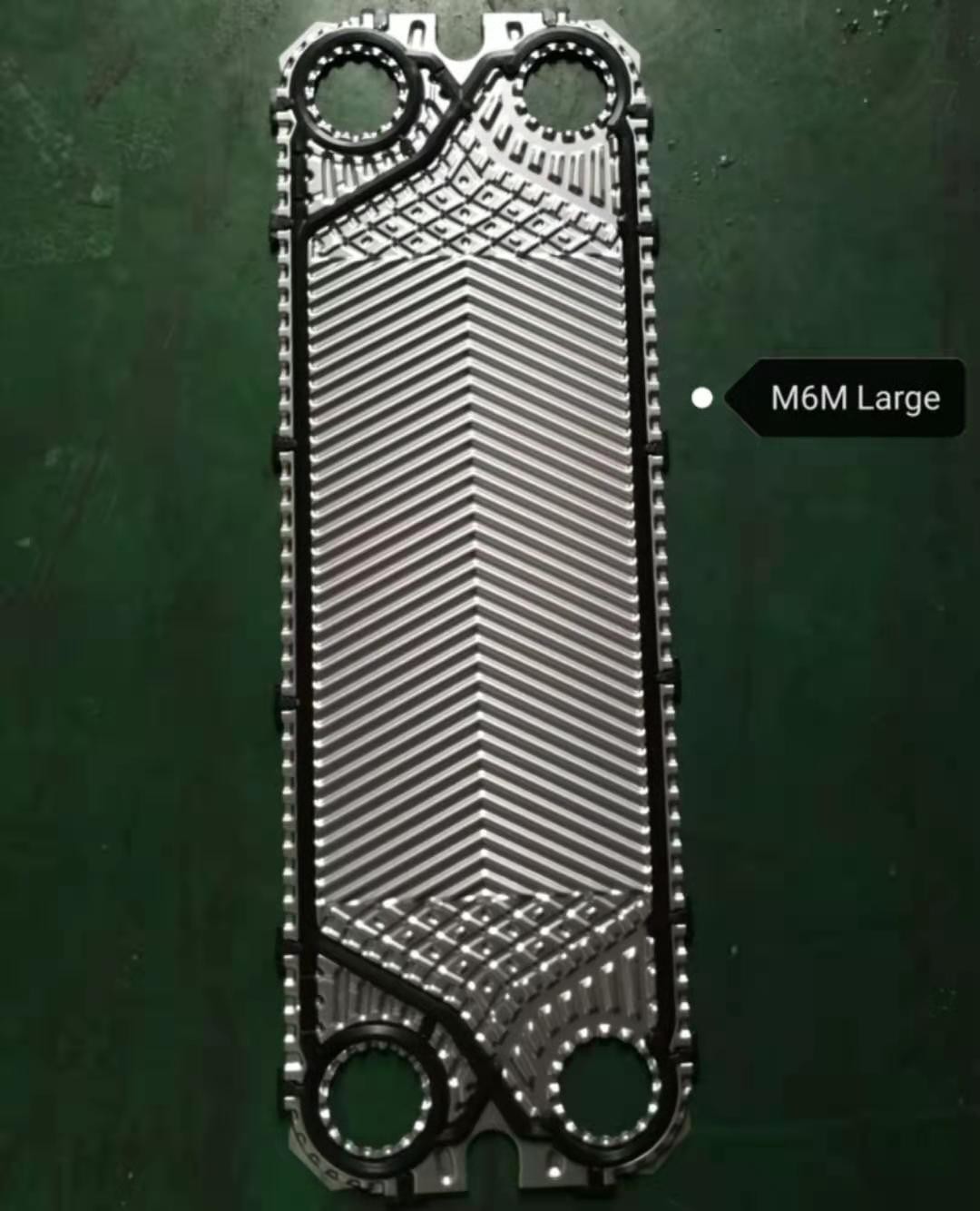

As a professional plate heat exchanger plate manufacturer and seller, AIPREL can produce most of the same material specification plate heat exchanger plate and heat exchanger gasket of afar, and provide afar alternative parts services for more than hundreds of application companies.
We supplies ALFA heat exchanger gaskets and plates replacements. ALFA Model List as below.
| (ALFA) | ||||||
| ALFA Series | Plate area (m²) |
Plate length (mm) |
Plate width (mm) |
Longitudinal center distance (mm) |
Transverse center distance (mm) |
Diameter (mm) |
| ALFA M3 | 0.032 | 431 | 125.5 | 357 | 60 | 25 |
| ALFA M6 | 0.14 | 750 | 250 | 640 | 140 | 60 |
| ALFA M6-M | 0.14 | 750 | 250 | 640 | 140 | 60 |
| ALFA M10-B | 0.24 | 879 | 375 | 719 | 223 | 100 |
| ALFA M10-M | 0.22 | 879 | 375 | 719 | 223 | 100 |
| ALFA M15-B | 0.62 | 1500 | 500 | 1294 | 298 | 140 |
| ALFA M15-M | 0.62 | 1500 | 500 | 1294 | 298 | 140 |
| ALFA M20-M | 0.85 | 1750 | 625 | 1478 | 365 | 205 |
| ALFA MX25B | 1.5 | 2250 | 750 | 1939 | 439 | 230 |
| ALFA MX25M | 1.5 | 2250 | 750 | 1939 | 439 | 230 |
| ALFA M30 | 1.85 | 2245 | 995 | 1845 | 595 | 325 |
| ALFA CLIP6 | 0.18 | 1000 | 250 | 859 | 130 | 51 |
| ALFA CLIP8 | 0.38 | 1250 | 375 | 1095 | 220 | 78 |
| ALFA CLIP10 | 0.62 | 1500 | 500 | 1324 | 324 | 100 |
| ALFA TS6-M | 505 | 327 | 380 | 200 | 80 | |
| ALFA TL6 | 1036 | 150 | ||||
| ALFA TL10 | 1338 | 225 | ||||
| ALFA TL10P | 1338 | 225 | ||||
| ALFA T20-B | 0.9 | 1750 | 625 | 1478 | 353 | 205 |
| ALFA T20-BW | ||||||
| ALFA T20-M | 0.85 | 1750 | 625 | 1478 | 365 | 205 |
| ALFA T20-MW | ||||||
| ALFA T20-P | ||||||
| ALFA TS20-M | 0.283 | 900 | 625 | 698 | 363 | 195 |
| ALFA T50M | ||||||
| ALFA P-01 | 431 | 126.5 | 357 | 60 | 32 | |
| ALFA P-2 | 0.2 | 710 | 248 | 593 | 135 | 65 |
| ALFA P5 | 0.14 | 800 | 325 | 55 | ||
| ALFA P12 | ||||||
| ALFA P13 | 0.18 | 920 | 290 | 800 | 165 | 60 |
| ALFA P14 | 1032 | 264 | ||||
| ALFA P15 | 0.53 | 1372 | 500 | 1200 | 324 | 115 |
| ALFA P16 | 0.8 | 1360 | 795 | 1200 | 530 | 175 |
| ALFA P17 | 1.41 | 2080 | 795 | 1865 | 530 | 175 |
| ALFA P20 | ||||||
| ALFA P21 | 0.12 | 715 | 250 | 591 | 135 | 70 |
| ALFA P22 | 0.2 | 710 | 248 | 593 | 135 | 65 |
| ALFA P22 CLIP | 0.12 | 715 | 250 | 591 | 135 | 70 |
| ALFA P26 | 0.12 | 715 | 250 | 591 | 135 | 70 |
| ALFA P30 | 630 | 122 | 570 | 50 | 25 | |
| ALFA P31 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
| ALFA P32 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
| ALFA P36 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
| ALFA P41 | ||||||
| ALFA P45 | 1200 | 324 | ||||
| ALFA P171 | 1.41 | 2080 | 795 | 1865 | 530 | 175 |
| ALFA PAR01 | ||||||
| ALFA PAR22 | ||||||
| ALFA T200 | ||||||
| ALFA P225 | ||||||
| ALFA P252 | ||||||
| ALFA P132 | 0.18 | 920 | 290 | 800 | 165 | 60 |
| ALFA P135 | 800 | 165 | ||||
| ALFA A3 | 630 | 122 | 570 | 50 | 25 | |
| ALFA A10 | 1205 | 290 | ||||
| ALFA A10B | 0.24 | 873 | 388.5 | 703 | 234 | 100 |
| ALFA A15 | 1315 | 350 | ||||
| ALFA A15B | 0.75 | 1558 | 588.5 | 1315 | 350 | 160 |
| ALFA A20 | 1.07 | 1835 | 715 | 1550 | 430 | 200 |
| ALFA A20B | 1.07 | 1843 | 718.5 | 1550 | 430 | 210 |
| ALFA A30 | 2190 | 890 | 1845 | 540 | 300 | |
| ALFA A35 | 2 | 2303 | 1220 | 1850 | 765 | 350 |
| ALFA AK20 | 0.5 | 1220 | 669 | 930 | 365 | 210 |
| ALFA AM10 | 0.43 | 1247 | 487 | 1046 | 290 | 100 |
| ALFA AM20 | 0.79 | 1754 | 669 | 1450 | 365 | 200 |
| ALFA AM20B | 0.79 | 1754 | 669 | 1450 | 365 | 210 |
| ALFA AM20BFM | ||||||
| ALFA AM20HBM | ||||||
| ALFA AM20SFM | ||||||
| ALFA AX30 | 1.58 | 2208.5 | 909 | 1836 | 540 | 285 |
| ALFA AX30B | ||||||
| ALFA H7 | 0.4 | 1233 | 425.5 | 1054 | 254 | 80 |
| ALFA H10 | 0.65 | 1482 | 533.5 | 1221 | 348 | 100 |
| ALFA JWP26 | 0.12 | 715 | 250 | 591 | 135 | 70 |
| ALFA JWP36 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
| ALFA MA30M | 1.5 | 2250 | 1000 | 1811 | 561 | 332 |
| ALFA MA30S | 2232 | 970 | 1815 | 555 | 295 | |
| ALFA MS6 | ||||||
| ALFA MS10 | ||||||
| ALFA MS15 | ||||||
| ALFA EC350 | ||||||
| ALFA EC500 | ||||||
| ALFA EC650 | ||||||
| ALFA EC700 | ||||||
| ALFA M6MW | 640 | 140 | ||||
| ALFA M6MX | 640 | 140 | ||||
| ALFA M6MD | 640 | 140 | ||||
| ALFA M10BW | 0.24 | 879 | 375 | 719 | 223 | 100 |
| ALFA M10BD | ||||||
| ALFA M10BWREF | ||||||
| ALFA M20MW | 1478 | 353 | ||||
| ALFA MK15BW | ||||||
| ALFA M15F | ||||||
| ALFA M15E | ||||||
| ALFA MA30W | ||||||
| ALFA A15BW | 0.75 | 1150 | 585 | 1315 | 350 | 160 |
| ALFA AX30BW | ||||||
| ALFA AM20DW | ||||||
The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
| PLATE MATERIAL | SS304, SS316, 254SMO, 904L, C276, Titanium, Nickel, Incoloy825 |
| PLATE THICKNESS | 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm |
| GASKET MTERIAL | EPDM, NBR, HNBER, HEPDM,FKW |
| GASKET ASSEMBLY | Clip on, Lock in, fasten, Glued |
| FRAME MATERIAL | Carbon steel, Stainless steel, Stainless steel coat |
| NOZZLE | Flange, Rubber insert, Metal insert, Thread, Clamp |
| CONNECTION SIZE | DN15~DN500 |
| CONNECTION STANDARD | Custiomized |
| COLOR | Custiomized |
| APPLICATION | HVAC, Power, Suger, Marine, Chemical, etc |
Due to the uncertainty of heat exchanger selection and design, the price displayed is a range. For details, please contact customer service. If you do not communicate in the previous period, the customer service cannot accept it.
Advantage:
Comparing to other other types of heat exchanger, plate heat exchangers have larger surface area. They are composed of a number of thin metal plates compressed together. Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid. Different materials have different channels and in their respective flow path alternately. They won't leak to the outside. The number of the heat transfer plate is determined according to the amount of fluid, physical properties of fluid,the pressure drop and thermal condition. Each plate is corrugated to increase the maximum heat transfer area.
