| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO |
| Model Number: | TRANTER |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10,000 Units Per Month |
| Warranty: | 1 Year | Maximum Working Pressure: | 2.0 Mpa |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Condition: | New |
| Application: | Heating Or Cooling,Heat Transfer,HVAC,Refrigeration Parts,Heater Parts | Gasket Material: | EPDM,HNBR,FKM,NBR EPDM FKM,FDA Stan |

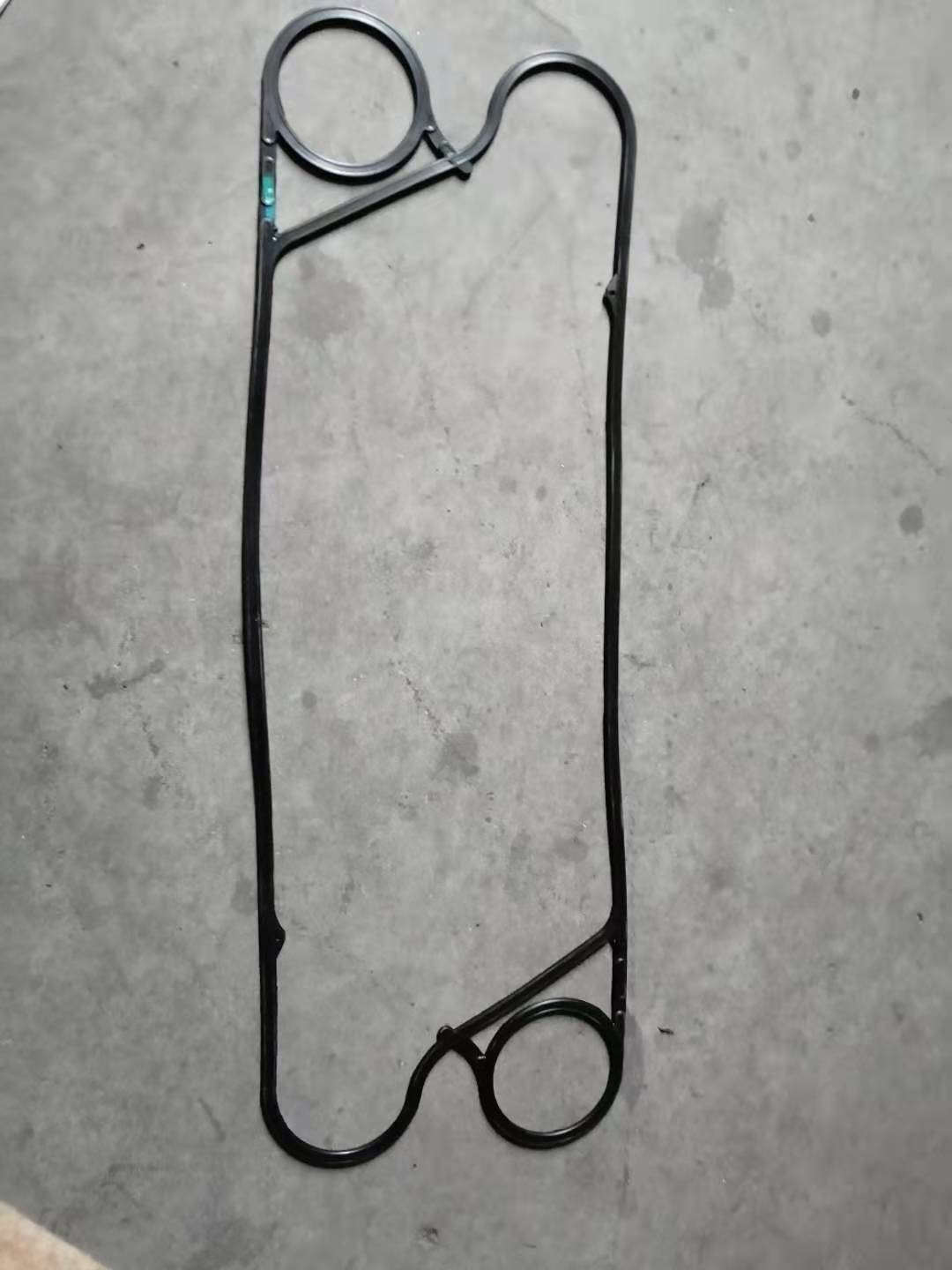

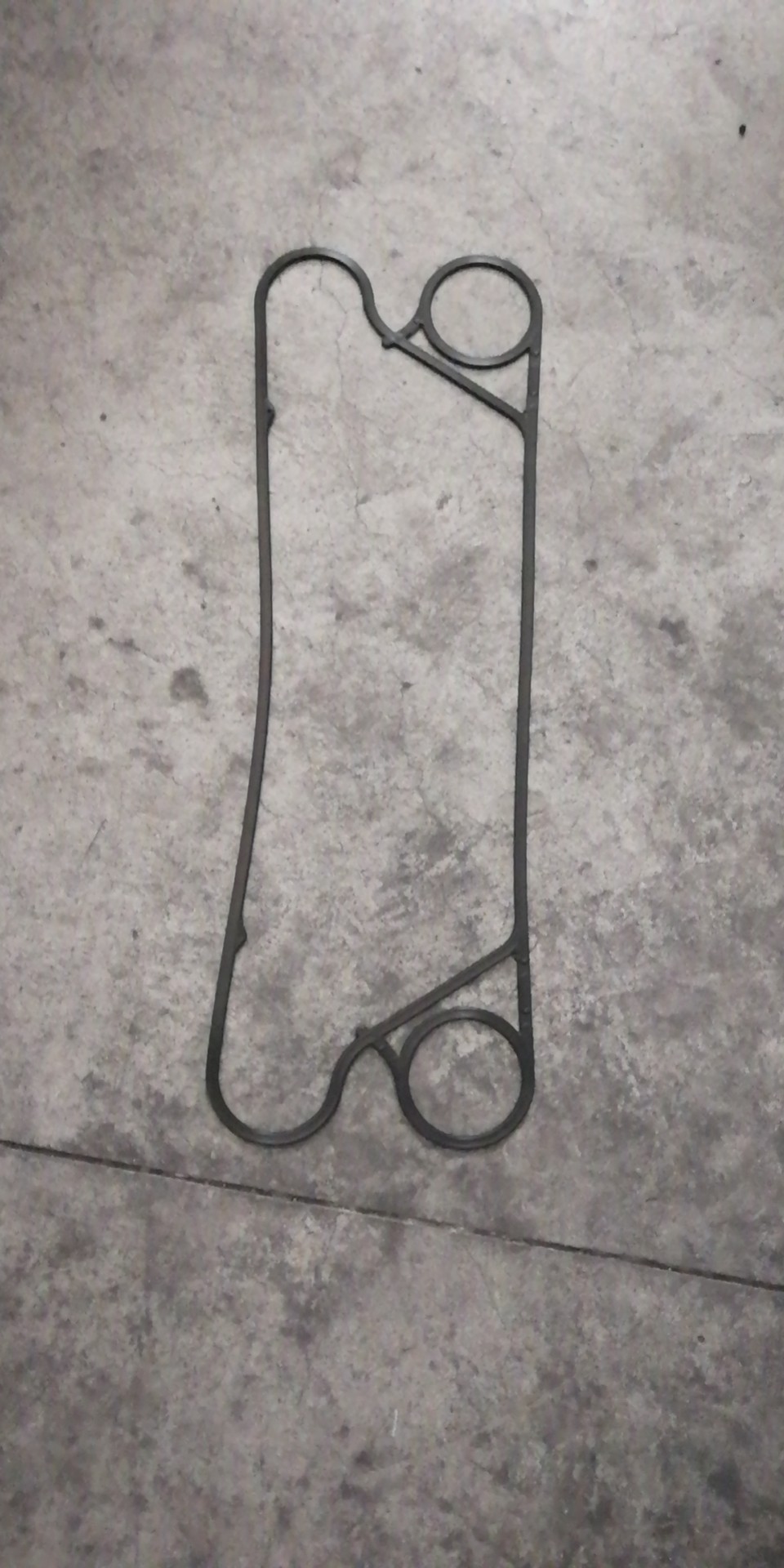

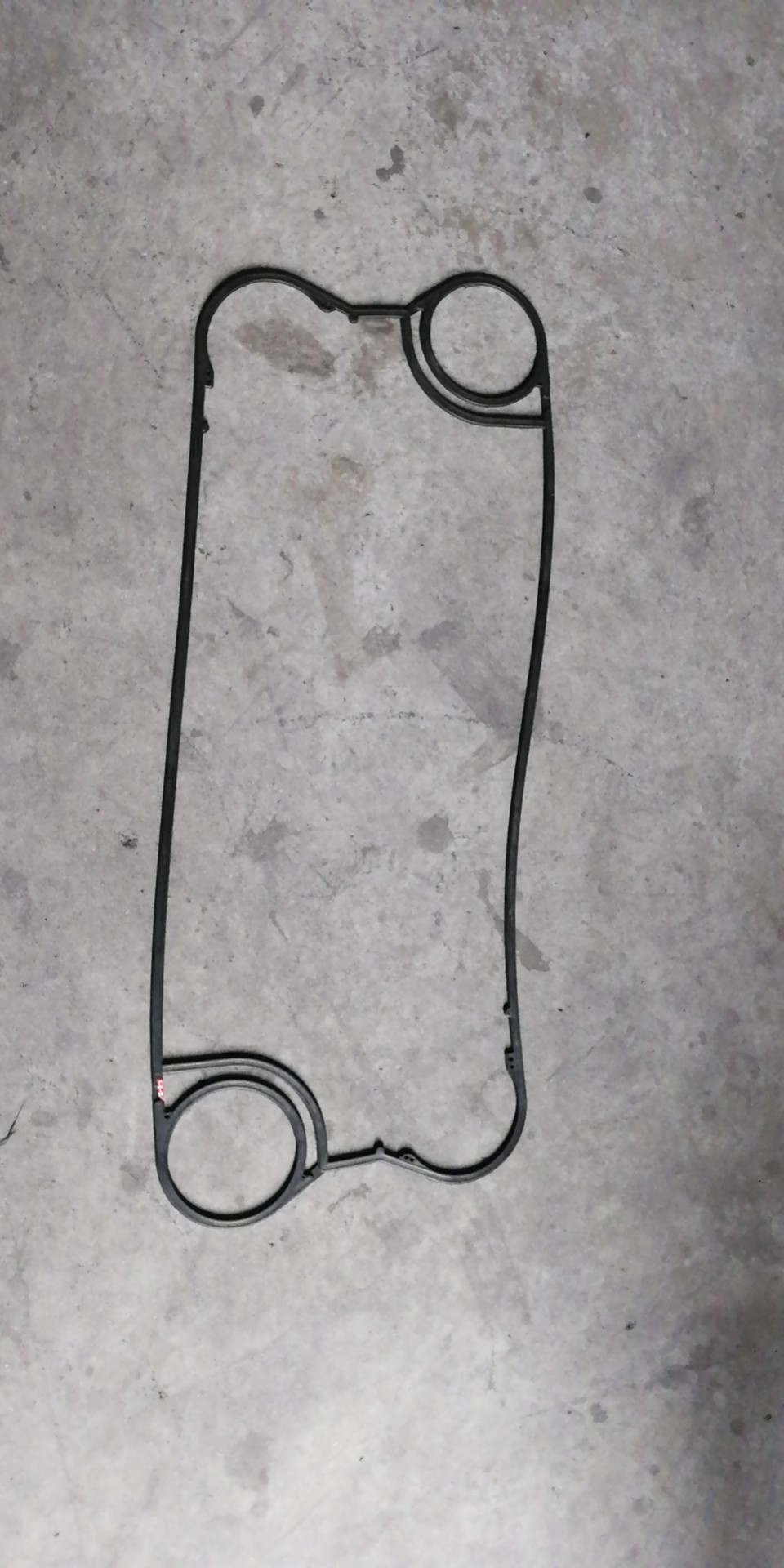

| High Light: | GLP13 Heat Exchanger Gaskets,EPDM Heat Exchanger Gaskets,2.0Mpa Heat Exchanger Gaskets |
||
1. High heat transfer coefficient
2. Small footprint and easy maintenance
3. Safe and reliable use
4. Less resistance loss
5. Less heat loss
6. Conducive to the utilization of low temperature heat sources
7. Multiple medium heat exchange
8. Easy to clean and fast
| Brand/Maker | Series |
| TRANTER | GCD006,GCD012,GLD013,GLP013,GCD018,GCP026,GCD030,GCP030, |
| GCP051,GCP054,GCD054,GCD055, | |
| SWEP | GCP060,GCD065,GCD018,GC8,GC12,GL13,GC26,GC30,GC42,GC51,GC60, |
| GL145,GL205,GL230,GL330, | |
| GX7,GX12,GX18,GX26,GX42,GX51,GX60,GX64,GX85,GX91, | |
| GX100,GX118,GX140,GX145,GXD012,GXP018, | |
| GX026,GXD026,GXP026,GXP037,GXD037, | |
| GX042,GXD042,GXP042,GX051,GXP051,GXD051, | |
| GXD060,GXD064,GXD085,GXD091,GXD100,GXP118,GXD140,GXD145, | |
| GFP030,GFP050,GF057,GFP057,GFP080,GFP097,GF097, | |
| GFP100,GFP180,GFP187,GF187, | |
| S3,S8,HX12,HXD012,HX25,HX50,HXD050,HX85,HXD085,HX180,HXD180,HXD145, | |
| GM56,GM59,GM138,GM257,GM276, | |
| TW5,TW10,TW18, | |
| UX01,UX05,UXP005,UXP010,UXP060,UX06T,UX10,UX20,UX40,UXP200,UXP400, | |
| UX80,UXP81,UX801,UXP900, | |
| G12,G28,G30,G48,G50,G55,G65,G66,G75,G78,G85, | |
| G95,G25,G52,G58,G102,G108,G153,G157,G158,G159, | |
| G214,G234,G254,G274,G322,G342,G52,G58,G65, | |
| GF138,GF257,GF276,GF59,MF138,MF257,MF276,MF56,MF59 |
Material and operating conditions of gasket:
| Material | Application | working temperature |
| NBR | Water, sea water, mineral oil, salt water | -15—130℃ |
| HNBR | High temperature mineral oil, high temperature water | 15—140℃ |
| EPDM | Water,Hot water, steam, acid, alkali | -25—150℃ |
| Viton／Fluorine Rubber | Strong acid, strong alkali, mineral oil, grease and fuel oil, etc | 5—200℃ |
| NEOPRENE | Acid, alkali, mineral oil, low molecular weight aliphatic hydrocarbon | 35—130℃ |
| Silicon Rubber | High temperature and some corrosive environments | 65—200℃ |
The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
| PLATE MATERIAL | SS304, SS316, 254SMO, 904L, C276, Titanium, Nickel, Incoloy825 |
| PLATE THICKNESS | 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm |
| GASKET MTERIAL | EPDM, NBR, HNBER, HEPDM,FKW |
| GASKET ASSEMBLY | Clip on, Lock in, fasten, Glued |
| FRAME MATERIAL | Carbon steel, Stainless steel, Stainless steel coat |
| NOZZLE | Flange, Rubber insert, Metal insert, Thread, Clamp |
| CONNECTION SIZE | DN15~DN500 |
| CONNECTION STANDARD | Custiomized |
| COLOR | Custiomized |
| APPLICATION | HVAC, Power, Suger, Marine, Chemical, etc |
Due to the uncertainty of heat exchanger selection and design, the price displayed is a range. For details, please contact customer service. If you do not communicate in the previous period, the customer service cannot accept it.
Advantage:
Comparing to other other types of heat exchanger, plate heat exchangers have larger surface area. They are composed of a number of thin metal plates compressed together. Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid. Different materials have different channels and in their respective flow path alternately. They won't leak to the outside. The number of the heat transfer plate is determined according to the amount of fluid, physical properties of fluid,the pressure drop and thermal condition. Each plate is corrugated to increase the maximum heat transfer area.
