Warranty:: | 12 Months | Plate Material:: | 316L,Titanium,SS304,254SMO,Nickel |
---|---|---|---|
Working Pressure:: | 2.0 Mpa | Gasket Material:: | EPDM,HNBR,FKM,NBR EPDM FKM,FDA Stan |
Application:: | Heating Or Cooling,Heat Transfer,HVAC,Refrigeration Parts,Heater Parts | Frame Material:: | Carbon Steel,Stainless Steel,CS/SS |
High Light: | 254SMO Heat Exchanger Plates,SS316L Heat Exchanger Plates,EPDM Gasket Heat Exchanger Plates |

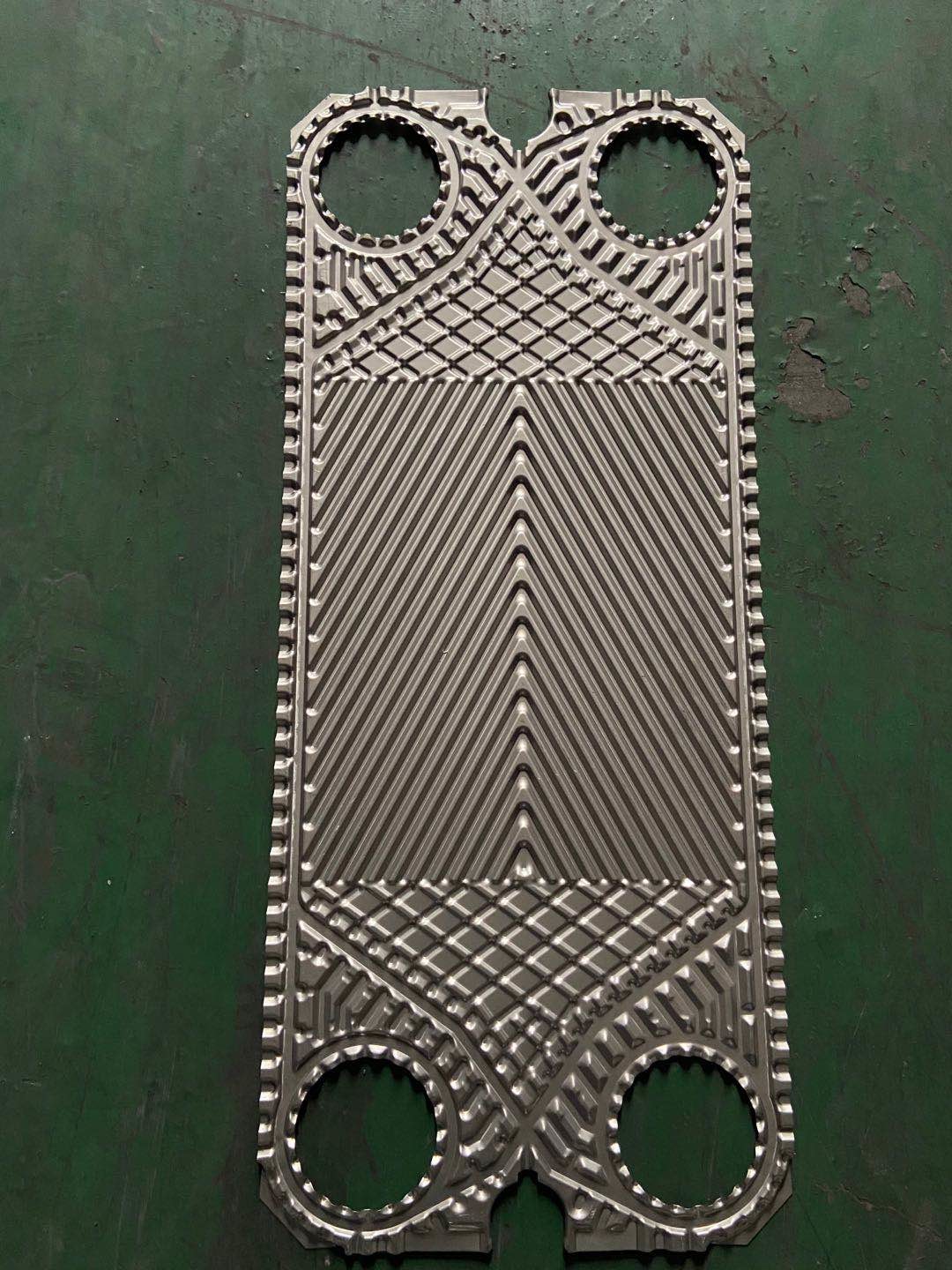

Supply M10M plate heat exchanger parts plate and gasket for hvac industry, cooling industry
As a professional plate heat exchanger plate manufacturer and seller, AIPREL can produce most of the same material specification plate heat exchanger plate and heat exchanger gasket of afar, and provide afar alternative parts services for more than hundreds of application companies.
We supplies ALFA heat exchanger gaskets and plates replacements. ALFA Model List as below.
(ALFA) | ||||||
ALFA Series | Plate area (m²) |
Plate length (mm) |
Plate width (mm) |
Longitudinal center distance (mm) |
Transverse center distance (mm) |
Diameter (mm) |
ALFA M3 | 0.032 | 431 | 125.5 | 357 | 60 | 25 |
ALFA M6 | 0.14 | 750 | 250 | 640 | 140 | 60 |
ALFA M6-M | 0.14 | 750 | 250 | 640 | 140 | 60 |
ALFA M10-B | 0.24 | 879 | 375 | 719 | 223 | 100 |
ALFA M10-M | 0.22 | 879 | 375 | 719 | 223 | 100 |
ALFA M15-B | 0.62 | 1500 | 500 | 1294 | 298 | 140 |
ALFA M15-M | 0.62 | 1500 | 500 | 1294 | 298 | 140 |
ALFA M20-M | 0.85 | 1750 | 625 | 1478 | 365 | 205 |
ALFA MX25B | 1.5 | 2250 | 750 | 1939 | 439 | 230 |
ALFA MX25M | 1.5 | 2250 | 750 | 1939 | 439 | 230 |
ALFA M30 | 1.85 | 2245 | 995 | 1845 | 595 | 325 |
ALFA CLIP6 | 0.18 | 1000 | 250 | 859 | 130 | 51 |
ALFA CLIP8 | 0.38 | 1250 | 375 | 1095 | 220 | 78 |
ALFA CLIP10 | 0.62 | 1500 | 500 | 1324 | 324 | 100 |
ALFA TS6-M | 505 | 327 | 380 | 200 | 80 | |
ALFA TL6 | 1036 | 150 | ||||
ALFA TL10 | 1338 | 225 | ||||
ALFA TL10P | 1338 | 225 | ||||
ALFA T20-B | 0.9 | 1750 | 625 | 1478 | 353 | 205 |
ALFA T20-BW | ||||||
ALFA T20-M | 0.85 | 1750 | 625 | 1478 | 365 | 205 |
ALFA T20-MW | ||||||
ALFA T20-P | ||||||
ALFA TS20-M | 0.283 | 900 | 625 | 698 | 363 | 195 |
ALFA T50M | ||||||
ALFA P-01 | 431 | 126.5 | 357 | 60 | 32 | |
ALFA P-2 | 0.2 | 710 | 248 | 593 | 135 | 65 |
ALFA P5 | 0.14 | 800 | 325 | 55 | ||
ALFA P12 | ||||||
ALFA P13 | 0.18 | 920 | 290 | 800 | 165 | 60 |
ALFA P14 | 1032 | 264 | ||||
ALFA P15 | 0.53 | 1372 | 500 | 1200 | 324 | 115 |
ALFA P16 | 0.8 | 1360 | 795 | 1200 | 530 | 175 |
ALFA P17 | 1.41 | 2080 | 795 | 1865 | 530 | 175 |
ALFA P20 | ||||||
ALFA P21 | 0.12 | 715 | 250 | 591 | 135 | 70 |
ALFA P22 | 0.2 | 710 | 248 | 593 | 135 | 65 |
ALFA P22 CLIP | 0.12 | 715 | 250 | 591 | 135 | 70 |
ALFA P26 | 0.12 | 715 | 250 | 591 | 135 | 70 |
ALFA P30 | 630 | 122 | 570 | 50 | 25 | |
ALFA P31 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
ALFA P32 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
ALFA P36 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
ALFA P41 | ||||||
ALFA P45 | 1200 | 324 | ||||
ALFA P171 | 1.41 | 2080 | 795 | 1865 | 530 | 175 |
ALFA PAR01 | ||||||
ALFA PAR22 | ||||||
ALFA T200 | ||||||
ALFA P225 | ||||||
ALFA P252 | ||||||
ALFA P132 | 0.18 | 920 | 290 | 800 | 165 | 60 |
ALFA P135 | 800 | 165 | ||||
ALFA A3 | 630 | 122 | 570 | 50 | 25 | |
ALFA A10 | 1205 | 290 | ||||
ALFA A10B | 0.24 | 873 | 388.5 | 703 | 234 | 100 |
ALFA A15 | 1315 | 350 | ||||
ALFA A15B | 0.75 | 1558 | 588.5 | 1315 | 350 | 160 |
ALFA A20 | 1.07 | 1835 | 715 | 1550 | 430 | 200 |
ALFA A20B | 1.07 | 1843 | 718.5 | 1550 | 430 | 210 |
ALFA A30 | 2190 | 890 | 1845 | 540 | 300 | |
ALFA A35 | 2 | 2303 | 1220 | 1850 | 765 | 350 |
ALFA AK20 | 0.5 | 1220 | 669 | 930 | 365 | 210 |
ALFA AM10 | 0.43 | 1247 | 487 | 1046 | 290 | 100 |
ALFA AM20 | 0.79 | 1754 | 669 | 1450 | 365 | 200 |
ALFA AM20B | 0.79 | 1754 | 669 | 1450 | 365 | 210 |
ALFA AM20BFM | ||||||
ALFA AM20HBM | ||||||
ALFA AM20SFM | ||||||
ALFA AX30 | 1.58 | 2208.5 | 909 | 1836 | 540 | 285 |
ALFA AX30B | ||||||
ALFA H7 | 0.4 | 1233 | 425.5 | 1054 | 254 | 80 |
ALFA H10 | 0.65 | 1482 | 533.5 | 1221 | 348 | 100 |
ALFA JWP26 | 0.12 | 715 | 250 | 591 | 135 | 70 |
ALFA JWP36 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
ALFA MA30M | 1.5 | 2250 | 1000 | 1811 | 561 | 332 |
ALFA MA30S | 2232 | 970 | 1815 | 555 | 295 | |
ALFA MS6 | ||||||
ALFA MS10 | ||||||
ALFA MS15 | ||||||
ALFA EC350 | ||||||
ALFA EC500 | ||||||
ALFA EC650 | ||||||
ALFA EC700 | ||||||
ALFA M6MW | 640 | 140 | ||||
ALFA M6MX | 640 | 140 | ||||
ALFA M6MD | 640 | 140 | ||||
ALFA M10BW | 0.24 | 879 | 375 | 719 | 223 | 100 |
ALFA M10BD | ||||||
ALFA M10BWREF | ||||||
ALFA M20MW | 1478 | 353 | ||||
ALFA MK15BW | ||||||
ALFA M15F | ||||||
ALFA M15E | ||||||
ALFA MA30W | ||||||
ALFA A15BW | 0.75 | 1150 | 585 | 1315 | 350 | 160 |
ALFA AX30BW | ||||||
ALFA AM20DW |
Introduction to sheet material and application:
material | application |
SUS304 / SUS316L | Purified water, river water, food oil, mineral oil |
Titanium / Pal ladium | Sea water, salt water, salinized substance |
Hadtelloy Alloy / C-276 | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
Ni / Nickel | High temperature and high concentration caustic soda |
Material and operating conditions of gasket:
Material | Application | working temperature |
NBR | Water, sea water, mineral oil, salt water | -15—130℃ |
HNBR | High temperature mineral oil, high temperature water | 15—140℃ |
EPDM/HEPDM | Water,Hot water, steam, acid, alkali,caustic | -25—150℃ |
Viton/Fluorine Rubber | Strong acid, strong alkali, mineral oil, grease and fuel oil, etc | 5—200℃ |
NEOPRENE | Acid, alkali, mineral oil, low molecular weight aliphatic hydrocarbon | 35—130℃ |
Silicon Rubber | High temperature and some corrosive environments | 65—200℃ |
Introduction of plate heat exchanger manufacturer:
Aiprel specializes in heat exchangers, heat exchangers accessories, manufacturing, sales, and service.
We are a genuine original PHE manufacturer with all components are produced in our own factory and complete end products.
We passed the ISO9001: 2000 Quality System Certification, ISO14001: 2004 Environmental System Quality Certification. Our registered capital is 50.00 million, and annual revenue of over RMB 200 million.
With all the manufacturing plants together of over 100,000 square meters, producing over 20,000 heat exchangers and milloins heat exchanger accessories, making us one of the world's largest heat exchange equipment and accessories manufacturers.
