| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | Aiprel |
| Certification: | CE,CCS,ISO,DNV |
| Model Number: | FP205 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Warranty: | 1 Year,12 Months,one Year,2 Years | Condition: | New |
|---|---|---|---|
| Application: | Heater Parts,Heating Or Cooling,Heat Transfer,HVAC | Structure: | Plate Heat Exchanger |
| Voltage: | 220v/380v/customized | Weight: | 5-500KG |
| Maximum Working Pressure: | 1.0MPa | Liquid Flow Rate: | Max 50 M3/h |
| Dimension(l*w*h): | Customized | Plate Material: | SS304/SS316/SS316L/Titanium/ALLOY C276 |
| High Light: | 220v Refrigeration Heat Exchanger Gasket,1.0MPa Heat Exchanger Gasket,50m3/H Heat Exchanger Gasket |
||
Efficient heat transfer equipment accessories plate heat exchanger gasket FP205 for refrigeration

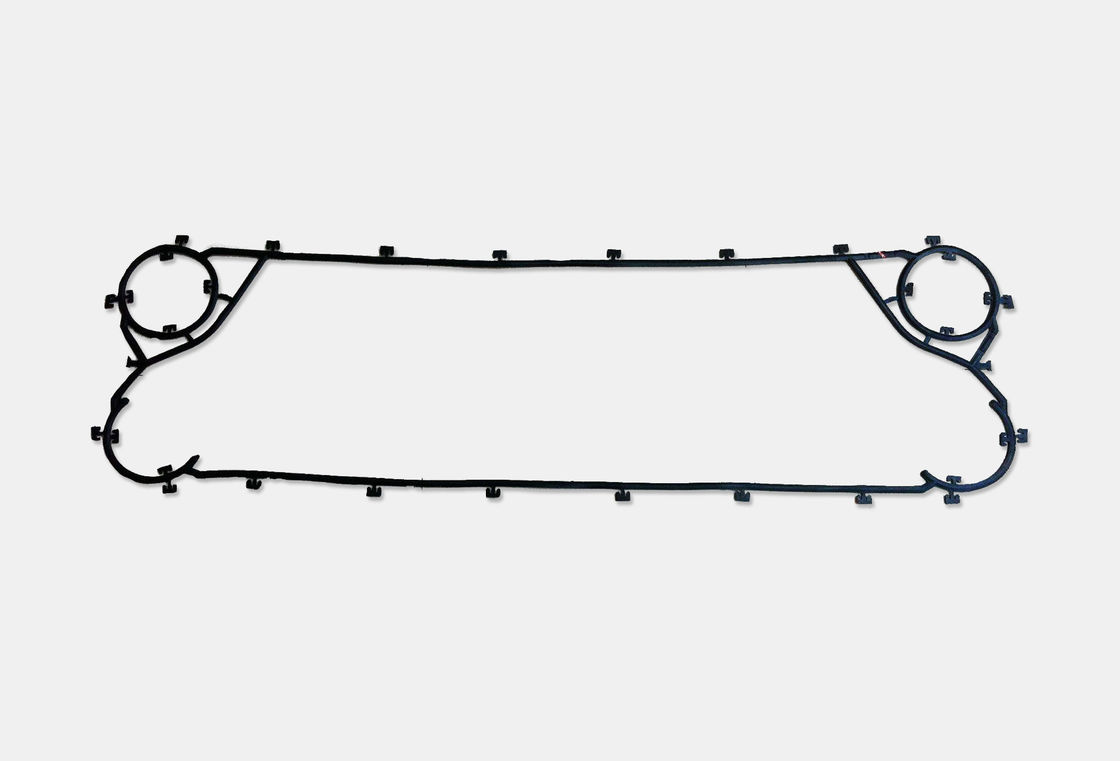

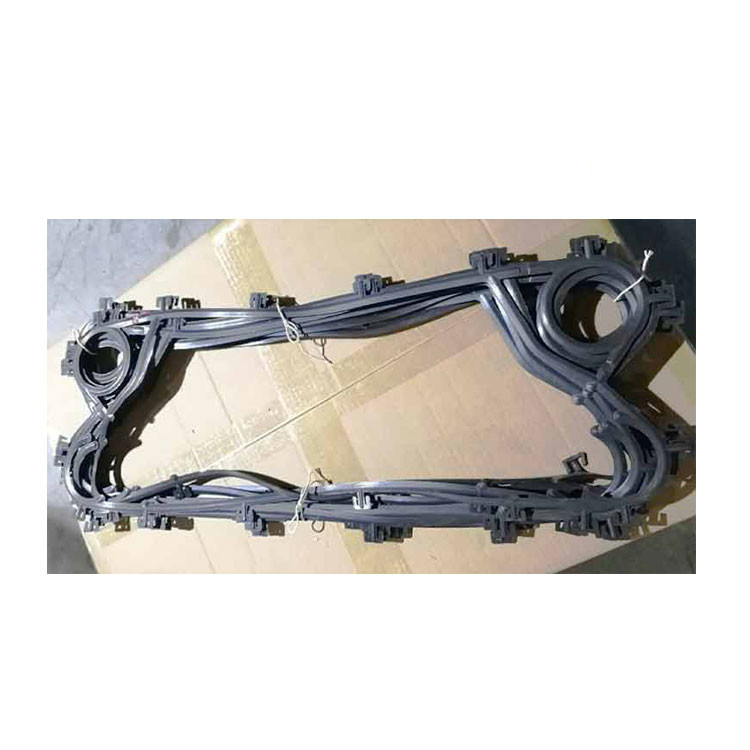

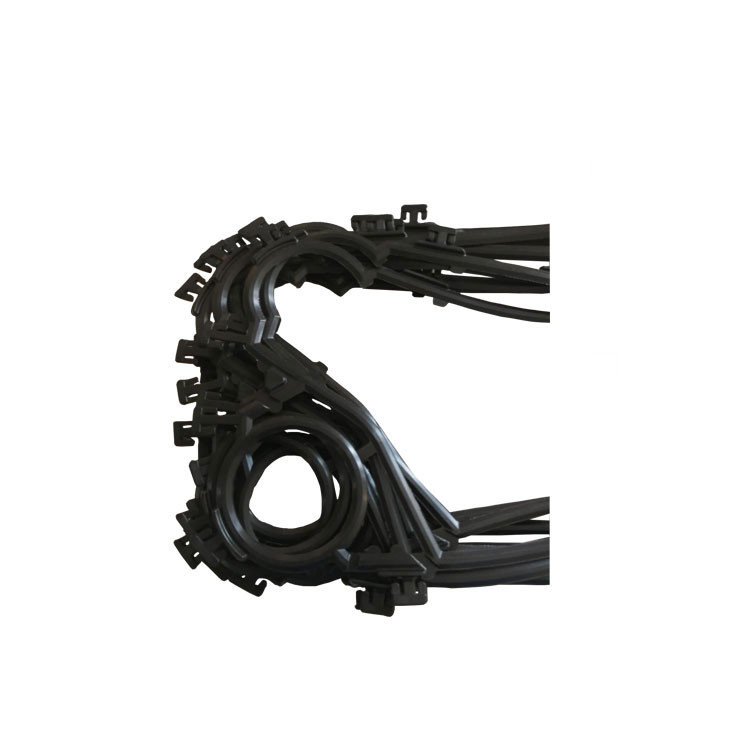

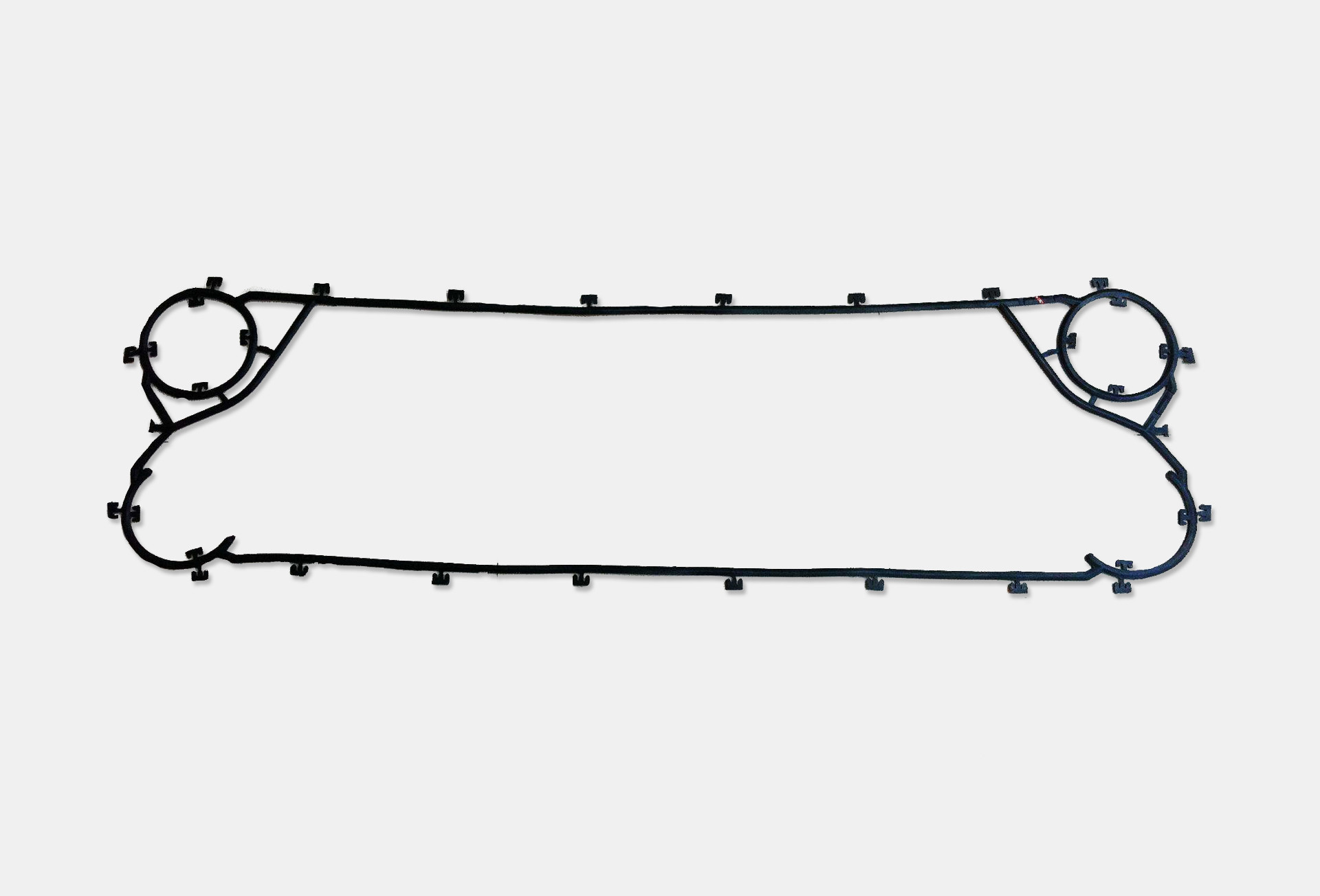

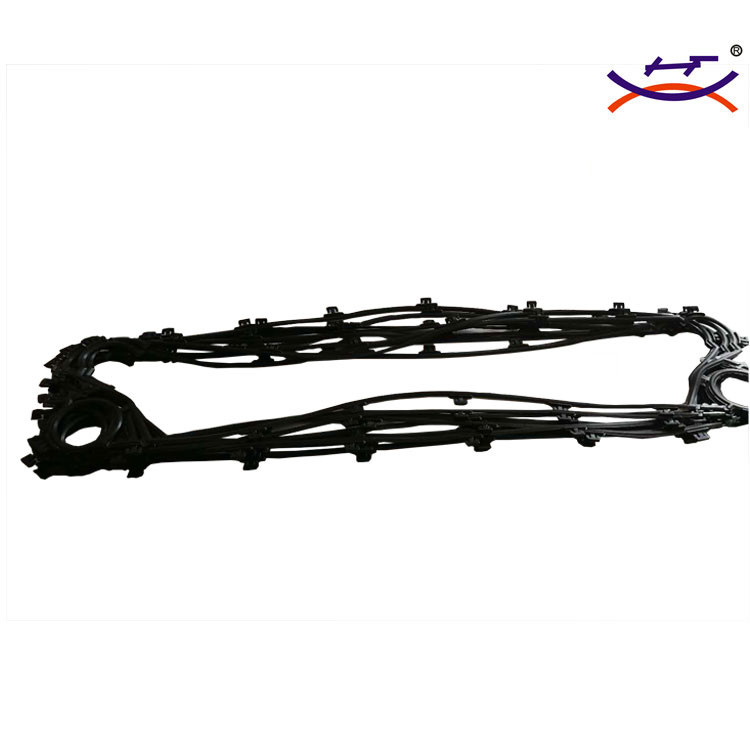

Name:Heat exchanger Gasket
The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
| PLATE MATERIAL | SS304, SS316, 254SMO, 904L, C276, Titanium, Nickel, Incoloy825 |
| PLATE THICKNESS | 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm |
| GASKET MTERIAL | EPDM, NBR, HNBER, HEPDM,FKW |
| GASKET ASSEMBLY | Clip on, Lock in, fasten, Glued |
| FRAME MATERIAL | Carbon steel, Stainless steel, Stainless steel coat |
| NOZZLE | Flange, Rubber insert, Metal insert, Thread, Clamp |
| CONNECTION SIZE | DN15~DN500 |
| CONNECTION STANDARD | Custiomized |
| COLOR | Custiomized |
| APPLICATION | HVAC, Power, Suger, Marine, Chemical, etc |
Due to the uncertainty of heat exchanger selection and design, the price displayed is a range. For details, please contact customer service. If you do not communicate in the previous period, the customer service cannot accept it.
Advantage:
Comparing to other other types of heat exchanger, plate heat exchangers have larger surface area. They are composed of a number of thin metal plates compressed together. Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid. Different materials have different channels and in their respective flow path alternately. They won't leak to the outside. The number of the heat transfer plate is determined according to the amount of fluid, physical properties of fluid,the pressure drop and thermal condition. Each plate is corrugated to increase the maximum heat transfer area.
