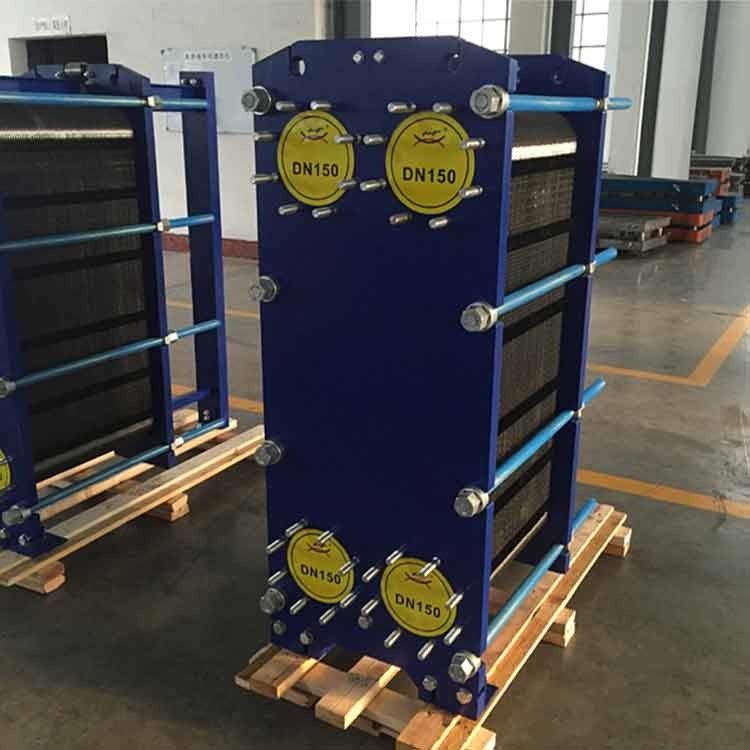

Sea Water Gasket 16 Bar 220V Titanium Plate Heat Exchanger

Gasket Plate plate heat exchanger with gasket for Shipping industry

Function of a Plate Heat Exchanger
A plate Heat Exchanger is a unit which transfers heat continuously from one media to another media without adding energy to the process. The basic concept of a plate and frame Heat Exchanger is two liquids flowing on either side of a thin corrugated metal plate so heat may be easily transferred between the two.

The plate Heat Exchanger efficiency requires less floor space compared to other types of Heat Transfer equipment and is lighter in weight.

Plate heat exchanger design selection:

(1) Physical parameters of cold and hot media, such as pH, chloride content, viscosity, density, thermal conductivity, specific heat, etc.
(2) The inlet and outlet temperatures of cold and hot media.
(3) Flow of cold or hot medium or flow of one of them.
(4) Cold and hot medium pressure loss requirements.
(5) Intrinsic characteristics of plate heat exchangers, such as plate material, seal gasket material, etc

Advantages

1, High quality and competitive price , fast delivery.

2,One year life time guarantee.

3, As manufacturer, we can supply the best quality replace parts for some brands to help you save cost.

4, Customized service, According to the specific requirements of new products,contact us

Structure of Gasket Plate Heat Exchanger:

Plate heat exchanger is made up by heat transfer plate, sealing gasket, compression plate, up and down guide bar, pillar, grip bolts and other major parts.

What are the advantages of Plate Heat Exchanger?

• High heat transfer coefficient, sensitive temperature control
• Low pressure lose, high operating flexibility
• Compact structure, easy assembly & disassembly
• Long life-time, metal plates to withstand high temperatures and resist corrosion
•

• Introduction to sheet material and application:

  material	application
  SUS304 / SUS316L	Purified water, river water, food oil, mineral oil
  Titanium / Pal ladium	Sea water, salt water, salinized substance
  Hadtelloy Alloy / C-276	Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
  Ni / Nickel	High temperature and high concentration caustic soda



  Material and operating conditions of gasket:

  Material	Application	working temperature
  NBR	Water, sea water, mineral oil, salt water	-15—130℃
  HNBR	High temperature mineral oil, high temperature water	15—140℃
  EPDM/HEPDM	Water,Hot water, steam, acid, alkali,caustic	-25—150℃
  Viton／Fluorine Rubber	Strong acid, strong alkali, mineral oil, grease and fuel oil, etc	5—200℃
  NEOPRENE	Acid, alkali, mineral oil, low molecular weight aliphatic hydrocarbon	35—130℃
  Silicon Rubber	High temperature and some corrosive environments	65—200℃

•

• Introduction of plate heat exchanger manufacturer:



  Aiprel specializes in heat exchangers, heat exchangers accessories, manufacturing, sales, and service.
  We are a genuine original PHE manufacturer with all components are produced in our own factory and complete end products.
  We passed the ISO9001: 2000 Quality System Certification, ISO14001: 2004 Environmental System Quality Certification. Our registered capital is 50.00 million, and annual revenue of over RMB 200 million.

  With all the manufacturing plants together of over 100,000 square meters, producing over 20,000 heat exchangers and milloins heat exchanger accessories, making us one of the world's largest heat exchange equipment and accessories manufacturers.

  We can also produce replacement parts specific for various brand products. The replacement gaskets and plates are suitable for ALFA, GEA, APV, Viacrb, Sondex, SWEP, Funke, Hisaka, Sigma, Accessen, etc . In 2012, Aiprel established its heat exchanger service center to carry out maintenance of plate heat exchangers, chemical cleaning, test, renovation and other services. Besides, Aiprel is deploying global service network to become a global heat exchanger service expert and respond customers at any time anywhere.
