Place of Origin: | Jiangsu China |
---|---|
Brand Name: | Aiprel |
Certification: | CE,CCS,ISO,DNV |
Model Number: | Plate Type Heat Exchanger |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Export wooden case |
Delivery Time: | 1-2 weeks |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 sets per month |
Warranty: | 12 Months | Maximum Working Pressure: | 3.0MPa |
---|---|---|---|
Plate Material: | 316L,Titanium,SS304,254SMO,Nickel | Gasket Material: | NBR EPDM FKM |
Frame Material: | Carbon Steel,Stainless Steel | ||
Highlight: | gasketed plate and frame heat exchanger,plate frame heat exchanger |
Heat Transfer Specialists Plate Heat Exchanger Good Quality For Heating Water
Efficient heat transfer
Gasketed plate-and-frame heat exchangers (GPHEs) provide efficient heat transfer in compact equipment with a small footprint - much smaller and more efficient than shell-and-tube heat exchangers.
Applications:
• Biotech and Pharmaceutical
• Chemicals
• Energy and Utilities
• Food and Beverages
• Sugar and Starch
• Home and Personal care
• HVAC and Refrigeration
• Machinery and Manufacturing
• Marine and Transportation
• Mining, Minerals and Pigments
• Pulp and Paper
• Semiconductor and Electronics
• Steel
• Pasteurization
• Fermentation
• Ethanol fermentation

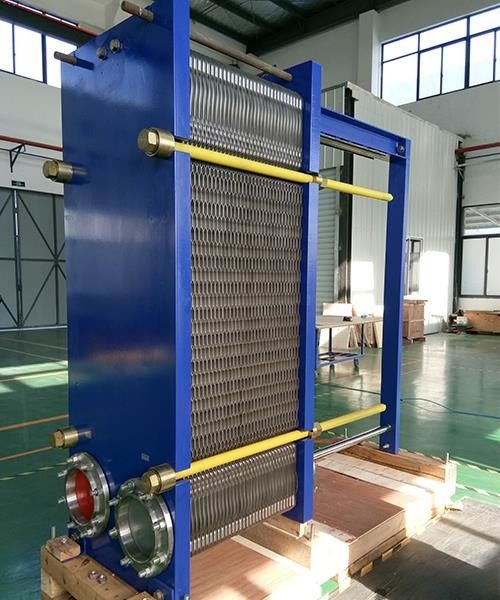

Structure of Gasket Plate Heat Exchanger:
Plate heat exchanger is made up by heat transfer plate, sealing gasket, compression plate, up and down guide bar, pillar, grip bolts and other major parts.
Plate heat exchanger design selection:
(1) Physical parameters of cold and hot media, such as pH, chloride content, viscosity, density, thermal conductivity, specific heat, etc.
(2) The inlet and outlet temperatures of cold and hot media.
(3) Flow of cold or hot medium or flow of one of them.
(4) Cold and hot medium pressure loss requirements.
(5) Intrinsic characteristics of plate heat exchangers, such as plate material, seal gasket material, etc
Advantages
1, High quality and competitive price , fast delivery.
2, One year life time guarantee.
3, As manufacturer, we can supply the best quality replace parts for some brands to help you save cost.
4, Customized service, According to the specific requirements of new products,contact us
What are the advantages of Plate Heat Exchanger?
Introduction to sheet material and application:
material | application |
SUS304 / SUS316L | Purified water, river water, food oil, mineral oil |
Titanium / Pal ladium | Sea water, salt water, salinized substance |
Hadtelloy Alloy / C-276 | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
Ni / Nickel | High temperature and high concentration caustic soda |
Material and operating conditions of gasket:
Material | Application | working temperature |
NBR | Water, sea water, mineral oil, salt water | -15—130℃ |
HNBR | High temperature mineral oil, high temperature water | 15—140℃ |
EPDM/HEPDM | Water,Hot water, steam, acid, alkali,caustic | -25—150℃ |
Viton/Fluorine Rubber | Strong acid, strong alkali, mineral oil, grease and fuel oil, etc | 5—200℃ |
NEOPRENE | Acid, alkali, mineral oil, low molecular weight aliphatic hydrocarbon | 35—130℃ |
Silicon Rubber | High temperature and some corrosive environments | 65—200℃ |
