Tvr Heating And Cooling Flat Plate Heat Exchanger Thermal Vapor Recompression Evaporator

Tvr Heating And Cooling Thermal Vapor Recompression Evaporator Low Waste Fit Xylosic Alcohol Fluid

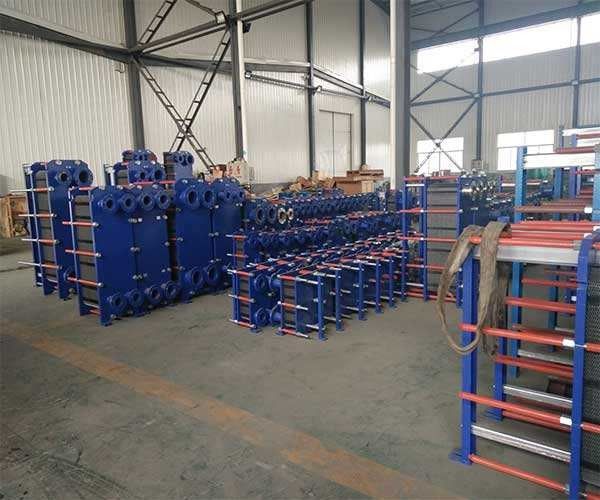

Plate heat exchanger is made up by heat transfer plate, sealing gasket, compression plate, up and down guide bar, pillar, grip bolts and other major parts.

plate heat exchanger plate with unique rough corrugated structure design, applicable to solid, crystal, fiber and pulp material containing medium, also suitable for high viscosity fluid. It fills the herringbone wavy cannot be applied in the special medium conditions, and because it has very good heat exchange performance, easy disassembly, cleaning, maintenance and other characteristics, so that the products can be widely used in sugar, paper and food and fruit juice industry field.It is adopted the design structure of coarse ripples. There are some "S" runners between plates and no completely metal contact, it applies to high viscosity medium with Solid, crystal, fiber, slurry material, it is suitable for special working condition which V-shape corrugated plates cannot apply to. And it is can be widely used in sugar, paper, and food and fruit juice industries because it has excellent heat exchange performance and easy to disassemble, clean and maintain.

Plate heat exchanger design selection:

(1) Physical parameters of cold and hot media, such as pH, chloride content, viscosity, density, thermal conductivity, specific heat, etc.
(2) The inlet and outlet temperatures of cold and hot media.
(3) Flow of cold or hot medium or flow of one of them.
(4) Cold and hot medium pressure loss requirements.
(5) Intrinsic characteristics of plate heat exchangers, such as plate material, seal gasket material, etc

Material and operating conditions of gasket:

Advantages

1, High quality and competitive price , fast delivery.

2, One year life time guarantee.

3, As manufacturer, we can supply the best quality replace parts for some brands to help you save cost.

4, Customized service, According to the specific requirements of new products,contact us

What are the advantages of Plate Heat Exchanger?

• High heat transfer coefficient, sensitive temperature control
• Low pressure lose, high operating flexibility
• Compact structure, easy assembly & disassembly
• Long life-time, metal plates to withstand high temperatures and resist corrosion
•

• Introduction to sheet material and application:

  material	application
  SUS304 / SUS316L	Purified water, river water, food oil, mineral oil
  Titanium / Pal ladium	Sea water, salt water, salinized substance
  Hadtelloy Alloy / C-276	Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
  Ni / Nickel	High temperature and high concentration caustic soda





•

• Introduction of plate heat exchanger manufacturer:



  Aiprel specializes in heat exchangers, heat exchangers accessories, manufacturing, sales, and service.
  We are a genuine original PHE manufacturer with all components are produced in our own factory and complete end products.
  We passed the ISO9001: 2000 Quality System Certification, ISO14001: 2004 Environmental System Quality Certification. Our registered capital is 50.00 million, and annual revenue of over RMB 200 million.

  With all the manufacturing plants together of over 100,000 square meters, producing over 20,000 heat exchangers and milloins heat exchanger accessories, making us one of the world's largest heat exchange equipment and accessories manufacturers.

  We can also produce replacement parts specific for various brand products. The replacement gaskets and plates are suitable for ALFA, GEA, APV, Viacrb, Sondex, SWEP, Funke, Hisaka, Sigma, Accessen, etc . In 2012, Aiprel established its heat exchanger service center to carry out maintenance of plate heat exchangers, chemical cleaning, test, renovation and other services. Besides, Aiprel is deploying global service network to become a global heat exchanger service expert and respond customers at any time anywhere.
