| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO |
| Model Number: | ACCESSEN |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10,000 Units Per Month |
| Warranty: | 1 Year | Maximum Working Pressure: | 2.0 Mpa |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Condition: | New |

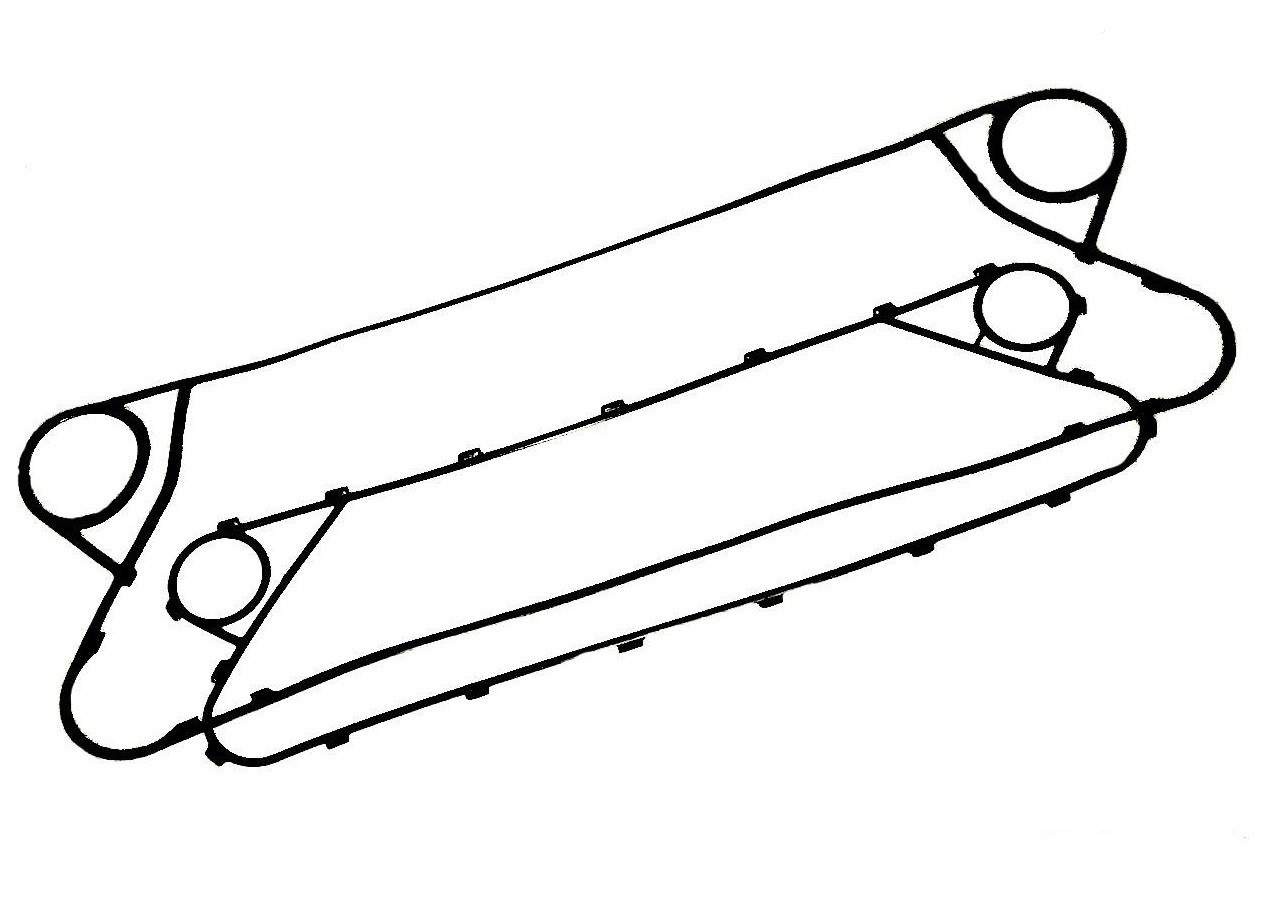

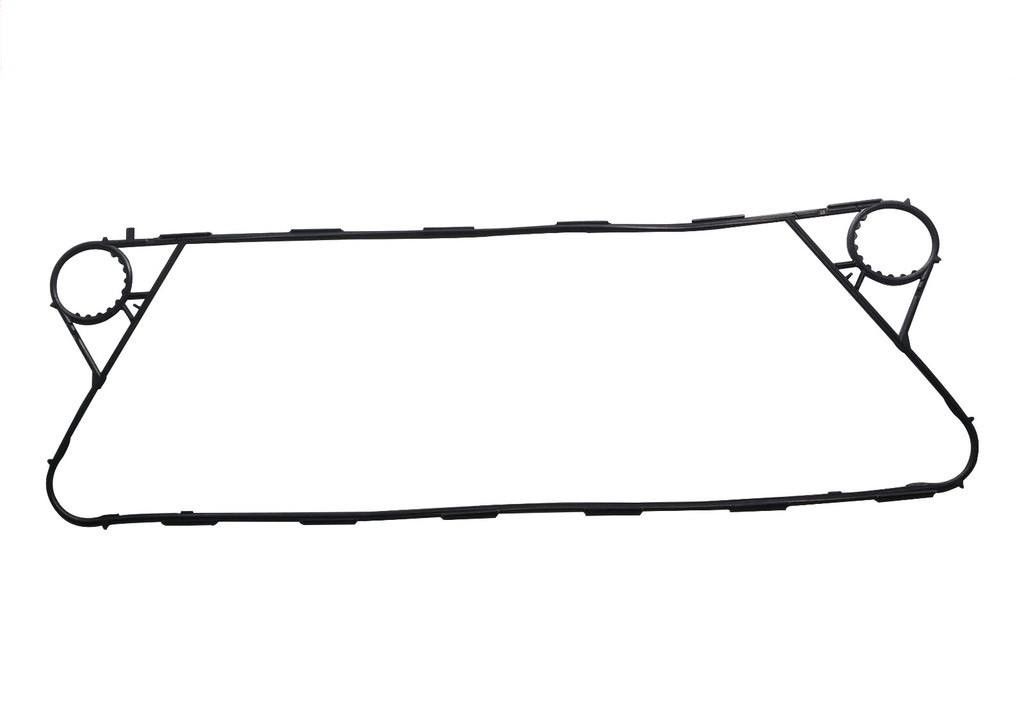

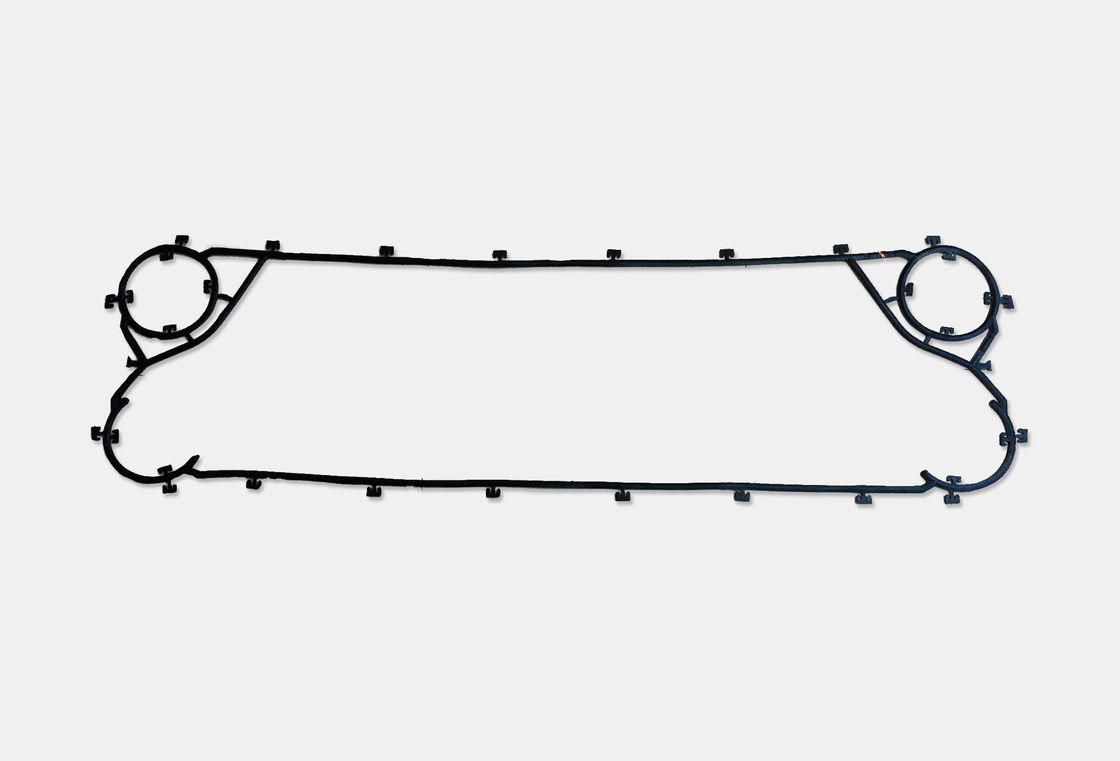

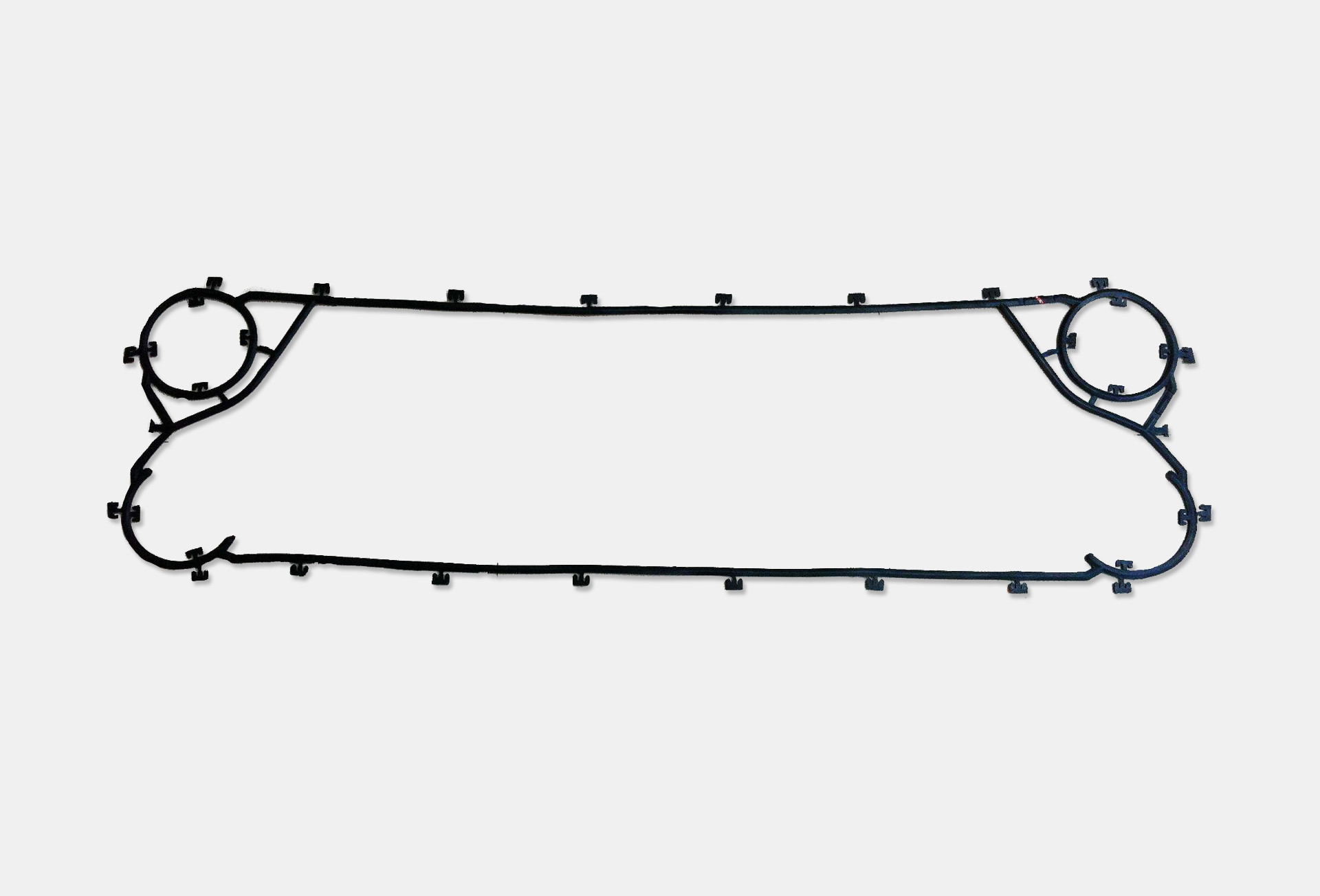

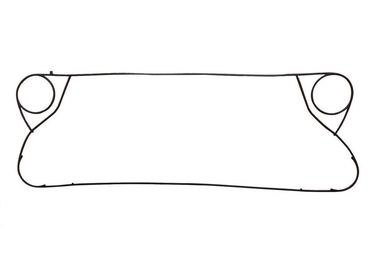

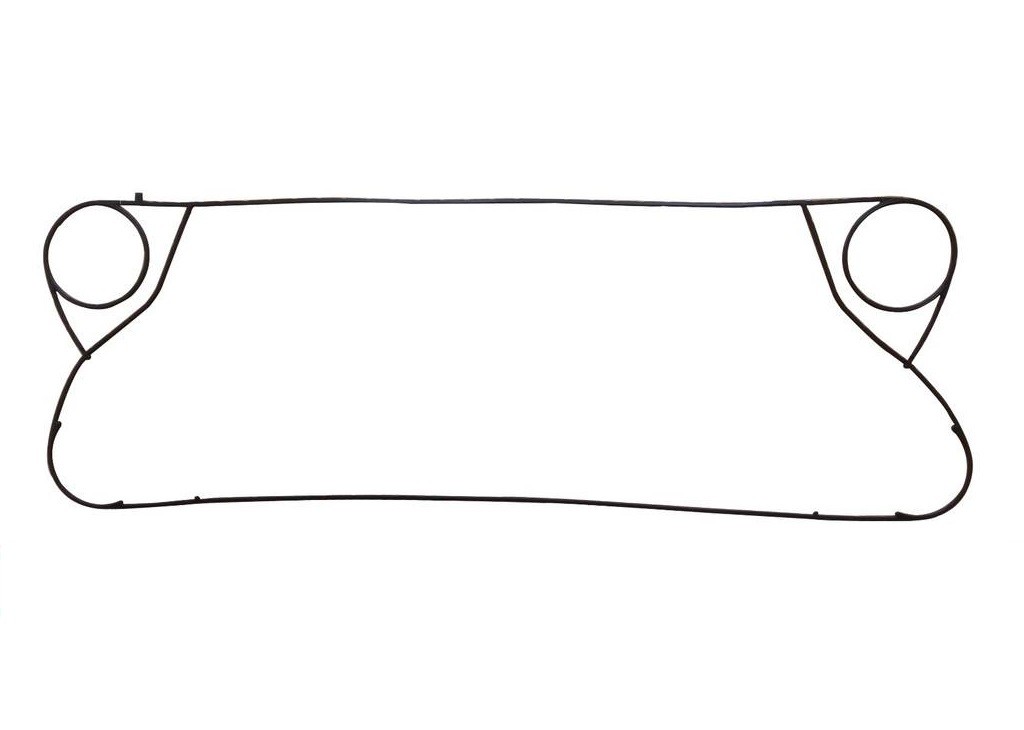

| Application: | Heating Or Cooling,Heat Transfer,HVAC,Refrigeration Parts,Heater Parts | Gasket Material: | EPDM,HNBR,FKM,NBR EPDM FKM,FDA Stan |
| Highlight: | phe plate,nbr gaskets |
||
Quality check
It need 2 steps about plate testing.
First, testing plate corrugation depth (free channel).Use micrometer (the best digital displayer) to test 32 sites of
plate.Second, testing plate crack.The method is dye check. Spraying display agent (white) on one side of plate,
the other side of plate sprays penetrant (red),if penetrant passes through plate and the side of display agent is
dyed red, it shows the plate has crack, the method is very simple and efficient.
| Brand/Maker | Series |
| Accessen | AU03,AU05,AU08, |
| AU10L1,AU10L2, | |
| AU15L1,AU15L2,AU20,AU50,AU35,AU15,AU45,AU58,AU70,AU98, | |
| AN5,AN10,AN10M,AN10L2, | |
| AN15L1,AN15L2, | |
| AN20, | |
| AN25L1,AN25L2, | |
| AN30L1,AN30L2,AN30L3,AN30L4 | |
| AN35L1,AN35L2,AN35L3,AN35L4 | |
| AN40L1,AN40L2,AN40L3,AN40L4 | |
| AN45L1,AN45L2,AN45L3,AN45L4 | |
| AN50L1, | |
| AS6,AS10,AS20,AS25,AS30,AS40, | |
| AC15,AC25,AC35,AC45,AC50,AC65,AC70,AC98,AC150,AC180,AC190, | |
|
AP5,AP8,AP20,AP25,AP35,AP075,AP98,AP120,AP165,AP210,
|
Material and operating conditions of gasket:
| Material | Application | working temperature |
| NBR | Water, sea water, mineral oil, salt water | -15—130℃ |
| HNBR | High temperature mineral oil, high temperature water | 15—140℃ |
| EPDM | Water,Hot water, steam, acid, alkali | -25—150℃ |
| Viton／Fluorine Rubber | Strong acid, strong alkali, mineral oil, grease and fuel oil, etc | 5—200℃ |
| NEOPRENE | Acid, alkali, mineral oil, low molecular weight aliphatic hydrocarbon | 35—130℃ |
| Silicon Rubber | High temperature and some corrosive environments | 65—200℃ |
