| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO9001 |
| Model Number: | APV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5,000 Units Per week |
| Warranty: | 1 Year | Maximum Working Pressure: | 2.0 Mpa |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Type: | Plate Heat Exchanger Spare Parts |
| Gasket Material: | EPDM,HNBR,FKM,NBR EPDM FKM,FDA Stan | ||
| High Light: | phe plate,nbrp gasket |
||

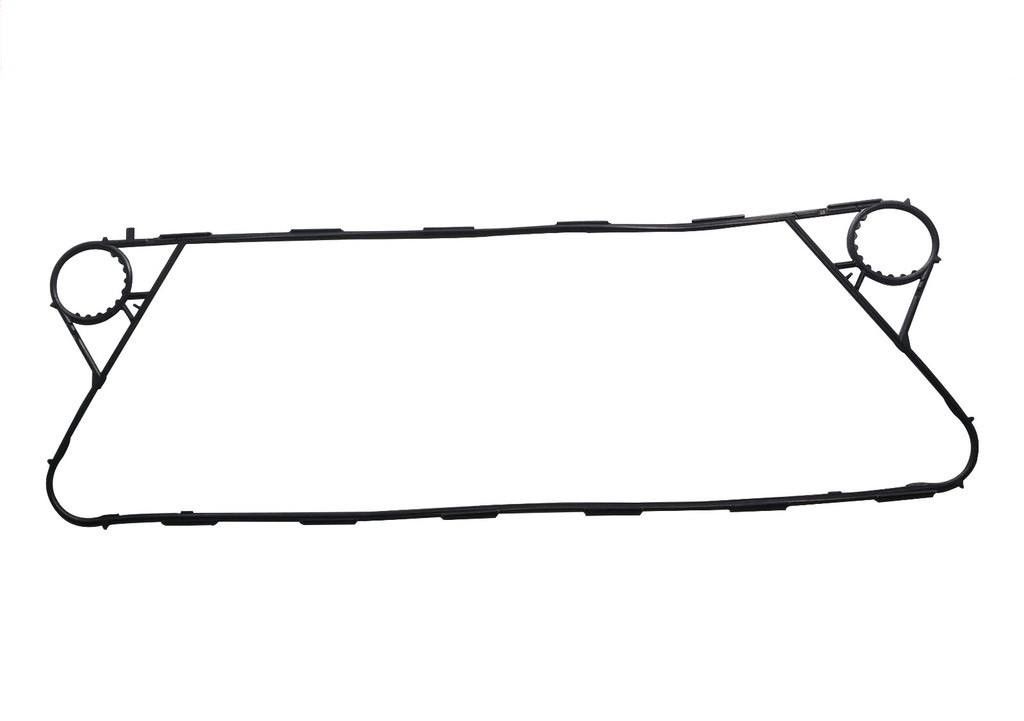

The gasket of the plate heat exchanger mainly serves to seal between the heat exchange plates. The materials are: nitrile rubber, EPDM rubber, fluorine rubber, etc. Different rubbers are used according to different media. The rubber pad is flexible, which is good for sealing and easy to disassemble. Each rubber pad is heat exchange according to each type. The plate type design is processed and has a very good sealing.
| Brand/Maker | Series |
| APV | A055,A085,A145 |
| H12,H17,H20,H25,H30 | |
| SPX | |
| N25,N35,N50, | |
| J060,J092,J107,J185, | |
| M60,M92,M107,M185, | |
| Q030D,Q030E,Q055D,Q055E,Q080D,Q080E, | |
| K34,K55,K71, | |
| B063L,B063S,B110L,B110S,B134L,B134S,B158L,B158S,B205L,B205S, | |
| SR1,SR2,SR3,SR6AA,SR6AG,SR6GH,SR6GL,SU6GL,SR9,SD9, | |
| SR14AD,SR14AH,SR14AN,SR14AP,SR14GD,SR14AG,AR14PP,SR23AO,SR23PV,SR23VO,SR38,SR95, | |
| R5,ER5,R6,R8,R10,R14,R23,R40,R55,R66,R86,R89,R106,R145,R235,R405, | |
| P105,P190, | |
| TR9AL,TR9AV,TR9GL,TR9GN, | |
| LR9AL,LR9GL,LR9GN,LD9AL,LD9GL,LD9GN, | |
| D37,U2,T4,TR1,HMB,HX,WHX,JUNIOR,CHF130,FFPE,PESERIII,RFE,RFFPE,SR15PE,CS235,CZ450A |
Material and operating conditions of gasket:
| Material | Application | working temperature |
| NBR | Water, sea water, mineral oil, salt water | -15—130℃ |
| HNBR | High temperature mineral oil, high temperature water | 15—140℃ |
| EPDM | Water,Hot water, steam, acid, alkali | -25—150℃ |
| Viton／Fluorine Rubber | Strong acid, strong alkali, mineral oil, grease and fuel oil, etc | 5—200℃ |
| NEOPRENE | Acid, alkali, mineral oil, low molecular weight aliphatic hydrocarbon | 35—130℃ |
| Silicon Rubber | High temperature and some corrosive environments | 65—200℃ |
