| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | ALFA |
| Certification: | ISO9001 |
| Model Number: | ALFA |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10,000 Sets Per Month |
| Warranty: | 1 Year | Maximum Working Pressure: | 2.0 Mpa |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Application: | Heating Or Cooling,Heat Transfer,HVAC,Refrigeration Parts,Heater Parts |
| Gasket Material: | EPDM,HNBR,FKM,NBR EPDM FKM | ||
| High Light: | phe plate,nbrp gasket |
||

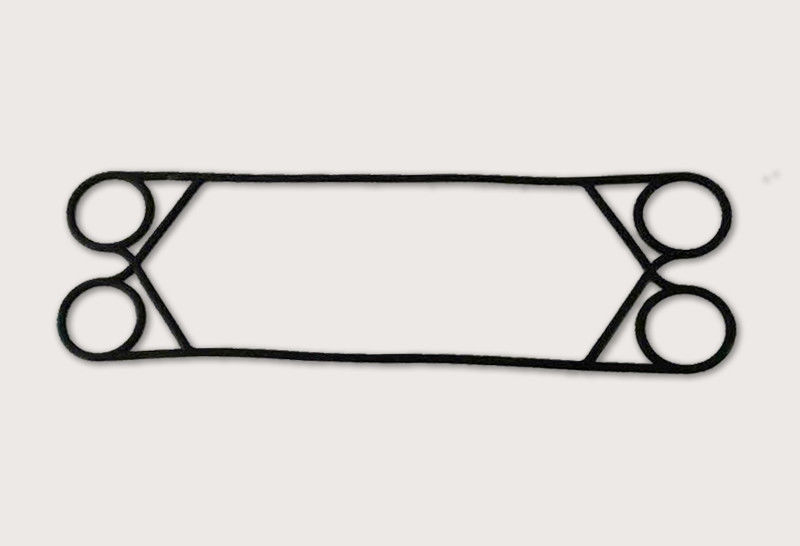

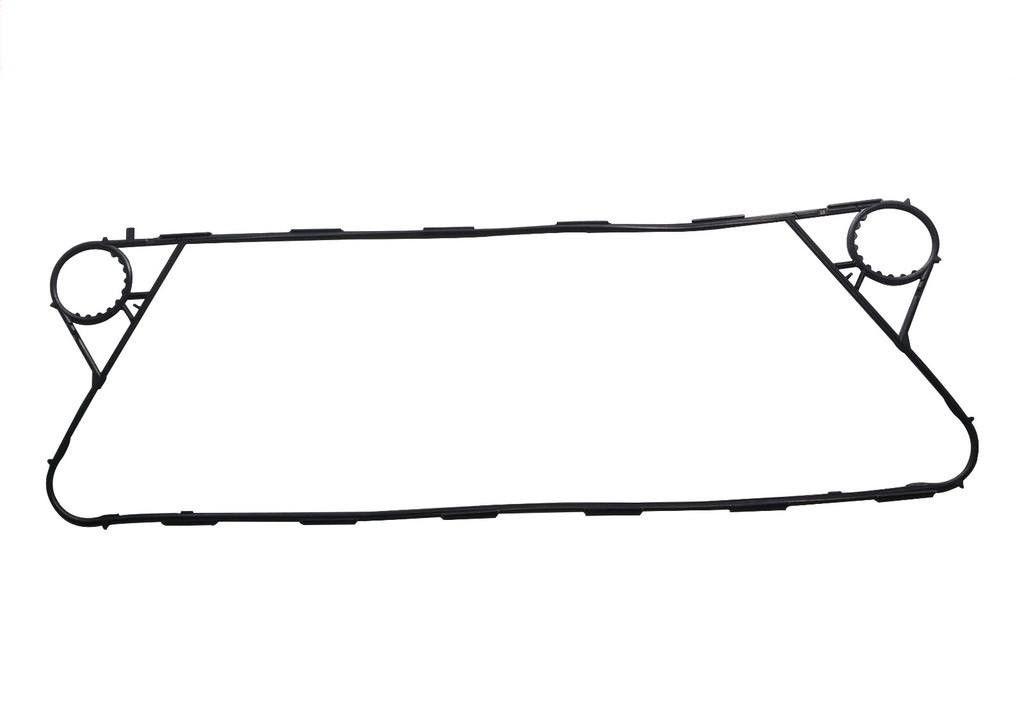

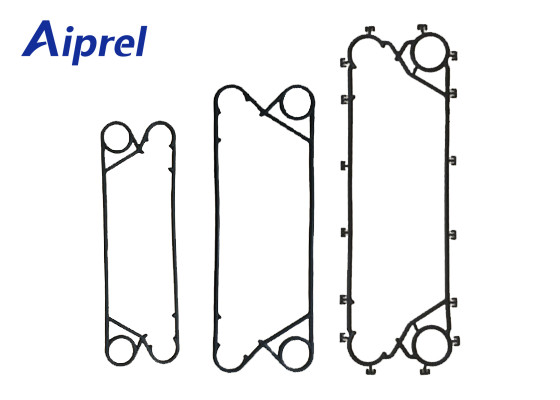

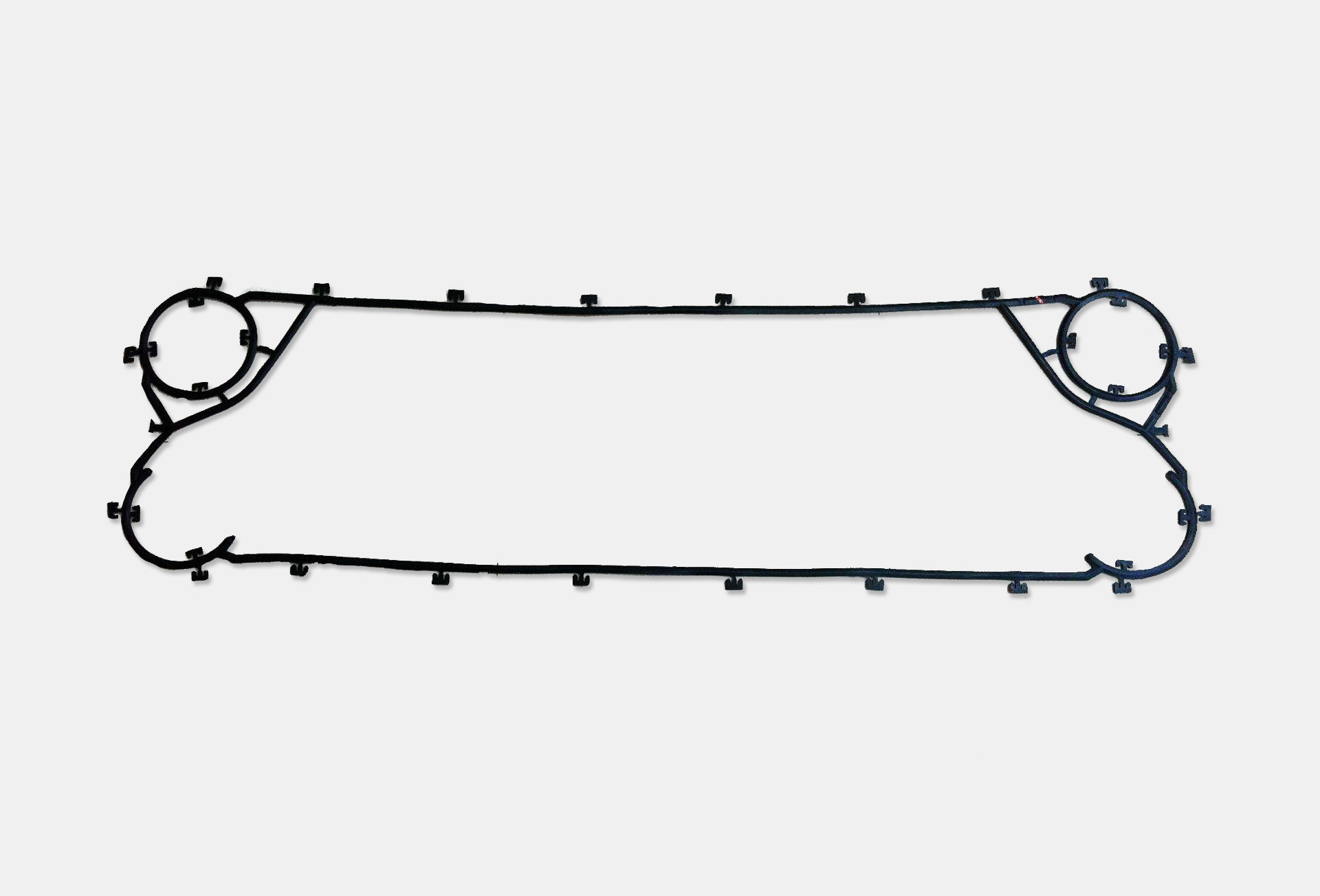

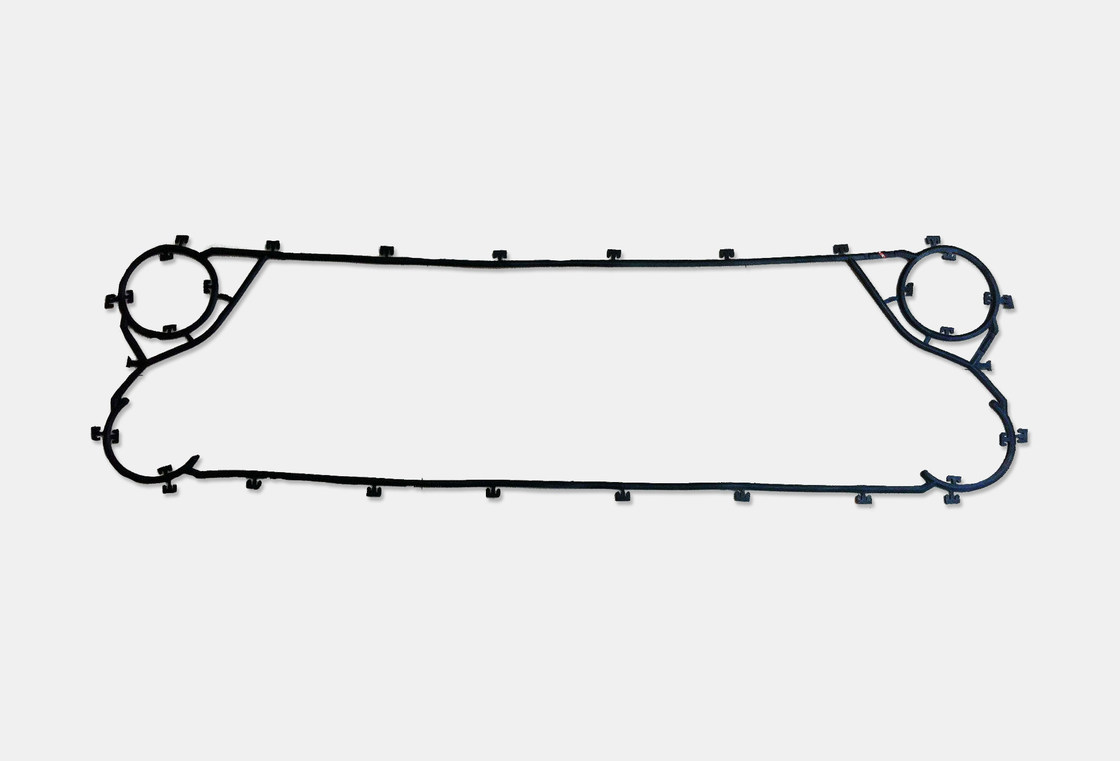

As a professional plate heat exchanger plate manufacturer and seller, AIPREL can produce most of the same material specification plate heat exchanger plate and heat exchanger gasket of afar, and provide afar alternative parts services for more than hundreds of application companies.
We supplies ALFA heat exchanger gaskets and plates replacements. ALFA Model List as below.
| (ALFA) | ||||||
| ALFA Series | Plate area (m²) |
Plate length (mm) |
Plate width (mm) |
Longitudinal center distance (mm) |
Transverse center distance (mm) |
Diameter (mm) |
| ALFA M3 | 0.032 | 431 | 125.5 | 357 | 60 | 25 |
| ALFA M6 | 0.14 | 750 | 250 | 640 | 140 | 60 |
| ALFA M6-M | 0.14 | 750 | 250 | 640 | 140 | 60 |
| ALFA M10-B | 0.24 | 879 | 375 | 719 | 223 | 100 |
| ALFA M10-M | 0.22 | 879 | 375 | 719 | 223 | 100 |
| ALFA M15-B | 0.62 | 1500 | 500 | 1294 | 298 | 140 |
| ALFA M15-M | 0.62 | 1500 | 500 | 1294 | 298 | 140 |
| ALFA M20-M | 0.85 | 1750 | 625 | 1478 | 365 | 205 |
| ALFA MX25B | 1.5 | 2250 | 750 | 1939 | 439 | 230 |
| ALFA MX25M | 1.5 | 2250 | 750 | 1939 | 439 | 230 |
| ALFA M30 | 1.85 | 2245 | 995 | 1845 | 595 | 325 |
| ALFA CLIP6 | 0.18 | 1000 | 250 | 859 | 130 | 51 |
| ALFA CLIP8 | 0.38 | 1250 | 375 | 1095 | 220 | 78 |
| ALFA CLIP10 | 0.62 | 1500 | 500 | 1324 | 324 | 100 |
| ALFA TS6-M | 505 | 327 | 380 | 200 | 80 | |
| ALFA TL6 | 1036 | 150 | ||||
| ALFA TL10 | 1338 | 225 | ||||
| ALFA TL10P | 1338 | 225 | ||||
| ALFA T20-B | 0.9 | 1750 | 625 | 1478 | 353 | 205 |
| ALFA T20-BW | ||||||
| ALFA T20-M | 0.85 | 1750 | 625 | 1478 | 365 | 205 |
| ALFA T20-MW | ||||||
| ALFA T20-P | ||||||
| ALFA TS20-M | 0.283 | 900 | 625 | 698 | 363 | 195 |
| ALFA T50M | ||||||
| ALFA P-01 | 431 | 126.5 | 357 | 60 | 32 | |
| ALFA P-2 | 0.2 | 710 | 248 | 593 | 135 | 65 |
| ALFA P5 | 0.14 | 800 | 325 | 55 | ||
| ALFA P12 | ||||||
| ALFA P13 | 0.18 | 920 | 290 | 800 | 165 | 60 |
| ALFA P14 | 1032 | 264 | ||||
| ALFA P15 | 0.53 | 1372 | 500 | 1200 | 324 | 115 |
| ALFA P16 | 0.8 | 1360 | 795 | 1200 | 530 | 175 |
| ALFA P17 | 1.41 | 2080 | 795 | 1865 | 530 | 175 |
| ALFA P20 | ||||||
| ALFA P21 | 0.12 | 715 | 250 | 591 | 135 | 70 |
| ALFA P22 | 0.2 | 710 | 248 | 593 | 135 | 65 |
| ALFA P22 CLIP | 0.12 | 715 | 250 | 591 | 135 | 70 |
| ALFA P26 | 0.12 | 715 | 250 | 591 | 135 | 70 |
| ALFA P30 | 630 | 122 | 570 | 50 | 25 | |
| ALFA P31 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
| ALFA P32 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
| ALFA P36 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
| ALFA P41 | ||||||
| ALFA P45 | 1200 | 324 | ||||
| ALFA P171 | 1.41 | 2080 | 795 | 1865 | 530 | 175 |
| ALFA PAR01 | ||||||
| ALFA PAR22 | ||||||
| ALFA T200 | ||||||
| ALFA P225 | ||||||
| ALFA P252 | ||||||
| ALFA P132 | 0.18 | 920 | 290 | 800 | 165 | 60 |
| ALFA P135 | 800 | 165 | ||||
| ALFA A3 | 630 | 122 | 570 | 50 | 25 | |
| ALFA A10 | 1205 | 290 | ||||
| ALFA A10B | 0.24 | 873 | 388.5 | 703 | 234 | 100 |
| ALFA A15 | 1315 | 350 | ||||
| ALFA A15B | 0.75 | 1558 | 588.5 | 1315 | 350 | 160 |
| ALFA A20 | 1.07 | 1835 | 715 | 1550 | 430 | 200 |
| ALFA A20B | 1.07 | 1843 | 718.5 | 1550 | 430 | 210 |
| ALFA A30 | 2190 | 890 | 1845 | 540 | 300 | |
| ALFA A35 | 2 | 2303 | 1220 | 1850 | 765 | 350 |
| ALFA AK20 | 0.5 | 1220 | 669 | 930 | 365 | 210 |
| ALFA AM10 | 0.43 | 1247 | 487 | 1046 | 290 | 100 |
| ALFA AM20 | 0.79 | 1754 | 669 | 1450 | 365 | 200 |
| ALFA AM20B | 0.79 | 1754 | 669 | 1450 | 365 | 210 |
| ALFA AM20BFM | ||||||
| ALFA AM20HBM | ||||||
| ALFA AM20SFM | ||||||
| ALFA AX30 | 1.58 | 2208.5 | 909 | 1836 | 540 | 285 |
| ALFA AX30B | ||||||
| ALFA H7 | 0.4 | 1233 | 425.5 | 1054 | 254 | 80 |
| ALFA H10 | 0.65 | 1482 | 533.5 | 1221 | 348 | 100 |
| ALFA JWP26 | 0.12 | 715 | 250 | 591 | 135 | 70 |
| ALFA JWP36 | 0.32 | 1154 | 430 | 945 | 230 | 120 |
| ALFA MA30M | 1.5 | 2250 | 1000 | 1811 | 561 | 332 |
| ALFA MA30S | 2232 | 970 | 1815 | 555 | 295 | |
| ALFA MS6 | ||||||
| ALFA MS10 | ||||||
| ALFA MS15 | ||||||
| ALFA EC350 | ||||||
| ALFA EC500 | ||||||
| ALFA EC650 | ||||||
| ALFA EC700 | ||||||
| ALFA M6MW | 640 | 140 | ||||
| ALFA M6MX | 640 | 140 | ||||
| ALFA M6MD | 640 | 140 | ||||
| ALFA M10BW | 0.24 | 879 | 375 | 719 | 223 | 100 |
| ALFA M10BD | ||||||
| ALFA M10BWREF | ||||||
| ALFA M20MW | 1478 | 353 | ||||
| ALFA MK15BW | ||||||
| ALFA M15F | ||||||
| ALFA M15E | ||||||
| ALFA MA30W | ||||||
| ALFA A15BW | 0.75 | 1150 | 585 | 1315 | 350 | 160 |
| ALFA AX30BW | ||||||
| ALFA AM20DW | ||||||
Material and operating conditions of gasket:
| Material | Application | working temperature |
| NBR | Water, sea water, mineral oil, salt water | -15—130℃ |
| HNBR | High temperature mineral oil, high temperature water | 15—140℃ |
| EPDM | Water,Hot water, steam, acid, alkali | -25—150℃ |
| Viton／Fluorine Rubber | Strong acid, strong alkali, mineral oil, grease and fuel oil, etc | 5—200℃ |
| NEOPRENE | Acid, alkali, mineral oil, low molecular weight aliphatic hydrocarbon | 35—130℃ |
| Silicon Rubber | High temperature and some corrosive environments | 65—200℃ |
