| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO9001 |
| Model Number: | Plate Evaporator |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets Per Month |
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Liquid Flow Rate: | 1-200m3/h | Maximum Working Pressure: | Max 6MPa |
| Structure: | Plate Heat Exchanger | Certification: | CE,CCC,CSA,UL |
| Application: | HVAC,Marine,Heat Transfer | Plate Material: | Stainless Steel,SS304/SS316/SS316L/Titanium/ALLOY C276 |
| Frame Material: | Paint-drying,Carbon Steel,Stainless Steel | ||
| High Light: | steam shell and tube heat exchanger,commercial plate heat exchanger |
||

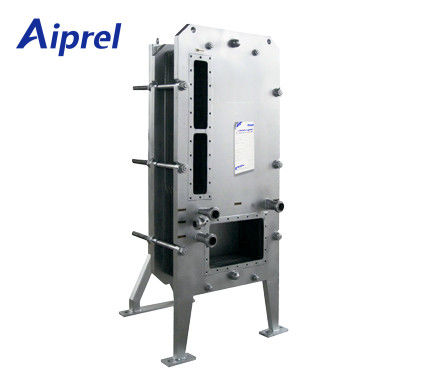

Falling Film Plate Evaporator Heat Exchanger Steam For Waste Water Treatment
The Plate Heat Exchanger provides outstanding efficiency transferring heat from one liquid to another or from steam to liquid. This modular exchanger combines frames, plates and connections to form a variety of configurations. By using different types of plates, with different characteristics, the exchangers can be adapted to a wide variety of applications. The exchangers can easily be disassembled for inspection, maintenance or even expansion by adding plates.
Advandages of Plate Heat Exchanger
· Flexible Design: Customized solution, easy installation
· Optimized performance:optimized design according to system parameter, stable operation, minimize the cost
· Fast delivery: help our customer to increase turnover
· 100% product test: 100% pressure and leakage test, high reliability
· Fully product range: copper and nickel brazing, single, dual system and double wall product
· Compact: less space, easy installation
· High design pressure: 45bar design pressure, excellent solution for R410A, etc new refrigerant
Design Principle
The plate evaporator is a new type of high-efficiency evaporator that is assembled from a series of corrugated metal sheets. A thin rectangular channel is formed between the sheets, and heat is transferred through the sheets to form a thin film evaporation. The evaporated solution is heated and boiled rapidly in the evaporator, and the evaporation will drive the liquid to rise, forming a liquid film along the heat exchange wall surface, causing the liquid to flow through the heated surface in a liquid film, rapidly evaporating and vaporizing, thereby shortening the heating. The residence time enhances the evaporation effect and has the characteristics of high heat transfer coefficient, high evaporation strength and short contact time.
The plate evaporators are mainly based on the semi-welding technology of the rising-plate evaporator. The material evaporates in a channel with a seal, while the steam heating medium condenses in the welded channels. The solution is injected from the bottom of the plate. The product flows upward along the wall of the plate under the action of a large amount of instantaneous steam.
Application:
| Materiel | Application |
| SUS304 SUS316L | Clean water, river water, food oil, mineral oil |
| Ti | Sea water, salt water, salt |
| Hadtelloy Alloy | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Nickel | High temperature and high concentration caustic soda |
| Materiel | Application | Working temp |
| NBR | Water, sea water, mineral oil, salt water | -15—130℃ |
| BNBR | High temperature mineral oil, high temperature water | 15—140℃ |
| EPDM | Hot water, steam, acid, alkali | -25—150℃ |
| Viton／Fluorine Rubber | Strong acid, alkali, mineral oil, grease and fuel oil, etc. | 5—200℃ |
| NEOPRENE | Acid, alkali, mineral oil, low molecular weight aliphatic hydrocarbon | 35—130℃ |
| Silicon Rubber | High temperature and some corrosive media | 65—200℃ |
Introduction of plate heat exchanger manufacturer:
Advandages of Plate Heat Exchanger
· Flexible Design: Customized solution, easy installation
· Optimized performance:optimized design according to system parameter, stable operation, minimize the cost
· Fast delivery: help our customer to increase turnover
· 100% product test: 100% pressure and leakage test, high reliability
· Fully product range: copper and nickel brazing, single, dual system and double wall product
· Compact: less space, easy installation
· High design pressure: 45bar design pressure, excellent solution for R410A, etc new refrigerant
