High Heat Transfer Plate And Shell Heat Exchanger , Plate Coolers Heat Exchangers

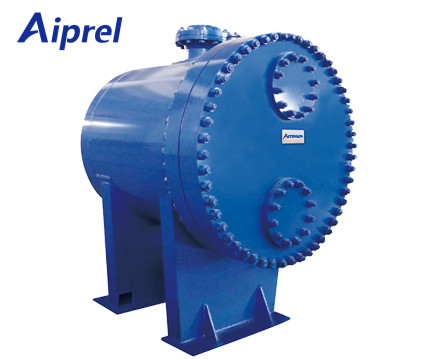

Plate And Shell Heat Exchanger

Plate and Shell Heat Exchanger is designed as a performance upgrade over shell & tube heat exchanger and welded, brazed plate heat exchangers. This heat exchanger type supplies high thermal performance with compact size, similar to that of gasketed plate heat exchangers, with low hold-up volume and low installed weight, especially when filled. But it can be applied well when the operation condition is high temp and high pressure to which gasketed plate heat exchangers cannot be applied.

The heart of the Plate and Shell Heat Exchanger is its heat transfer element, also called the plate core/package, composed of round or oblong chevron-type plates welded into a cassette.

What are the advantages of Plate and Shell Heat Exchanger?

• High heat transfer & Low fouling
• Compact structure & No gasket
• High pressure & High temperature
• Small terminal temperature difference & Low pressure drop

• Introduction to sheet material and application:

  material	application
  SUS304 / SUS316L	Purified water, river water, food oil, mineral oil
  Titanium / Pal ladium	Sea water, salt water, salinized substance
  Hadtelloy Alloy / C-276	Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
  Ni / Nickel	High temperature and high concentration caustic soda

•

• Introduction of plate heat exchanger manufacturer:



  Aiprel specializes in heat exchangers, heat exchangers accessories, manufacturing, sales, and service.
  We are a genuine original PHE manufacturer with all components are produced in our own factory and complete end products.
  We passed the ISO9001: 2000 Quality System Certification, ISO14001: 2004 Environmental System Quality Certification. Our registered capital is 50.00 million, and annual revenue of over RMB 200 million.

  With all the manufacturing plants together of over 100,000 square meters, producing over 20,000 heat exchangers and milloins heat exchanger accessories, making us one of the world's largest heat exchange equipment and accessories manufacturers.

  We can also produce replacement parts specific for various brand products. The replacement gaskets and plates are suitable for ALFA, GEA, APV, Viacrb, Sondex, SWEP, Funke, Hisaka, Sigma, Accessen, etc . In 2012, Aiprel established its heat exchanger service center to carry out maintenance of plate heat exchangers, chemical cleaning, test, renovation and other services. Besides, Aiprel is deploying global service network to become a global heat exchanger service expert and respond customers at any time anywhere.
