| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO9001 |
| Model Number: | S62 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5,000 Units Per Month |
| Product Name: | GC26 Heat Exchanger Gasket | Application: | PHE Equipments |
|---|---|---|---|
| Warranty: | 1 Year | Plate Material: | Titanium,SS304,316L,254SMO,Ni |
| Plate Thickness: | 0.5mm To 0.7mm | Max Pressure: | 2MPa (20 Bar) |
| Medium: | Purity Medium,oil,gas,air,water |

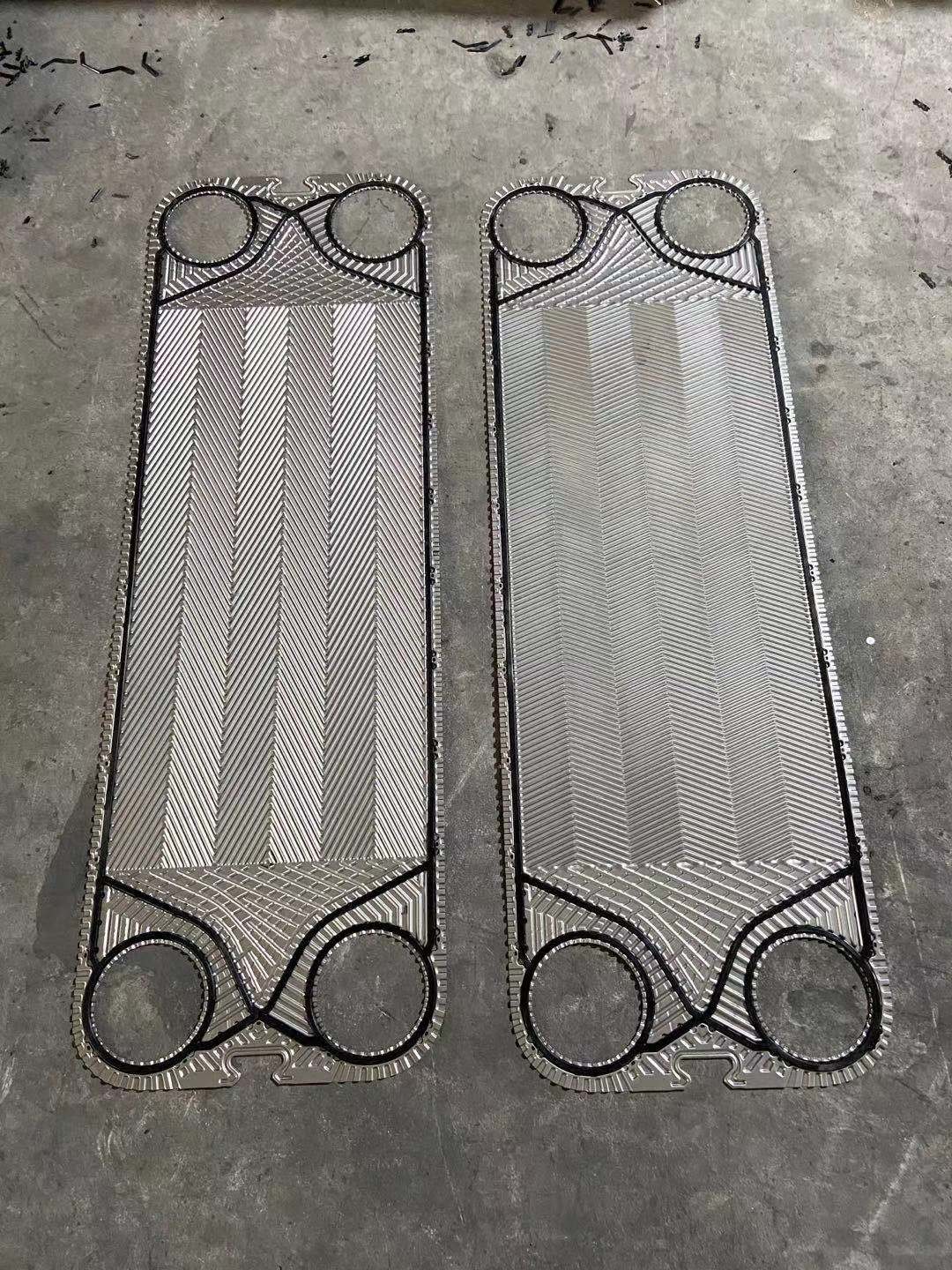

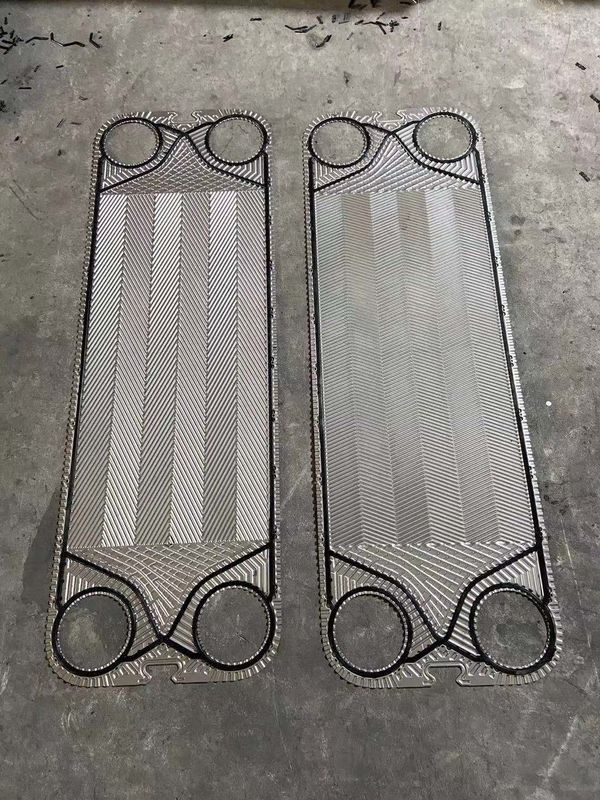

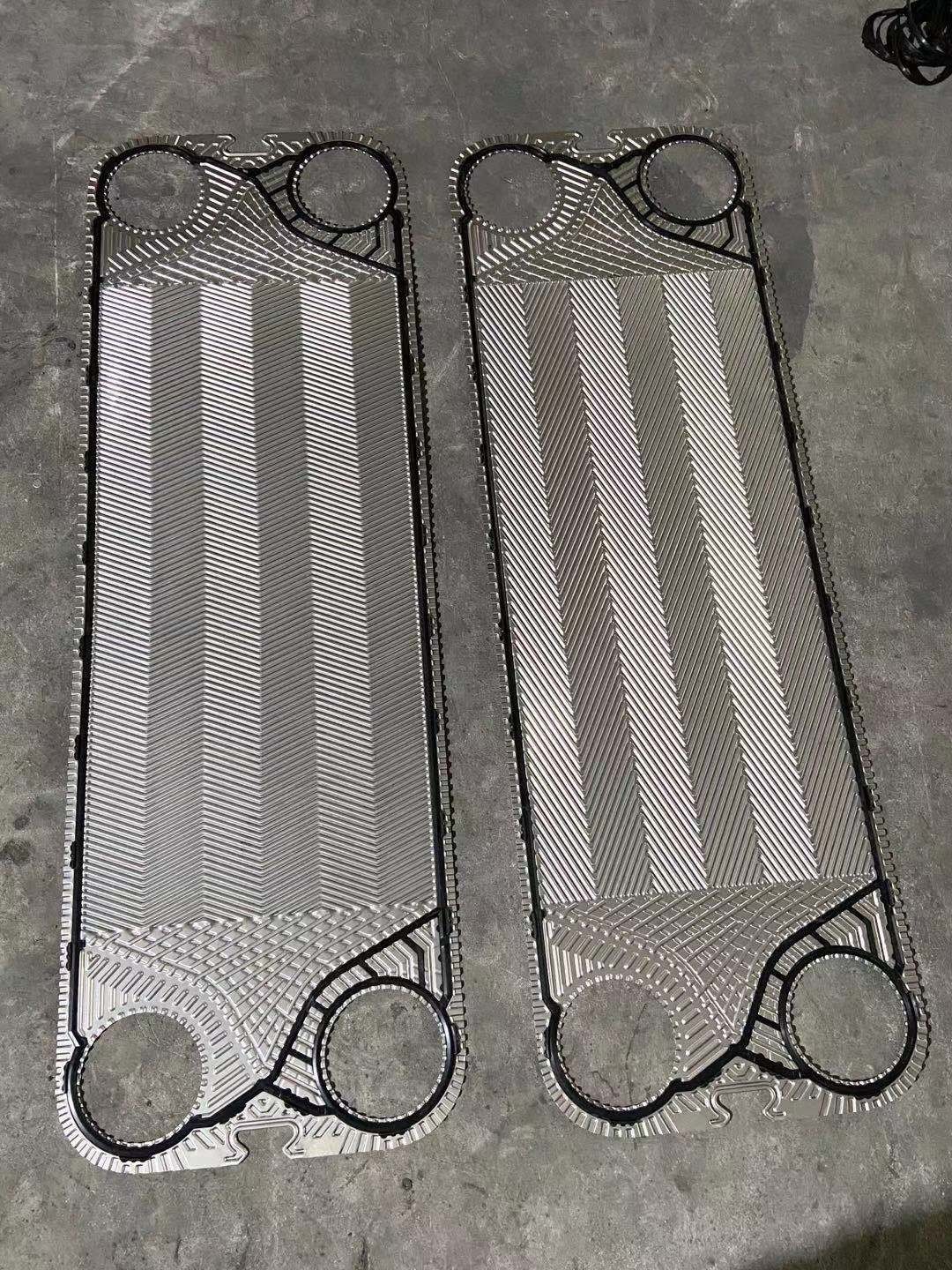

S62 Heat Exchanger Gasket and Plate
S62 Heat Exchanger Gasket and Plate Application:
The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
S62 Heat Exchanger Gasket and Plate Specifications:
| PLATE MATERIAL | SS304, SS316, 254SMO, 904L, C276, Titanium, Nickel, Incoloy825 |
| PLATE THICKNESS | 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm |
| GASKET MTERIAL | EPDM, NBR, HNBER, HEPDM,FKW |
| GASKET ASSEMBLY | Clip on, Lock in, fasten, Glued |
| FRAME MATERIAL | Carbon steel, Stainless steel, Stainless steel coat |
| NOZZLE | Flange, Rubber insert, Metal insert, Thread, Clamp |
| CONNECTION SIZE | DN15~DN500 |
| CONNECTION STANDARD | Custiomized |
| COLOR | Custiomized |
| APPLICATION | HVAC, Power, Suger, Marine, Chemical, etc |
Due to the uncertainty of heat exchanger selection and design, the price displayed is a range. For details, please contact customer service. If you do not communicate in the previous period, the customer service cannot accept it.
Introduction of plate heat exchanger manufacturer:
Comparing to other other types of heat exchanger, plate heat exchangers have larger surface area. They are composed of a number of thin metal plates compressed together. Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid. Different materials have different channels and in their respective flow path alternately. They won't leak to the outside. The number of the heat transfer plate is determined according to the amount of fluid, physical properties of fluid,the pressure drop and thermal condition. Each plate is corrugated to increase the maximum heat transfer area.
With all the manufacturing plants together of over 100,000 square meters, producing over 20,000 heat exchangers and milloins heat exchanger accessories, making us one of the world's largest heat exchange equipment and accessories manufacturers.
heat exchanger gaskets
FAQs
1. Are you a factory or trader?
We have been producing evaporater and condesation ,plate heat exchaner ,plate(tube) heat exchanger units etc for twelve years ,as same time ,we can purchase related products and facilities for you too.
2.How will the goods be delivered?
Shipping by sea,by air,by international express like TNT,DHL,UPS,etc FOB ,CIF ,... ,We have wholly-owned international logistics co.,Ltd ,with NVOCC qualification,welcome your inquiry !
3.How about the payment terms?
ou can pay money by T/T L/C. in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
4. Is there after-sales service of your products?
Yes. If you hve any problem about the products, please just at ease and contact us at any time.
