| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | ISO9001 |
| Model Number: | APV n25 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5,000 Units Per week |
| Warranty: | 1 Year | Maximum Working Pressure: | 2.0 Mpa |
|---|---|---|---|
| Structure: | Plate Heat Exchanger | Condition: | New |
| Application: | Heating Or Cooling,Heat Transfer,HVAC,Refrigeration Parts,Heater Parts | Type: | Plate Heat Exchanger Spare Parts |
| Gasket Material: | EPDM,HNBR,FKM,NBR EPDM FKM |

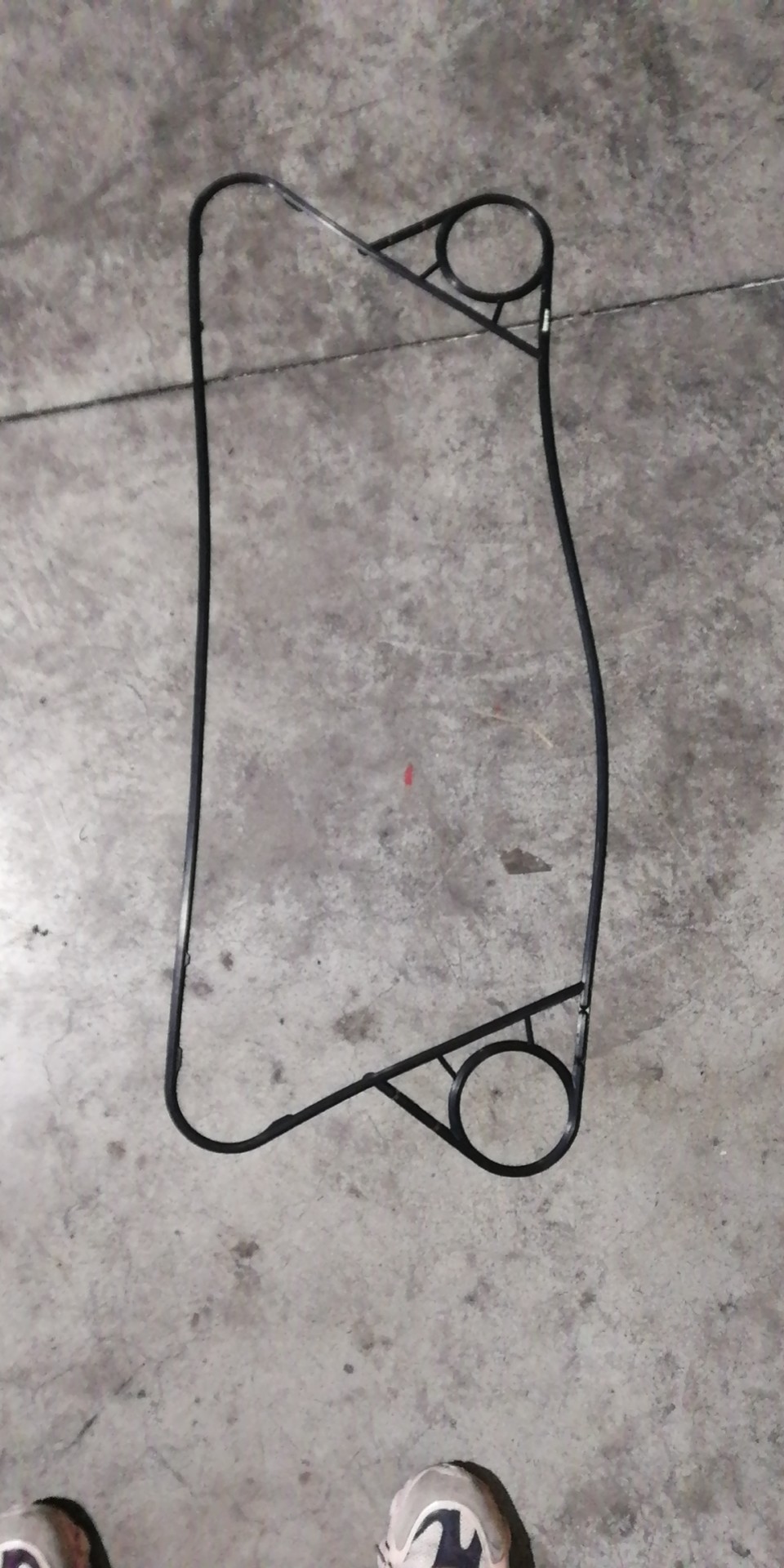

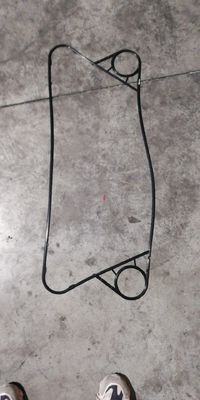

N25 Heat Exchanger Gasket Product Description
Every plate is equipped with gasket,restrict the flow of media within the plate group.
The gasket is designed as a double seal structure and has Signal hole.If the media leak,
It can early find and solve the question, don't lead to a mixture of two media.
N25 Heat Exchanger Gasket Advantages
a. provide all kinds of material and type gaskets.
b. quality high, price low, delivery fast,service good.
c. large stock:We keep sizable inventory of gaskets & plates for regular makes and models.
d. technical service: technical consultation, equipment update, capacity expansion scheme,
maintenance and cleaning of the equipment.
e. ISO9001 & ISO14001
f. strict quality control systems: thickness/length/width measuring for gasket.
Material and operating conditions of gasket:
| Material | Application | working temperature |
| NBR | Water, sea water, mineral oil, salt water | -15—130℃ |
| HNBR | High temperature mineral oil, high temperature water | 15—140℃ |
| EPDM | Water,Hot water, steam, acid, alkali | -25—150℃ |
| Viton／Fluorine Rubber | Strong acid, strong alkali, mineral oil, grease and fuel oil, etc | 5—200℃ |
| NEOPRENE | Acid, alkali, mineral oil, low molecular weight aliphatic hydrocarbon | 35—130℃ |
| Silicon Rubber | High temperature and some corrosive environments | 65—200℃ |
Introduction of plate heat exchanger manufacturer:
FAQS
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
