| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | AIPREL |
| Certification: | CE,CCS,DNV,ISO |
| Model Number: | Plate Type Condenser |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Carton |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Maximum Working Pressure: | 1.6Mpa | After-sales Service Provided: | Online Support,Video Technical Support |
| Application: | Refrigeration Parts,pharmaceutical,Heat Transfer,Power,HVAC | Plate Material: | Hastelloy,C276,Titanium Nickel,254SMO,ss304,ss316 |
| High Light: | plate heat exchanger condenser,plate frame heat exchanger |
||

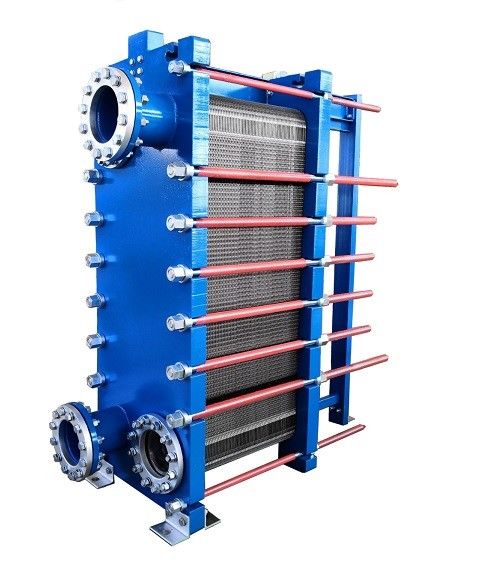

Plate Type Condenser with Titanium plate for Sea Water Treatment 1.6Mpa Press
Features of Plate Heat Exchanger
1. High heat transfer coefficient: The plate material we use is stainless acid resistant steel, commercially pure titanium, carbon steel, Cobalt alloy steel, and copper.
2. Compact structure: small gap between plate, big heat exchanger.
3. Reliable and durable:Principle of double seal structure, Good sealing.
4. Easy to clean.
5. Easy to change heat changer area:Only increase or reduce several plate, it can increase or decrease heat changer area.
| Type | Plate Condenser |
| Plate Material | Ti/SS316/SS303 or OEM |
| Gasket Material | NBR/EPDM |
| Brand | GOJE |
| Application | Industrial Process |
Plate Condeer is one kind of plate heat exchanger.
The plate cooler is mainly composed of two parts: a frame and a plate. Sheets made of various materials are pressed into corrugations of various shapes by various types of abrasive tools, and angular holes are formed in the four corners of the sheets for the flow path of the medium, the sheets The periphery and the corner hole are sealed by a rubber gasket. The frame is composed of a fixed pressing plate, a movable pressing plate, upper and lower guide rods and clamping bolts. The plate cooler is used to mount the plate in a superimposed manner at a fixed pressure. Tight plate, movable pressing plate in the middle, and then clamped with clamping bolts. A thin rectangular channel is formed between the various sheets, and heat exchange is performed through the half sheets. Compared with the conventional shell-and-tube cooler, the heat transfer coefficient is much higher under the same flow resistance and pump power consumption, and there is a tendency to replace the tube cooler within the applicable range.
Design Principle
A plate condenser is a condenser developed for condensing steam based on an evaporation or distillation system under vacuum conditions. The plate condenser based on the semi-welding technique consists of special plate pack and gaskets. The cooling medium is warmed up in a channel with a gasket, and the steam is condensed in the weld channel. The steam has a large inlet and a small condensate outlet.
Recommended Applications
The plate condenser is primarily used in conjunction with a plate evaporator as a condensation of steam in an evaporation or distillation system. For example, the condensation of steam in the syrup 3-effect evaporation system, the condensation of steam in the juice 3-effect evaporation system, and the condensation of steam in the multi-effect evaporation system of the ethanol concentration in the ethanol industry, and the like. The plate condenser is used in more and more condensation occasions due to its high heat exchange effect, low input cost and convenient maintenance operation.
What are the advantages of plate condenser?
1. High efficiency and energy saving: 3 to 5 times higher than the heat efficiency of the shell-and-tube heat exchanger.
2, compact structure: plate heat exchanger plates are closely arranged, compared with other heat exchanger types, the plate heat exchanger has less floor space and space.
3. Easy to clean and disassemble: The plate heat exchanger clamps the clamping plate by clamping bolts, so it is convenient to disassemble and assemble.
4, long service life: plate heat exchanger is made of stainless steel or titanium alloy plate, can resist a variety of corrosive media, rubber pads can be replaced at will, and can be easily installed, disassembled and repaired.
5. Adaptability: The plate heat exchanger plate is an independent component, which can be increased or decreased according to requirements, and has various forms; it can be applied to various requirements of different processes.
